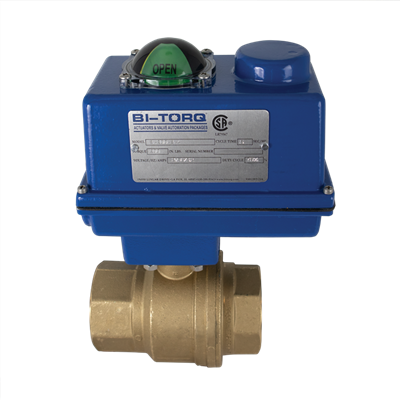

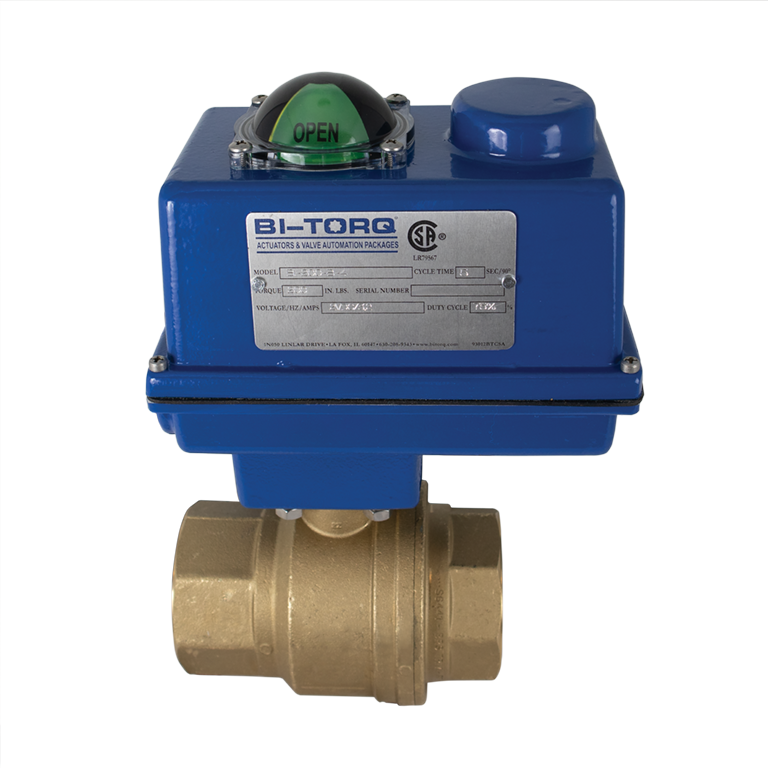

IP-2P (2 Piece Brass) Electric Actuator Ball Valves

Description

Valve Features

• Full port design brass valve

• Optional SS ball up to 2”

• 1/4” through 4” NPT size range

• TFE® seats and seals

• Viton® body o-rings

• Vacuum to 29 inHg

• Blow-out proof stem

• CE rated

• ISO mounting pad

Pressure Rating

• 600 PSI CWP

Temperature Rating

• +297°F Maximum

Electric Features

• 120VAC, 220VAC, 24VAC, 12VDC and 24VDC

• NEMA 4, 4X and 7 housings

• Manual overrides

• Visual indicators

• Open/close or modulating service
