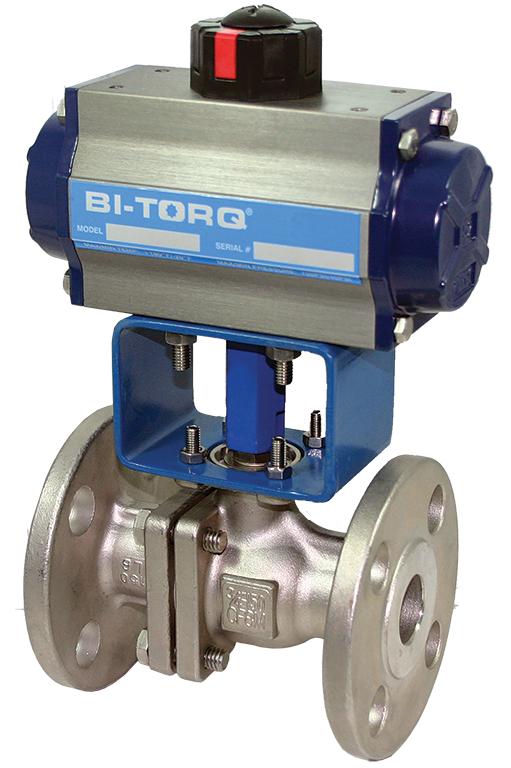

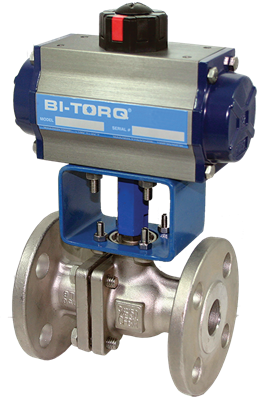

IS-2PF (150# Flanged) Pneumatic Actuator Ball Valves

Description

Valve Features

• Full port stainless steel ball valve

• 1/2” through 4”

• Class 150# flanged ends

• Designed to ANSI B16.34 standards

• RTFE® seats

• Optional fire safe design (w/graphoil seals)

• ISO mounting pad

• Vacuum to 29 inHg

Pressure Rating

• ANSI Class 150

Temperature Rating

• +400° F Maximum

• -20° F Minimum

Pneumatic Features

• Rack and pinion design

• NAMUR accessory mounting

• Spring return and double acting

• Visual indicators

• Optional SS construction
