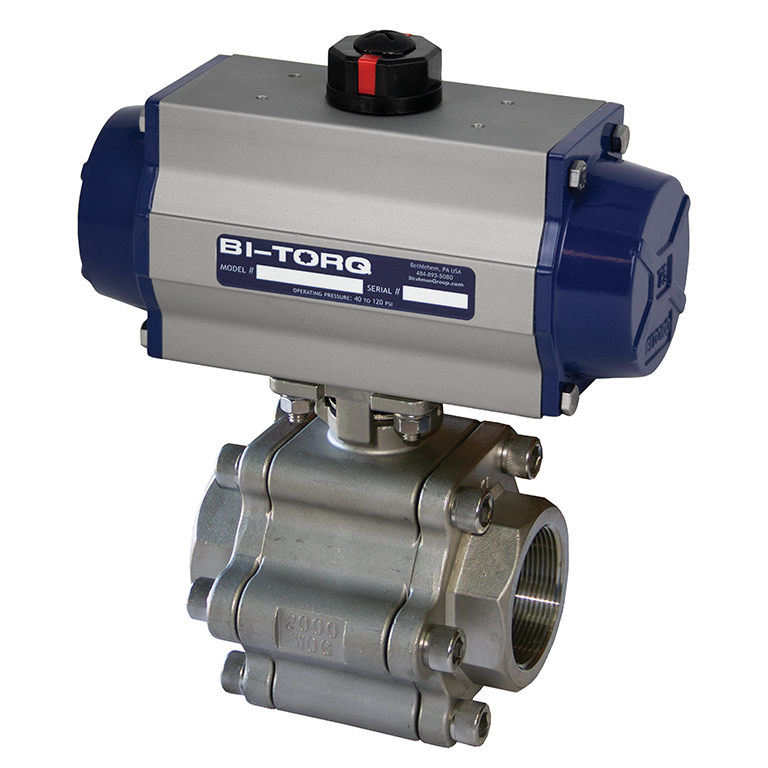

FS-3PT (SS Fire Safe) Pneumatic Actuator Ball Valves

Description

Valve Features

• Full port 3-pc SS(FS) valve

• 1/4” through 2” size range

• NPT, socket weld ends

• RTFE® seats with graphoil seals

• Enclosed body bolts for extreme service

• ISO mounting pad

• API 607 4th editon fire safe

Pressure Rating

• 2000 PSI CWP

Temperature Rating

• +350°F Maximum

• -4°F Minimum

Pneumatic Features

• Rack and pinion design

• NAMUR accessory mounting

• Spring return and double acting

• Visual indicators

• Optional SS construction
