Line Blinds
Line blinds are safety devices designed for positive shut-off of piping, equipment or storage tanks where positive shut-off is defined as a device in a closed, drop-tight, verifiable, and maintainable position. This positive shut-off feature makes line blinds perfectly attuned for permanent or long-term piping system isolation and shutdown.
Advantages of Line Blinds
- Quickly isolates lines compared to spectacle blinds
- Saves money on labor and equipment when isolating systems
- Zero-leakage compared to some isolation valves
Quick Action Line Blinds Save Time and Money
Strahman Line Blinds
Strahman’s AMERICAN MADE line blinds come in a variety of configurations and are customizable to meet just about any application.
Product Options
- Cryogenic series
- Large size range (1/2” through 48” is standard, but we can customize up to 52")
- Body materials (CS and SS are standard)
- ANSI flanged, Butt-welded or DIN flanged end connections
- Variety of seals
- Automated models
- Non-spill style
- Position feedback

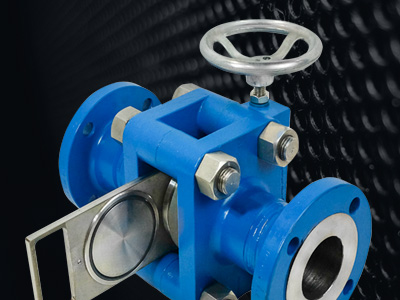

760 and 740 series (non-spreading design)
Non-spreading line blinds use a cam system to create space between the body flanges for the spectacle plate to slide or rotate into position and seal.
Features
- Safe and effortless operation with manually or with handwheel
- No pipe stress as the spectacle plate moves into position
- No pipe sag or misalignment from spreading
- Single person operation
700 series (spreading design)
The original design for line blinds. Depending on the size, 3 to 7 jack bolts are turned to create space, spread the pipe, and rotate the spectacle plate into position.
Features
- No tools needed for operation
- Cost-effective design
- Excellent for high pressure/extreme temperature applications
- Single person operation
Quick Ship Program
Strahman is committed to exceeding the needs of its customers. One of those needs is being able to provide a product quickly. Strahman now has a new program to meet that need - a 10 day Quick Ship Program for its 760 series sliding line blinds.
Any combination of the following are available to ship within 10 working days:
- 1” through 6” 760 Line Blinds
- 150#, 300#, or Schedule 80 butt weld end connections
- Viton, EDPM, or FEP seals
- Carbon steel or stainless steel bodies
Line Blind Literature
Common Line Blind Applications
- Petrochemical
- Food & Beverage
- Pulp & Paper
- Mining
- Shipping
- Plastics
