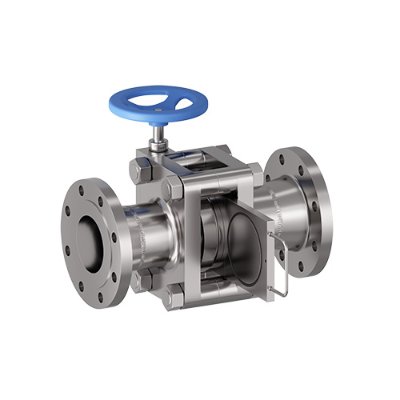

760 Series - Sliding & Non-Spreading

Description

Non-Spreading Line Blind

Our 760 series Line Blind uses a cam system to create space between the body flanges for the spectacle plate to slide or rotate into position and seal.

Features

• Handwheel operation

• No pipe stress as the spectacle plate moves into position

• No pipe sag or misalignment from spreading

• Single person operation

Industries

• Petrochemical

• Pulp & Paper

• Mining

• Shipping

• Plastics

Size

• 1/2" through 84" NPS

Pressure Rating

• ASME Class 150 to Class 1500

• Other pressure classes up to ASME 2500 are available upon request

Strahman serves a wide variety of industries and process applications, and we understand there are needs for custom designs to fit in custom applications. Contact Us and we would be happy to work with you on a custom design to meet your specific requirements.

Quick Action Line Blinds Save Time and Money

Strahman’s AMERICAN MADE line blinds come in a variety of configurations and are customizable to meet just about any application.
