BI-Series Electric Actuators

BI-TORQ® Electric Actuators provide a heavy-duty option for valves with torque requirements from 100 through 3800 inch-pounds. Fully adjustable limit switches allow for fine control of on-off positions. Options for NEMA 4, 4X, and 7 enclosures provide flexibility for a variety of environments and applications. We can offer a complete automated assembly of our ball valves and butterfly valves, or retrofit onto a customer-owned existing valve with our customized mounting hardware.

• Available in 115V AC, 230V AC, 24V AC, 12V DC, and 24V DC voltages for modulating performance (4-20 mA control or on-off service)
• ISO mounting and a double-star output shaft allow direct mounting to a variety of valves
• Heavy-duty gear train motor with permanent lubrication
• Motor has thermal overload protection
• Standard NEMA 4 enclosure with options for NEMA 4X and NEMA 7
• Optional heater and thermostat for the prevention of moisture in low-temperature or high-humidity environments
• Standard on-off SPDT limit switches for fine-tuning of on-off positions
• Dry contact auxiliary switches are available for remote indication
• Large inventory for quick ship on many models
• Limit switches, modulating positioners, timers, and many other custom options are available
• Available as part of a complete automated valve package or as a retrofit to existing valves in the field with our customized mounting hardware

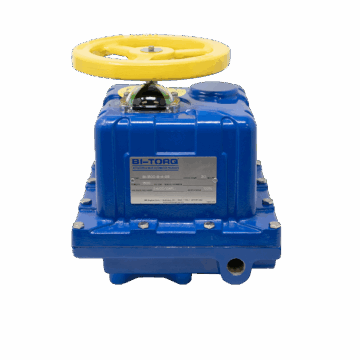

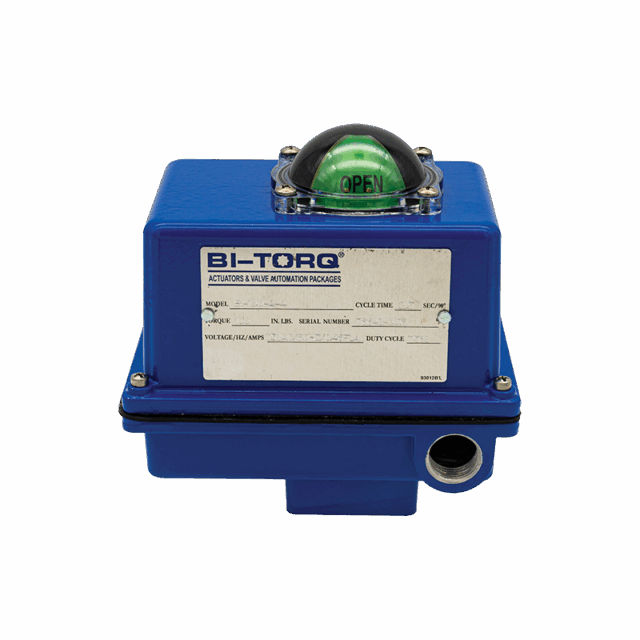

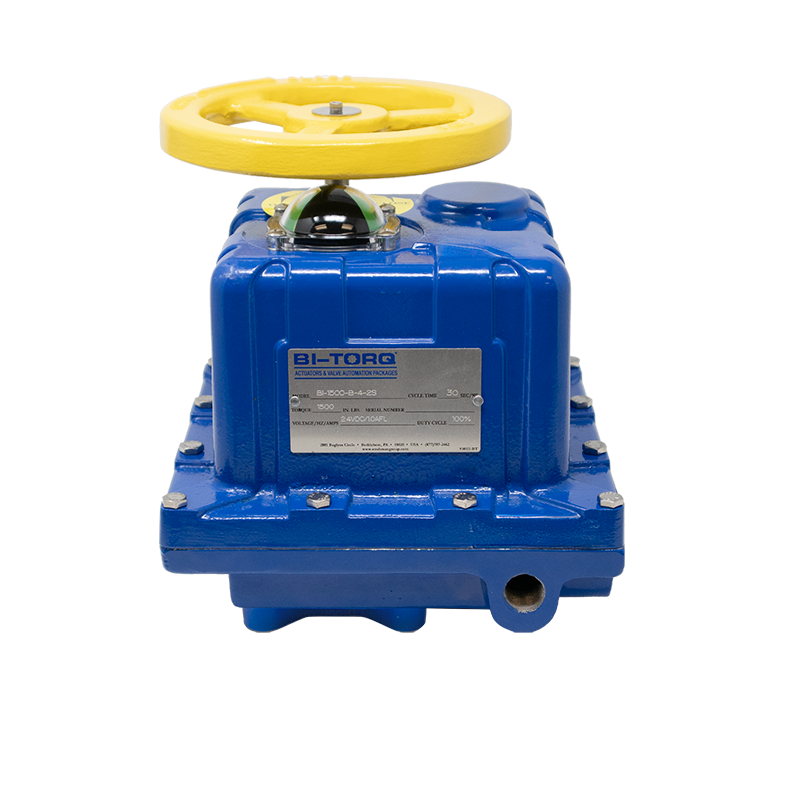

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the unit you receive may differ slightly depending on the actuator you select. Please refer to the data sheets for dimensions and technical drawings.
