Double Dump Airlock

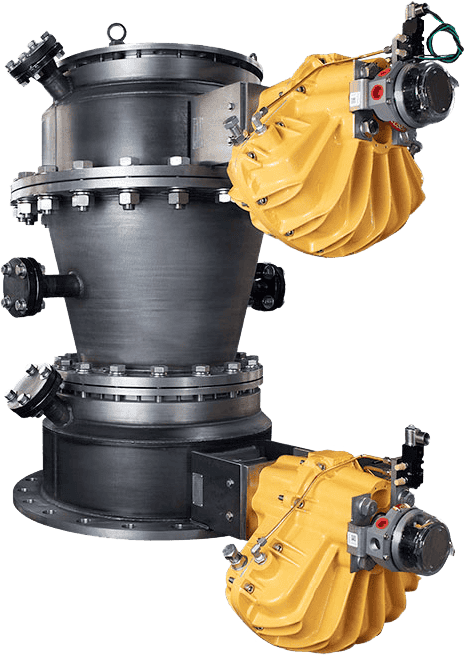

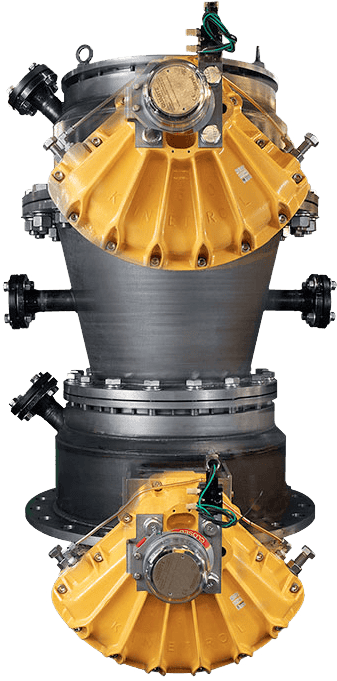

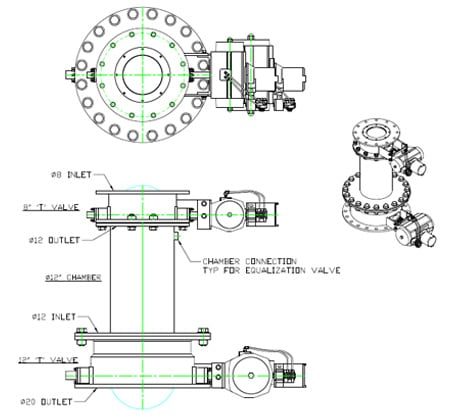

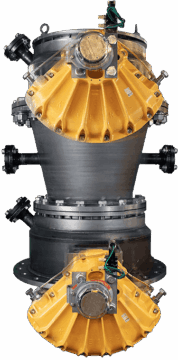

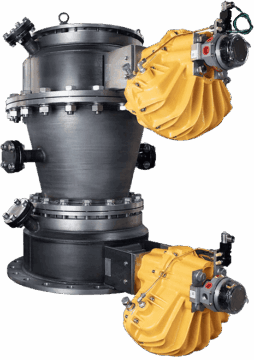

GEMCO Double Dump or Airlocks are designed to control the flow of material between two atmospheres. Consisting of two Gemco Valves (P21, T Heavy-Duty Valve, TLD Lightweight Valve, or Sani K) connected by an intermediate chamber, they are often used instead of rotary feeders, which are prone to high maintenance and to material and gas leakage. Normal cycling ranges from 1 to 3 times per minute. Slower cycling is possible, and nominal material flows of one-half to ten cubic feet per cycle are available. Chamber purge, sight glasses, clean-out ports, and automatic cycling controls are among the custom engineering options available.

Product Features

• Engineered for the most demanding applications in general chemical, pharmaceutical, and most solids processing industries
• Heavy-duty applications including handling sand and gravel, metal powder, ceramics, and other challenging bulk solids
• Designed for 10 bar and full vacuum

Specifications depending on base model

• Materials of construction: Stainless Steel, Carbon Steel, and other weldable alloys
• Hi temp 200°C to 500°C
• Configured with a solid reinforced Teflon (RPTFE) or metal seats

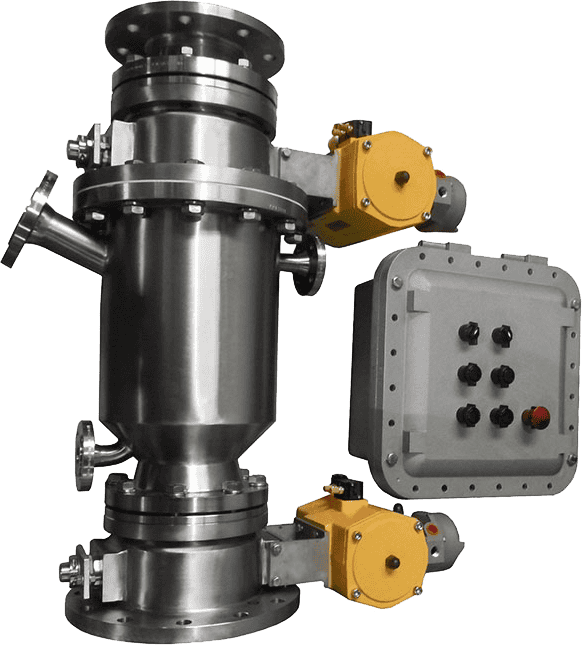

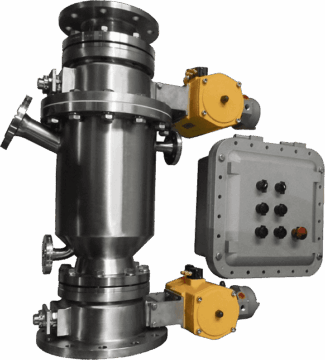

• Options include the full range of sanitary finishes and clean-in-place spray balls or nozzles

Applications:

• Continuous Vacuum dryers
• Thin Film Evaporators (TFE)
• High Temperature Reactors

Gemco Valves are made in the USA
