Steam & Cold Water


Steam and Cold Water Mixing Unit Hose Stations

Our steam and cold water mixing unit hose stations produce instant hot water with a steam supply. There are two materials of construction for the bodies of our steam and cold water mixing units–bronze and stainless steel. Each body type has our dial temperature gauge (TG) for exact temperature indications. A significant design feature that prevents steam from accidentally exiting the unit is the unit’s ability to automatically shut off the steam supply if the cold-water supply dips below 50 PSI.

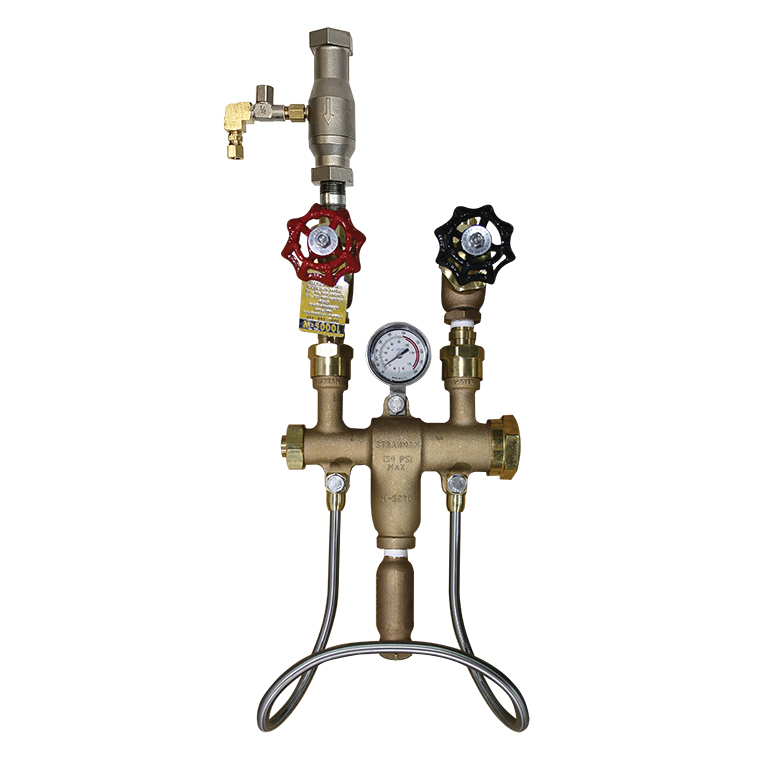

The Strahman M-5000TG Bronze Steam and Cold Water Mixing Unit Hose Station and the Strahman M-5700TG Stainless Steel Steam and Cold Water Mixing Unit produce instant hot water from a steady supply of steam and cold water. The washdown station also features a specially designed blending chamber to thoroughly, evenly mixes the steam and cold water, and comes in three pressures Low, Medium and High. In addition, the M-5000TG Series and the M-5700TG Series have a dial-type gauge that accurately indicates the wash water’s exact temperature. Click here for a technical bulletin.

MODEL NO.
REQUIRED STEAM PRESSURE
REQUIRED WATER PRESSURE
UNIT GPM
M-5000L/M-5700L
80-95 PSI
50-80 PSI
5-7
M-5000M/M5700M
96-130 PSI
50-80 PSI
4-1/2 - 6
M-5000H/M-5700H
131-150 PSI
50-80 PSI
4-1/2 - 6

The Strahman M-5144TG HE is a high-efficiency steam and cold water mixing station modeled after the standard M-5000TG mixing station. This high-efficiency model is a low-pressure system ideal for industrial wash down where varying water pressures throughout a plant exist and a desire for a broader range of adjustable pressure or where a low flow nozzle is preferred.

MODEL NO.
REQUIRED STEAM PRESSURE
REQUIRED WATER PRESSURE
UNIT GPM
M-5144TGHE
80-150PSI
40-80 PSI
3-1/4 - 6

The Strahman M-144TG Bronze Safety Mixing Unit will blend steam and cold water in any desired proportion. It is user-adjustable with a factory-set maximum temperature and features a safety shut-off that prevents the passing of live steam. The unit also features a specially designed blending chamber to thoroughly and evenly mix the steam and cold water. The M-144TG Series has a dial-type gauge that accurately indicates the wash water’s exact temperature.

MODEL NO.
REQUIRED STEAM PRESSURE
REQUIRED WATER PRESSURE
UNIT GPM
M-144TG
20-80 PSI
20-80 PSI
3-1/4 - 6

The Strahman M-5000TS is a Thermostatically Controlled Bronze Steam and Cold Water Mixing Unit Hose Station that lets you combine steam and cold water to produce hot water efficiently without the safety concerns usually associated with steam use. The unit has several important safety features allowing for a maximum water temperature of 200°F; it automatically compensates for water pressure fluctuations to maintain the desired water temperature, and the thermostatically designed safety shut-off prevents the unit from overheating.

Image of Direct Diffuse Steam TrapAll steam units include our revolutionary, patented Direct Diffuse® Steam Trap, the only in-line steam trap on the market! The Direct Diffuse® Steam Trap ensures your steam system will operate more efficiently by virtually eliminating condensate in the steam line. This innovative design, with no moving parts, will maximize your steam use efficiency.
