M-758

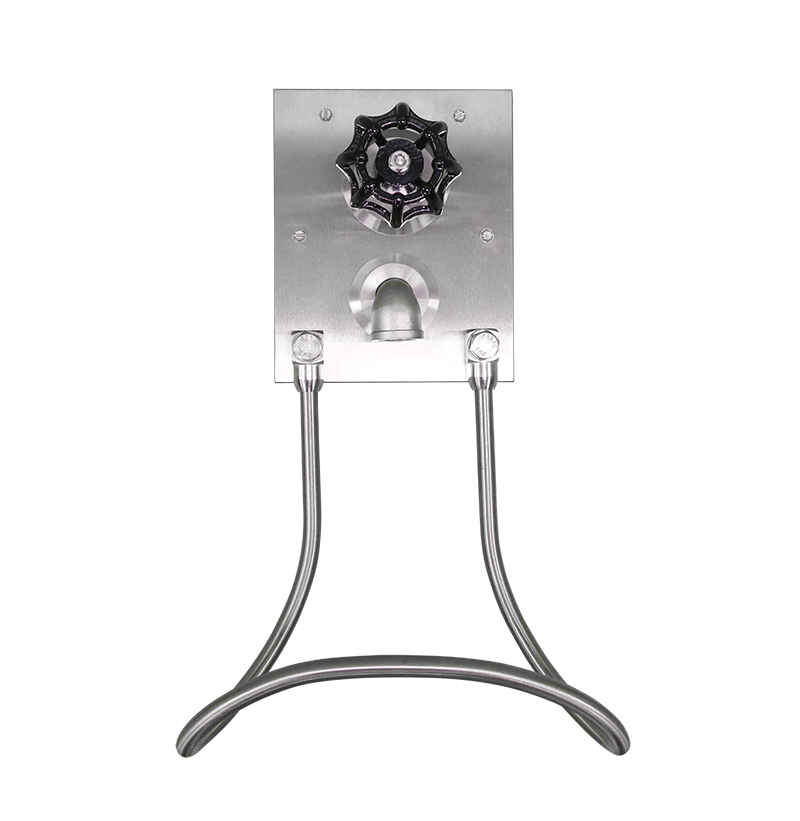

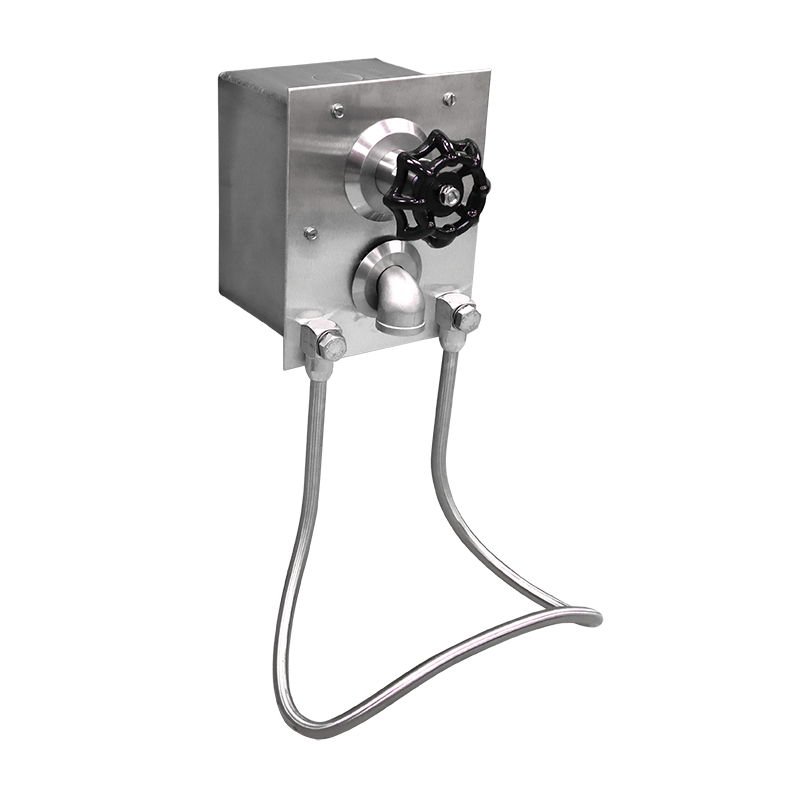

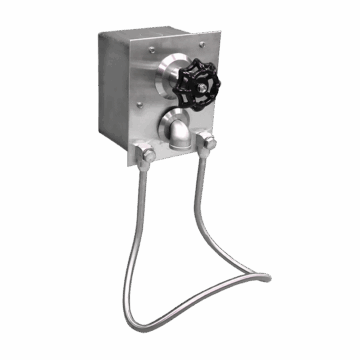

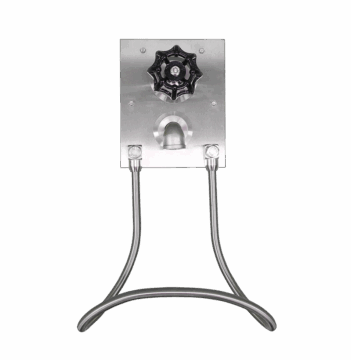

Strahman’s M-758 Stainless Steel Single-Control Valve Washdown Station is housed in a stainless steel box that conceals all piping components, including the globe valve. This compact unit is engineered for long-lasting quality and efficiency for hot or cold water use.

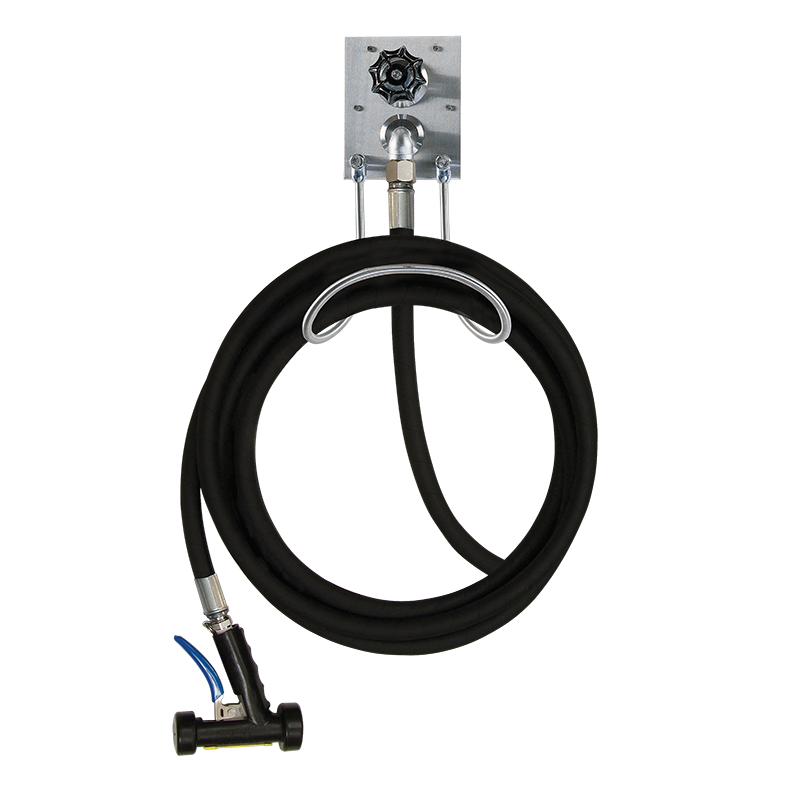

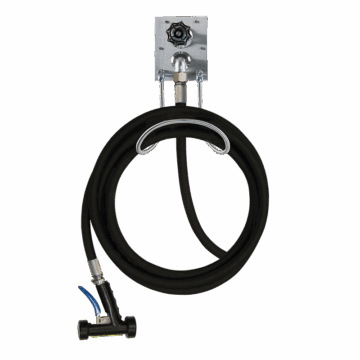

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-758TG with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.

Single-Control Valve Washdown Station Key Features

• Designed for hot or cold water
• Available with top entry or Angle “back entry” Globe Valve
• Cast-iron handwheel provides a comfortable grip

Inputs and Outputs

• Maximum Water Pressure: 150 psi
• Maximum Operating Temperature: 200º F (93ºC)

Specifications

• Material: Stainless Steel
• Connections: 3/4″ NPT
• Stainless Steel Hose Rack
• Mounting Hardware Included
• Stainless Steel Recessed Box

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on valve size. Please refer to data sheets and technical drawings for dimensions.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information, visit www.P65Warnings.ca.gov.
