Steam & Cold Water Hose Stations

Steam & Cold Water Mixing Washdown Stations

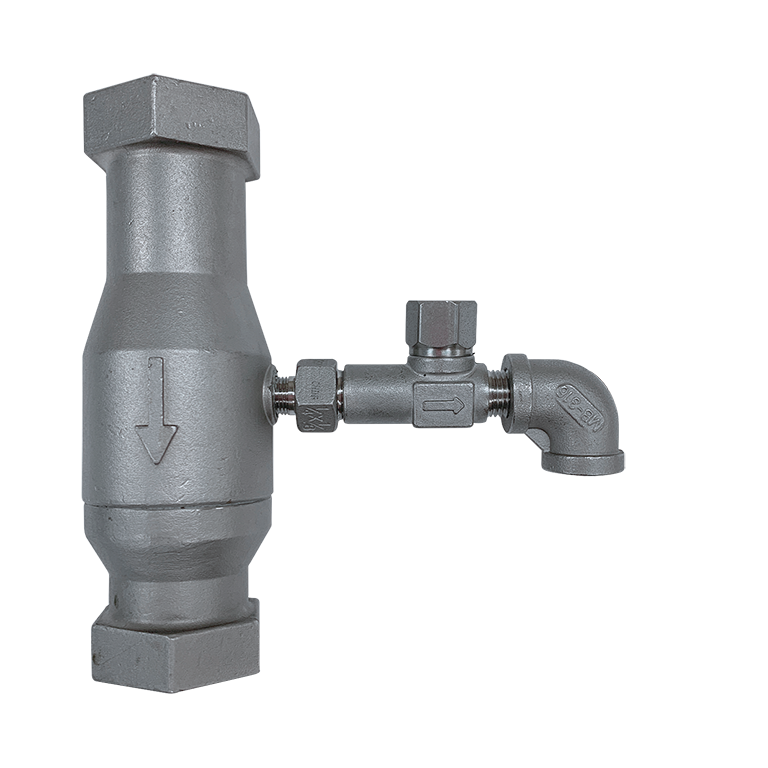

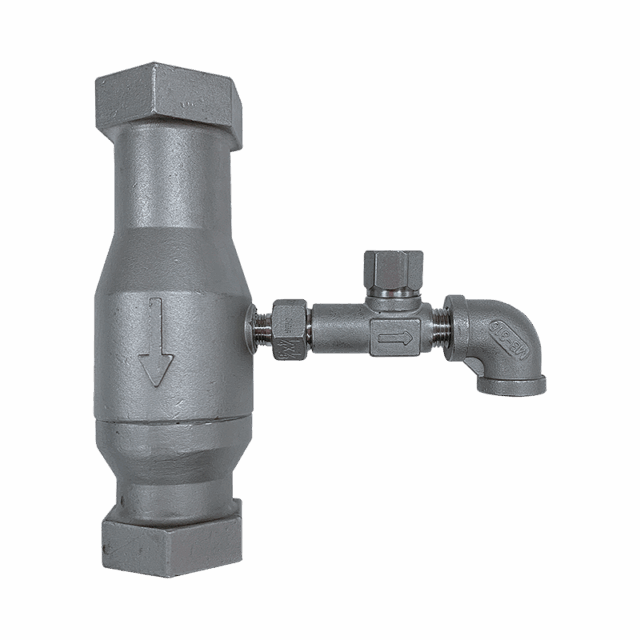

Strahman’s steam and cold water washdown stations combine advanced engineering with robust materials to meet demanding cleaning requirements. These units feature automatic steam shutoff if the cold-water supply drops, enhancing safety; a patented Direct Diffuse® Steam Trap maximizes steam efficiency and prevents contamination; and easy temperature control with a dial temperature gauge for precise adjustments.

Available Models:

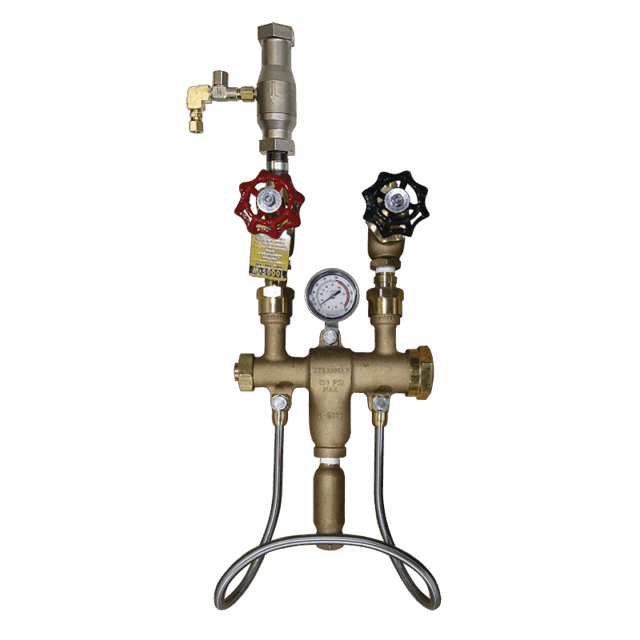

• M-5000TG: Our most reliable bronze mixing unit, designed for steam pressures from 80-150 psi. Available in three steam pressure ranges to deliver precise, consistent temperature control.

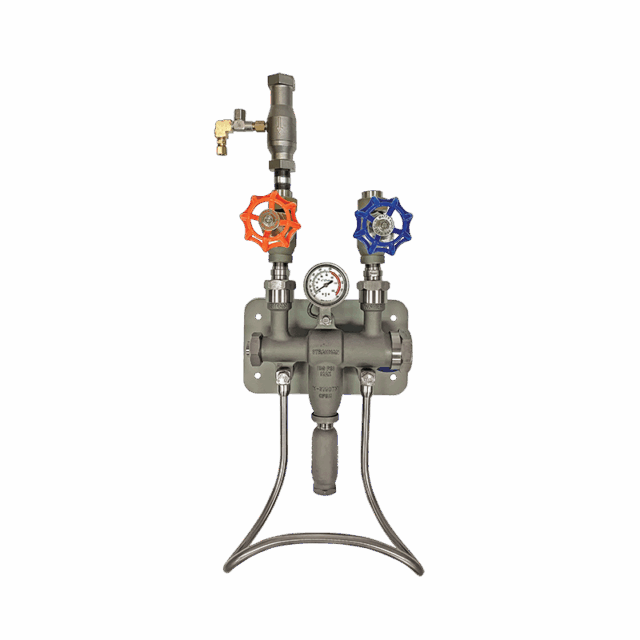

• M-5700TG: The stainless steel, lead-free version of the M-5000TG, built for applications requiring the highest sanitation standards. Handles steam pressures from 80-150 psi.

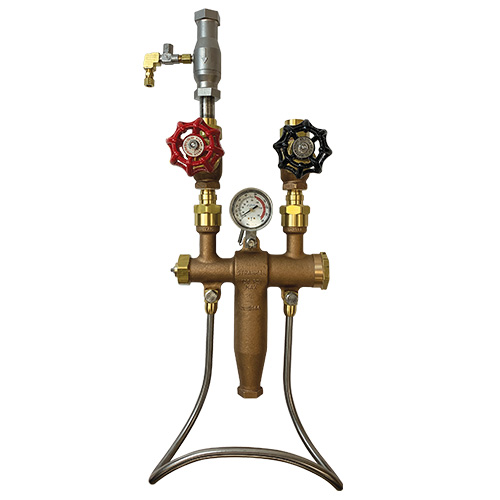

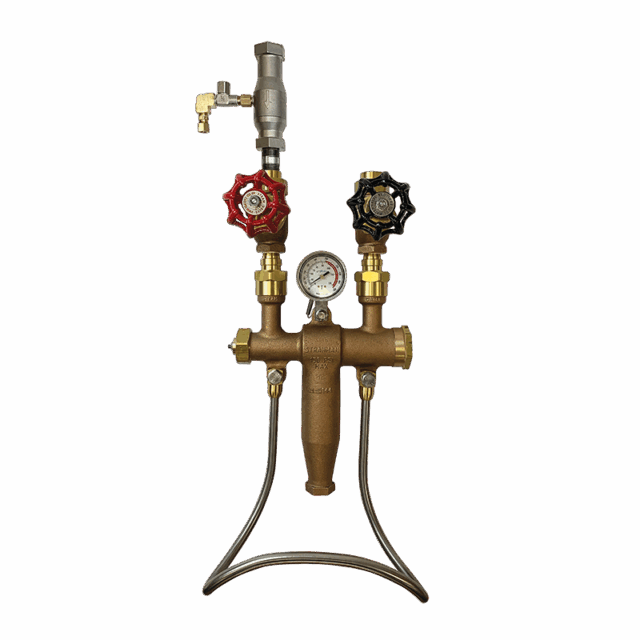

• M-5144TGHE: A high-efficiency mixing unit optimized for use with low-flow nozzles. Operates at steam pressures of 40-150 psi, making it ideal for facilities with varying water pressure or applications requiring a wider, adjustable output range.

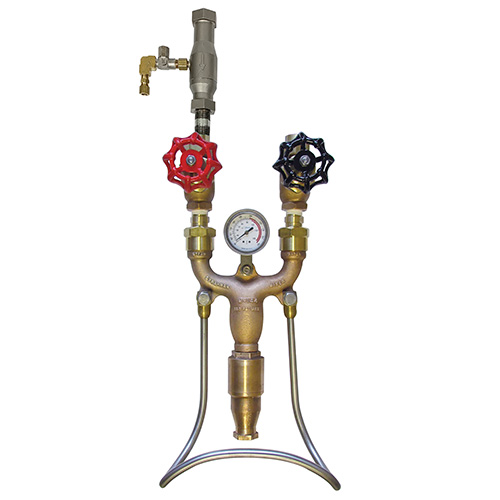

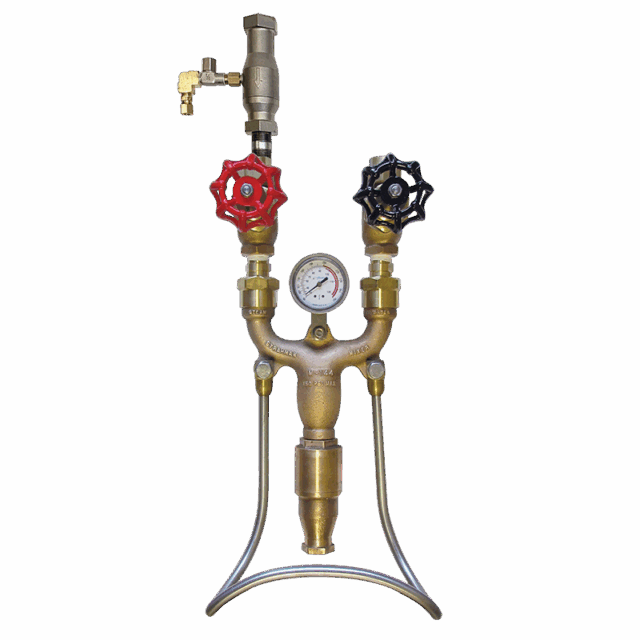

• M-144TG: A low-pressure bronze unit engineered for locations with low or fluctuating steam pressure. Designed to operate between 20-80 psi.

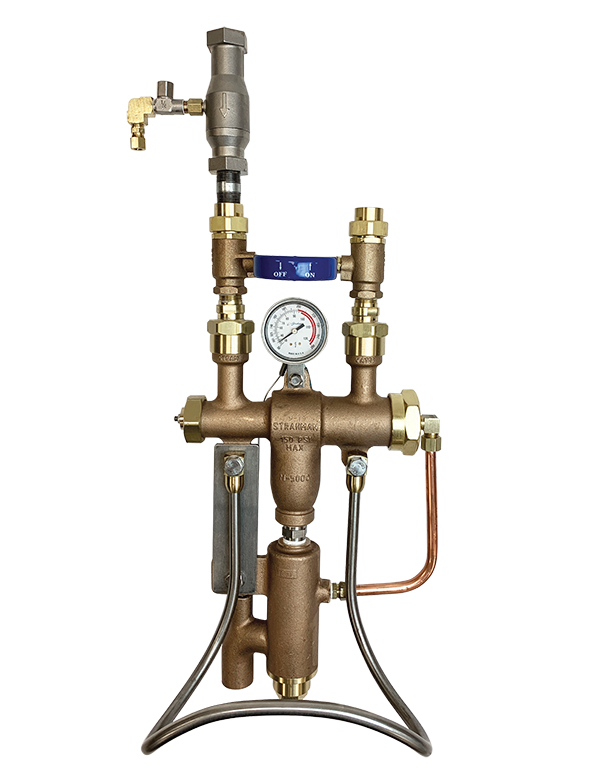

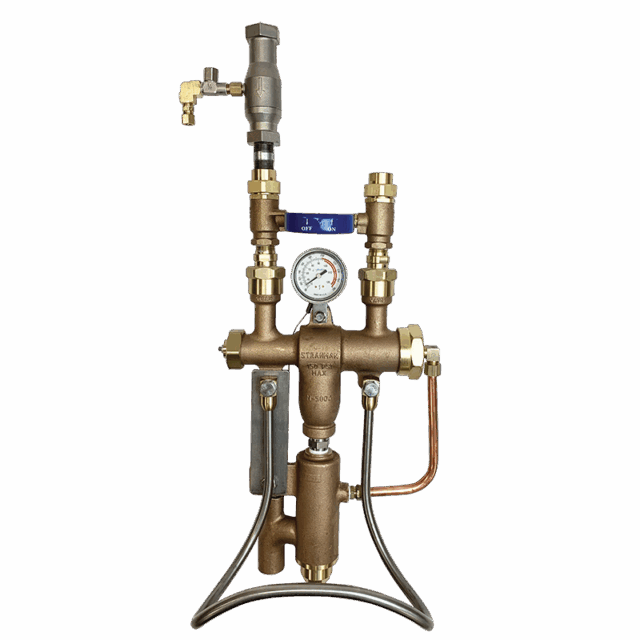

• M-5000TS: A thermostatically controlled mixing unit capable of handling steam pressures from 80-150 psi. Includes a thermostatic safety shut-off to prevent live steam from passing, ensuring safe operation across the whole pressure range.

Steam & Cold Water Mixing Washdown Stations Key Features

• The durable body is constructed from bronze or stainless steel.
• Each unit includes a dial temperature gauge (TG) for accurate temperature readings and a maximum temperature range of 200°F.
• Multiple pressure options, such as low, medium, and high, are designed to match facility needs.
• An automatic shut-off system prevents accidental steam release by stopping the steam supply if cold-water pressure falls below 50 PSI.
