BI-TORQ Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product that you can drop right into your line. This series features a 2-piece fire-safe ANSI Class 150 flanged ball valve, designed to ANSI B16.34. This is a manually operated ball valve.
Fire Safe 2 Piece Flanged Ball Valves
Valve Features
- Full port Carbon Steel or Stainless Steel
- Valve sizes range from 1/2″ to 6″ (Carbon Steel only up to 4″)
- ANSI Class 150 flanged designed to ANSI B16.34
- ISO mounting pad for easy automation
- Self-adjusting stem packing
- DIN 50049-3.1B certificate
Pressure Rating
- ANSI Class 150
Temperature Rating
- +400° F Maximum
- -20° F Minimum

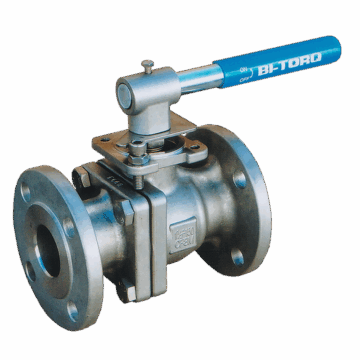

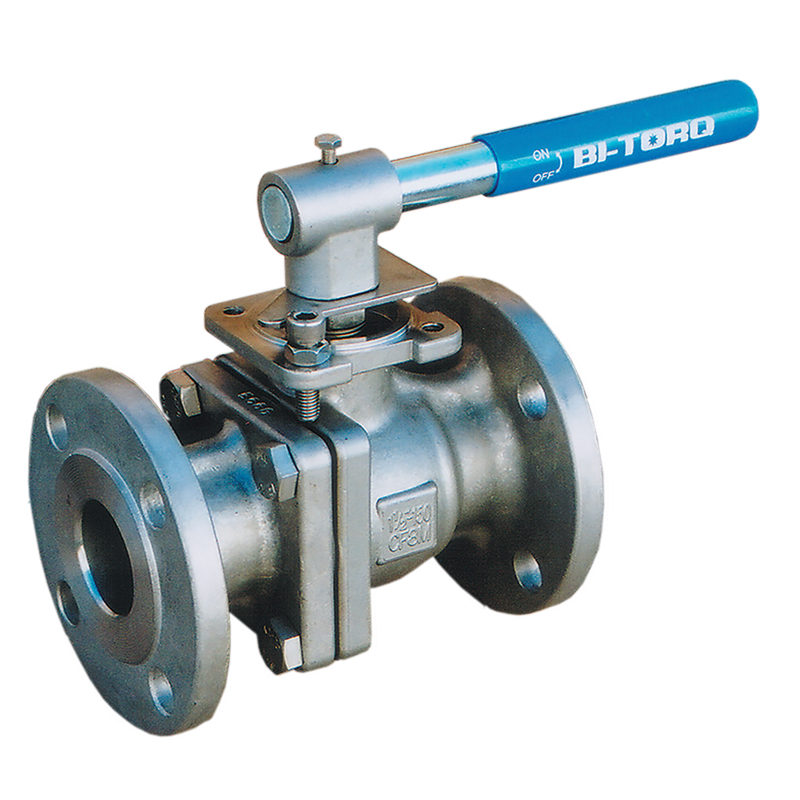

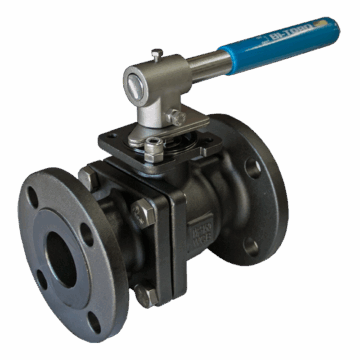

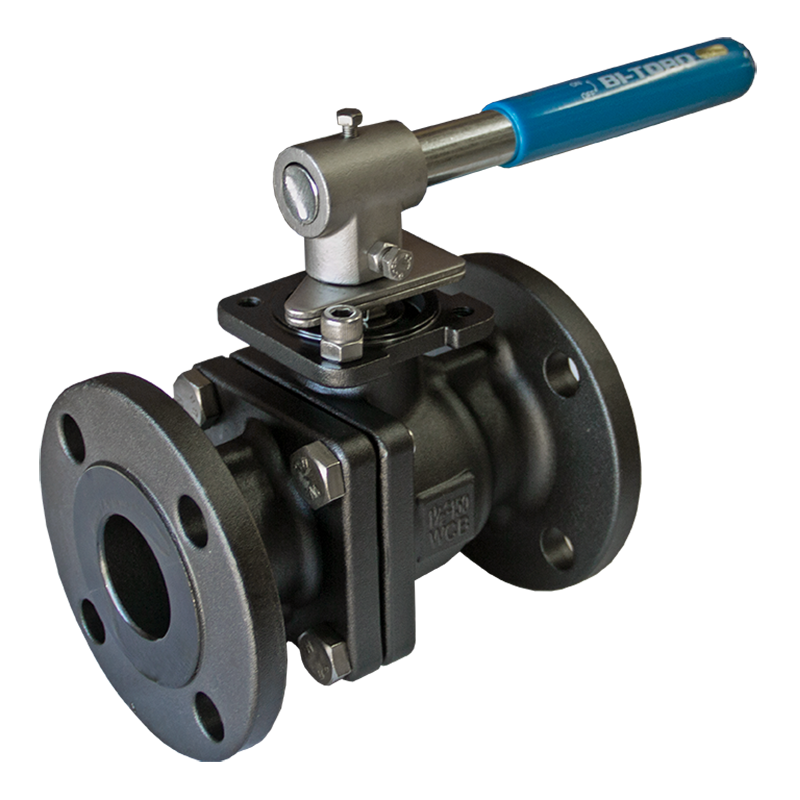

Please note that the product image shown is representative of products in this series. While we strive to be as accurate as possible, the product you receive may slightly differ in appearance depending on the valve size.
