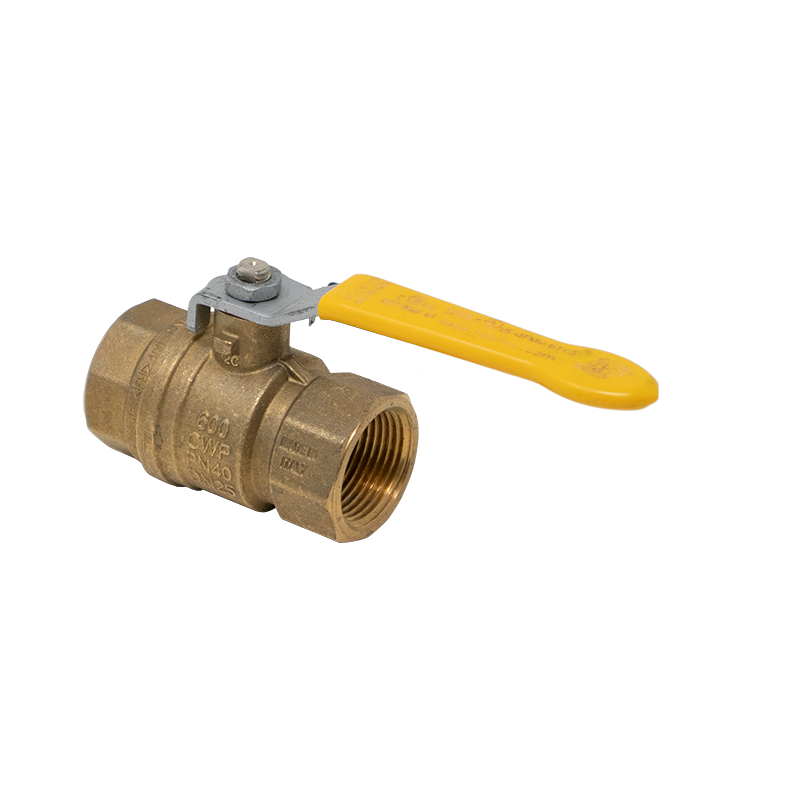

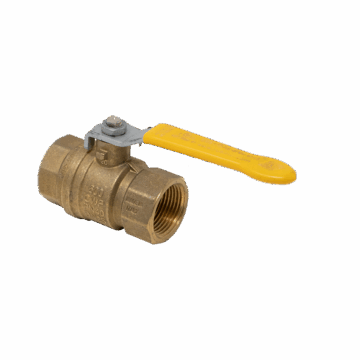

MP-2P (Brass) Ball Valves

Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings.

WARNING:  This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Product Features

Valve Features

  • Full port brass ball valve
  • 1/4” through 4” size range
  • Blow-out proof stem
  • Chrome plated brass ball
  • Adjustable stem packing
  • ANSI B 1.20.1 connections
  • CSA, UL, NSF and FM approved through 2”

Pressure Rating

  • 600 PSI CWP for valves sizes 1/2″ up to 2″
  • 450 PSi CWP for valves above 2″

Temperature Rating

  • +320° F Maximum CWP
