Thermal Shut-Off Valves with Customer Owned Valves

Maximize Protection and Performance with Thermal Shut-Off Retrofits

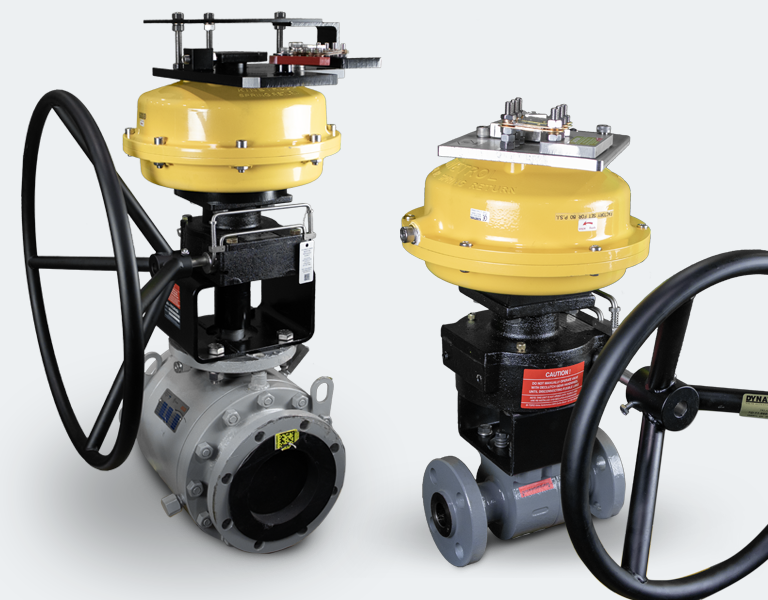

BI-TORQ offers the installation of fire-safe thermal shut-off top works with fusible link assemblies onto customer-supplied, API 607-certified valves. By integrating BI-TORQ top works onto your existing valve, you gain enhanced safety, reliability, and compliance with fire protection standards–backed by our proven manufacturing expertise.

Depending on valve size, torque, and spring pack configuration, FM approval can also be offered on the top works only of the assembled unit. Customer-supplied valves must be shipped to our Bethlehem, PA, facility for installation and testing.

Key Features and Capabilities:

Automatic thermal activation at high temperatures to prevent hazardous fluid flow
Link Yield Temperature options (see table below)
Fire-safe, industrial construction for long-lasting durability
Engineered integration with existing valve systems and plant-specified requirements
Comprehensive testing and verification to meet fire-safety and industry regulations
FM-approved actuators available for select assemblies up to 8” and torque within 3,960 in/lbs
Compatible with fire-safe certified quarter-turn ball, butterfly, and plug valves up to 21,390 in/lbs
Ask us about start-up and commissioning services for a complete turn-key solution

FL-1 LINKS	K LINKS
165º F (74º C)	165º F (74º C)
212º F (100º C)	212º F (100º C)
286º F (141º C)	280º F (138º C)
360º F (182º C)	360º F (182º C)

Key Features and Capabilities:

Experience Quality, Performance, Safety, and Superior Design
