Fusible Link Valves (FLP) – ANSI Class 150 Flanged

BI-TORQ Thermal Shutoff Ball Valves with Fusible Links (FLP Series) are a complete assembly with a class rating of API 607 Fire-Safe-certified quarter-turn valves. This series features ANSI Class 150 flanged connections with full-port ball valves available from 1/2″ through 6”. We also offer NPT or Socket Weld connections. Assemblies are available with options for fail-open or fail-closed operation. Both switches are available to show open, closed, or both. One switch is required per position needed.

BI-TORQ Thermal Shut-off Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that your valve will perform in critical situations.

Product Features

• Full FM approval on 2″ to 4″ ANSI Class 150 flanged stainless steel ball valve assemblies
• FM approval on Top Works only for all other ANSI Class 150 flanged ball valve assemblies
• Automatic shut-off in case of fire
• Weatherproof spring pack and stainless steel top plate
• Valve can be manually operated on certain models, even while armed
• Factory assembled and tested

Specifications

• Material: Fire-safe valve body in carbon steel or stainless steel
• ANSI Class 150 flanged connection
• API 607 fire-safe ball valve up to 285 PSI pressure rated

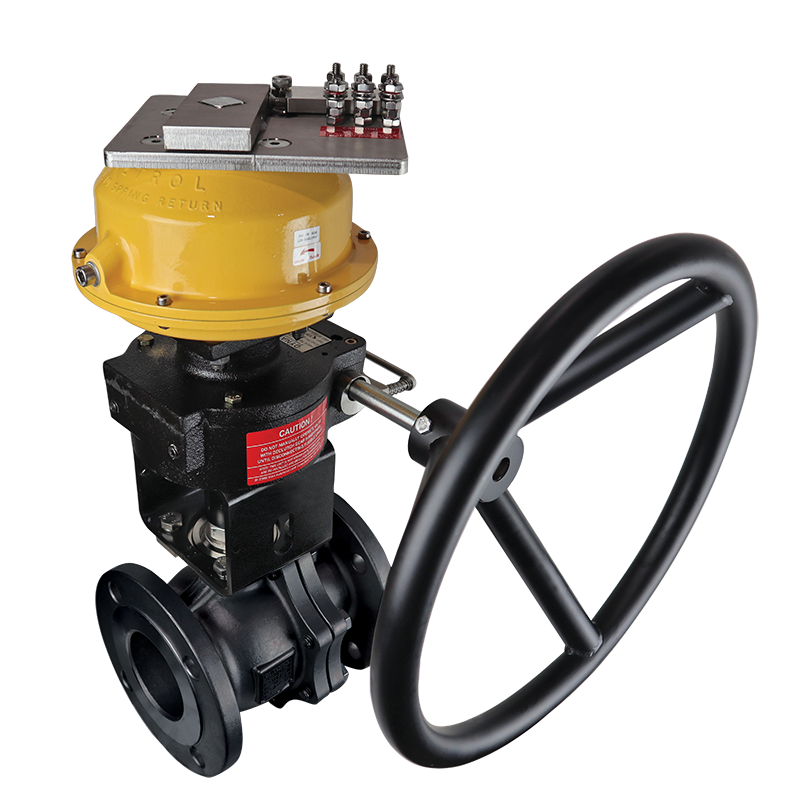

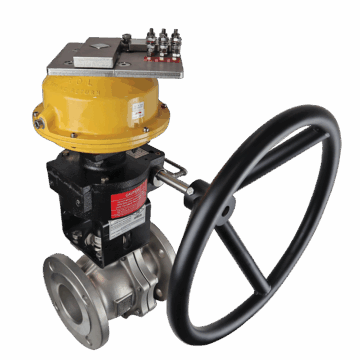

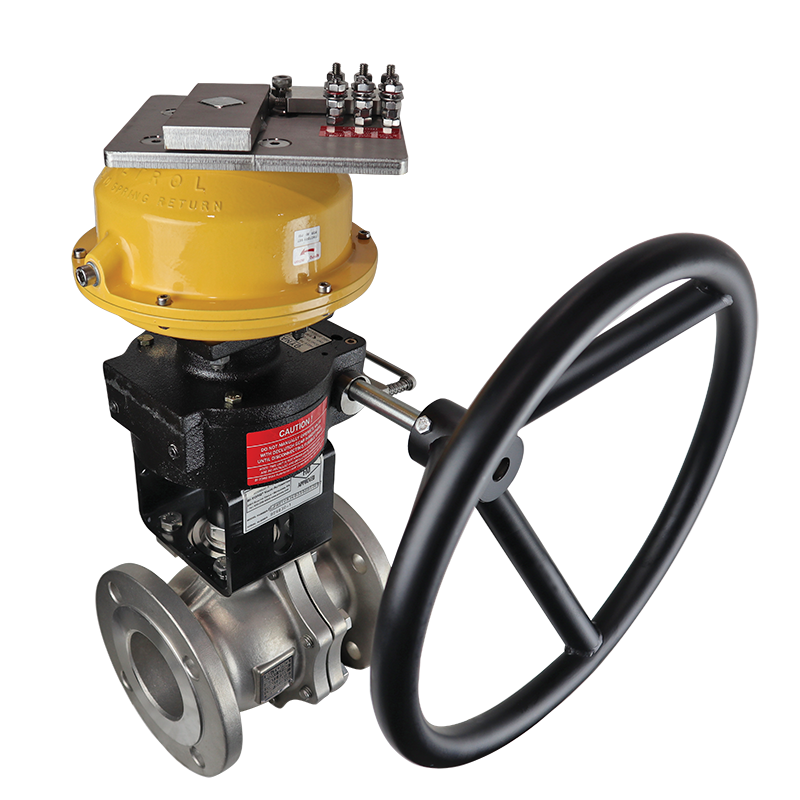

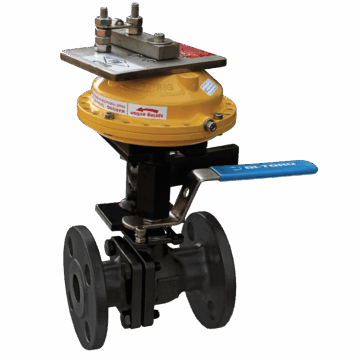

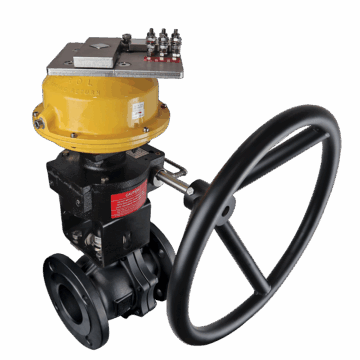

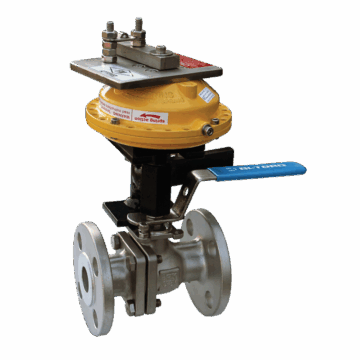

• 1/2” through 2” valves with manual handle; 3″ through 6″ have a declutchable gearbox
• Valve is available as fail-closed or fail-open
• TFE seats and graphite seals/packing
• Fusible Links temperature below

It is highly recommended that Fusible Links be replaced annually as part of a regular safety maintenance program.

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on your selection. Please refer to data sheets and technical drawings for dimensions.
