Fusible Link Valves (FLP) – ANSI Class 150 Lug Style

BI-TORQ Thermal Shutoff Butterfly Valves with Fusible Links (FLP Series) are a complete assembly with a fusible link package with a class rating of API 607 and Fire Safe certification for a wide range of applications. We offer ANSI Class 150 lug-style end connections from 2″ through 12″ readily available. For sizes larger than 12″ and up to 24″, we can offer them upon special request. Request A Quote for pricing and availability.

BI-TORQ Thermal Shut-off Butterfly Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product you can drop right into your line. BI-TORQ valves can handle a wide range of applications, including steam service and high-pressure applications.

Product Features

• FM approved on select assemblies; Contact Us for assistance in specifying the best product for your FM requirements
• Automatic shut-off in case of fire
• Option to fail-open upon request
• Weatherproof spring pack and optional stainless steel top plate for maximum corrosion resistance
• Temperature links available:
  • 165º F / 74º C
  • 212º F / 100º C
  • 280º F / 138º C
  • 286º F / 141º C
  • 360º F / 182º C
• Factory assembled and tested

Specifications

• Material: Butterfly valve in carbon steel or stainless steel
• Available valve sizes from 2″ up to 24″ (2-1/2″ through 6″ have a declutchable gearbox)
• ANSI Class 150 lug-style end connection
• API 607 fire-safe, high-performance butterfly valves

It is highly recommended that Fusible Links be replaced annually as part of a regular safety maintenance program.

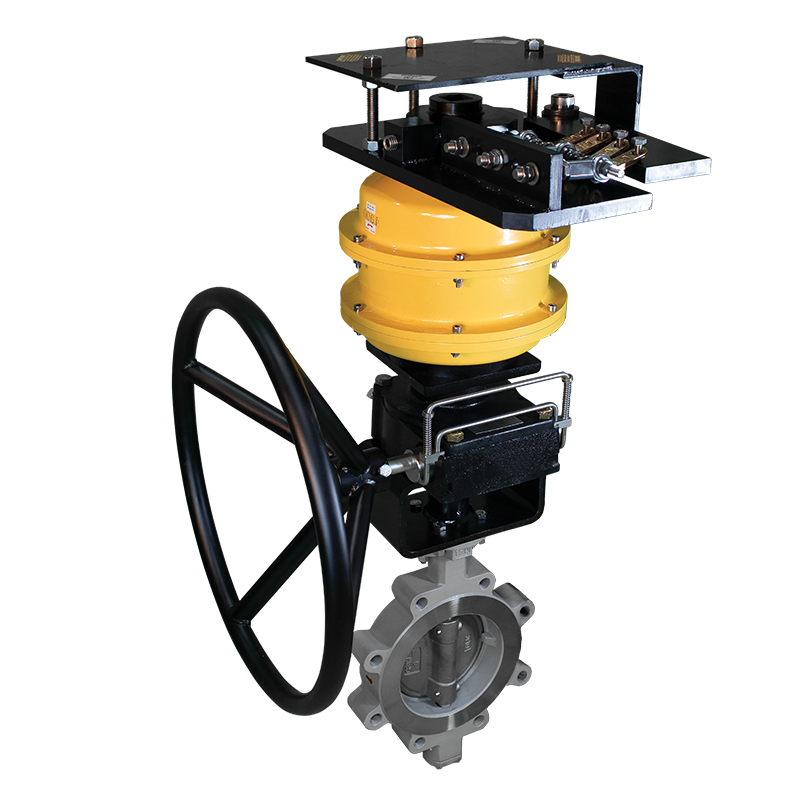

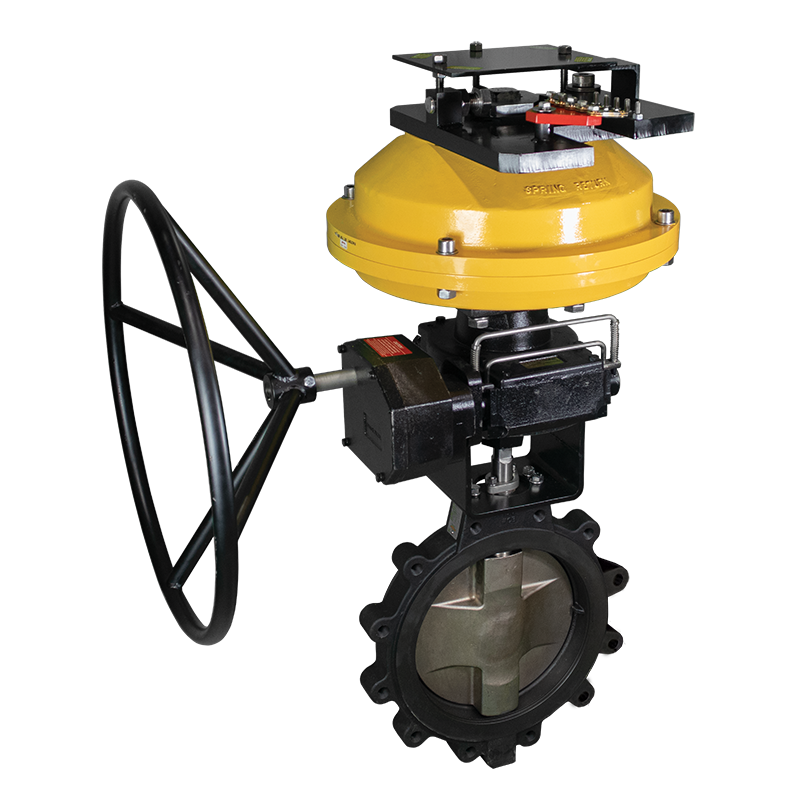

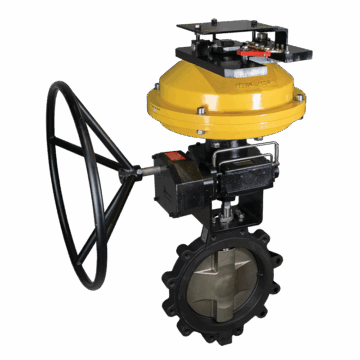

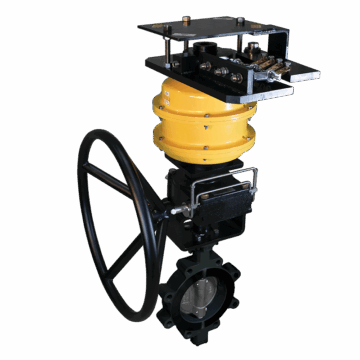

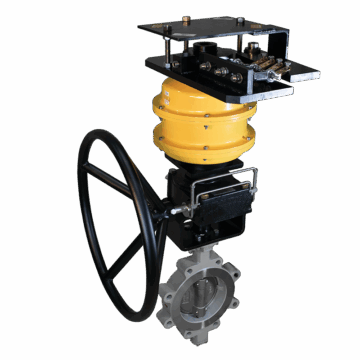

NOTE:  The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
