Metal Seated MS Series

Metal Seated MS Series Features:

• Rugged investment cast body construction for long-lasting service in challenging environments

• The standard body is 316 SS; other materials are also available, such as Alloy 20, Nickel, Hastelloy B or C, Monel, Titanium, Inconel, and other metals by request

• MNPT inlet x FNPT outlet connection; Threaded, Flanged, or Socket Weld connections available by request

• Metal to metal packing meets ANSI Class IV shutoff

• Dual sealing ring arrangement keeps the valve from leaking into the atmosphere

• No internal dead spot cavity – the piston fills the valve interior, resulting in a valid live sample every time

• Precision-machined piston clears out any material that may solidify within the body during regular operation;

• Standard piston extensions are 2″, 4″ and 6″ plus custom sizes upon request in +/= 1/16″ increments

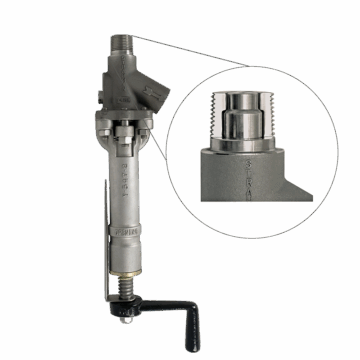

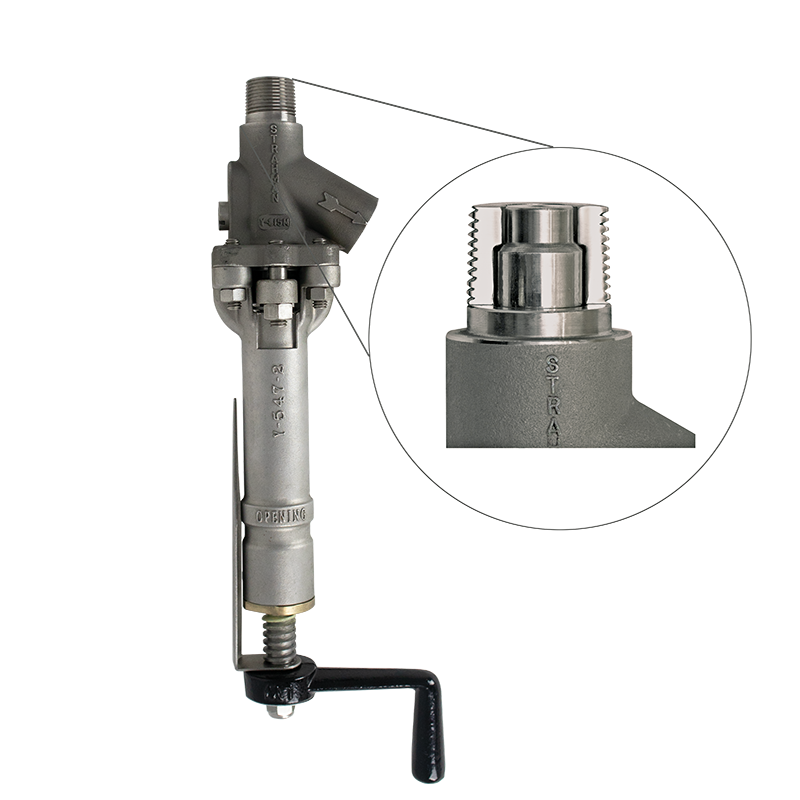

• Optional piston extension breaks through scale build-up to prevent contamination or ­­ build-up

• Our standard valve is manual, multi-turn hand crank operation; other available options include handwheel, gear operator, pneumatic or hydraulic cylinder, chain wheel, or extended crank options upon request

A Strahman Sampling Valve provides users with safe, effective, and consistent product sample extractions from the pipeline under high-pressure or high-vacuum conditions without fear of contamination or internal blockage.

At Strahman, we pride ourselves on serving a wide variety of industries and process applications. We understand that each application is unique, and we are committed to providing custom designs to fit your specific needs. Your satisfaction is our priority. Please CONTACT US. We would be delighted to work with you on custom-engineered solutions that meet your exact requirements.

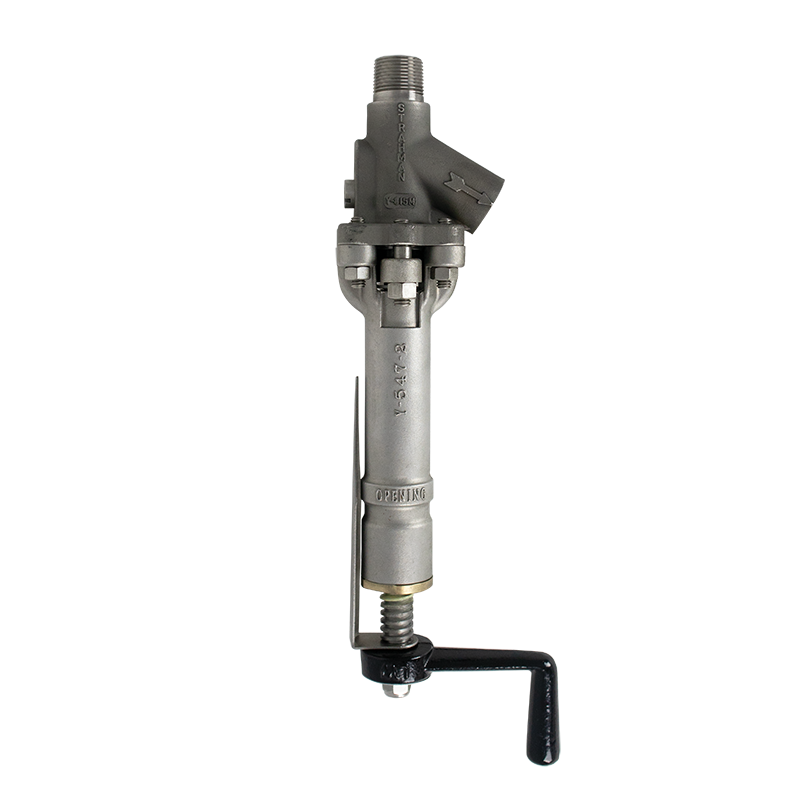

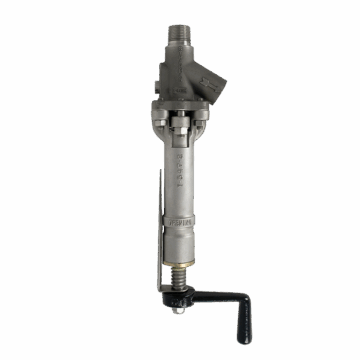

NOTE:  The image above is representative of the products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
