Our Quick Sample Valve is the ideal valve for quickly and easily extracting or injecting a media sample. It features a spring-loaded, fail-safe design with a plunger-style piston to break through any crust or scale that forms. A manual quarter-turn actuator handle features multiple positions for absolute control. The Quick Sample Valve works best for media with low-viscosity polymers, water, and light chemicals. Our Quick Sample Valve provides users with safe, effective, and consistent product sample extractions from the pipeline under high-pressure or high-vacuum conditions.

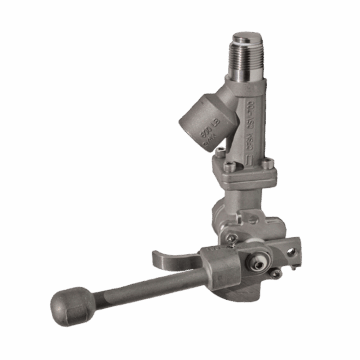

Quick Sample QS Series
Quick Sample QS Series Features:
Rugged investment cast body construction for long-lasting service in challenging environments
The standard body is 316 SS; other materials are also available, such as Alloy 20, Nickel, Hastelloy B or C, Monel, Titanium, and Inconel by request
Connection types include Threaded, Flanged, or Socket Welded
Linear Rising Stem with a quarter-turn actuation for quick release
ANSI Class 600
Live Loaded packing rated to ANSI Seat Leakage Class VI
Dual sealing ring arrangement keeps the valve from leaking into the atmosphere
Standard Packing is PTFE with a maximum of 450° F(200° C); other available packing is MR (maximum temp 650°F/340°/c) and Graphite (1000°F/530°C) by request
A Strahman Sampling Valve provides users with safe, effective, and consistent product sample extractions from the pipeline under high pressure or high vacuum conditions without fear of contamination or internal blockage.
Strahman serves a wide variety of industries and process applications. We understand the need for custom designs to fit custom applications. Please CONTACT US. We would be happy to work with you on custom engineered solutions.
NOTE: The image above is representative of the products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
