M-756

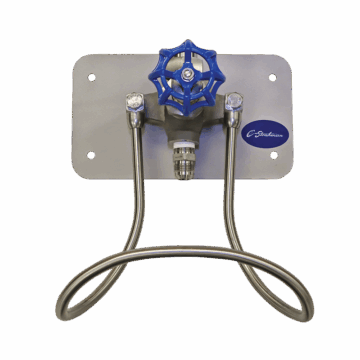

Strahman’s M-756 Stainless Steel Single-Control Valve Wall-Mounted Washdown Station is designed for hot or cold water use wherever hose service is required. This compact unit includes a single control valve, a stainless steel hose rack, and mounting attachments.

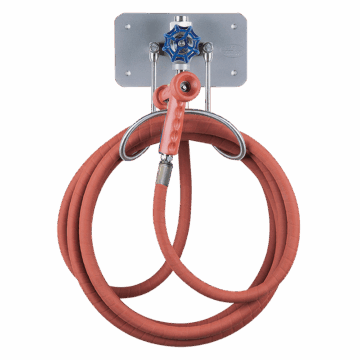

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-756 with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.

Product Features

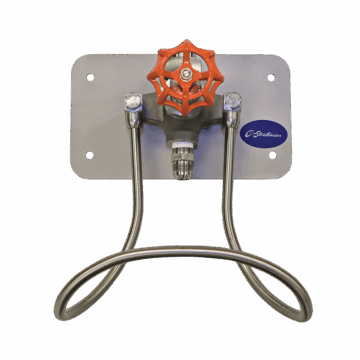

  • Designed for hot (orange handle) or cold water (blue handle)
  • Compact and easy-to-use system for cleaning industrial environments
  • Cast-iron handwheel provides a comfortable grip

Inputs and Outputs

  • Maximum Water Pressure: 150 psi
  • Maximum Operating Temperature: 200º F (93ºC)

Specifications

  • Material: Stainless Steel
  • Connections: 3/4″ NPT
  • Stainless Steel Mounting Plate
  • Stainless Steel Hose Rack
  • Mounting Hardware Included

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on valve size. Please refer to data sheets and technical drawings for dimensions.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information, visit www.P65Warnings.ca.gov.
