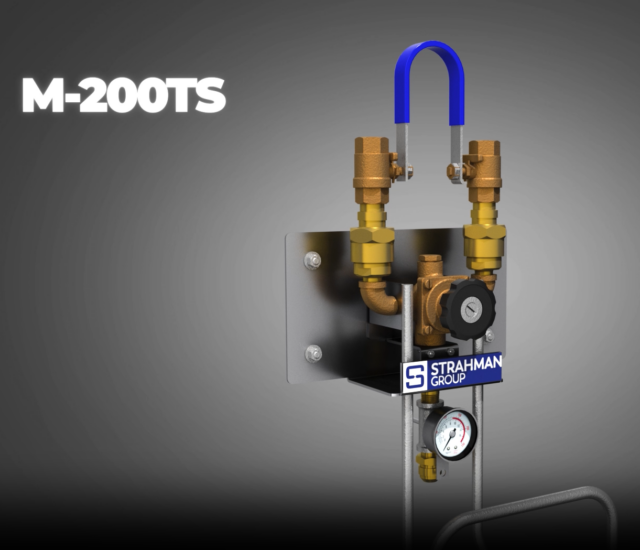

M-200TS

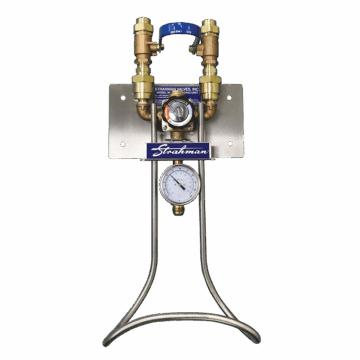

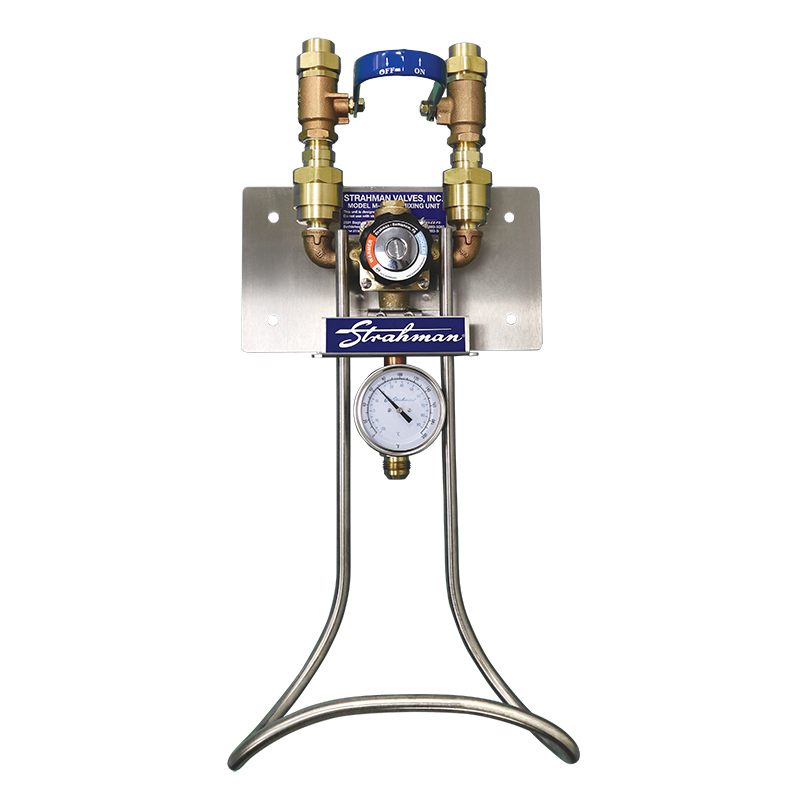

The Strahman M-200TS Thermostatically Controlled Washdown Station is constructed of bronze/stainless steel and blends hot and cold water to a set water temperature. The unit’s accurate liquid-filled ­thermostat ­allows you to control the exact output of ­water ­temperature from cold to 160°F. The thermostatic actuator is linear in its ­expansion and detects the slightest variation in the supply lines’ temperature or pressure to maintain the exact temperature. It is highly corrosion-resistant, ensuring a long, reliable life.

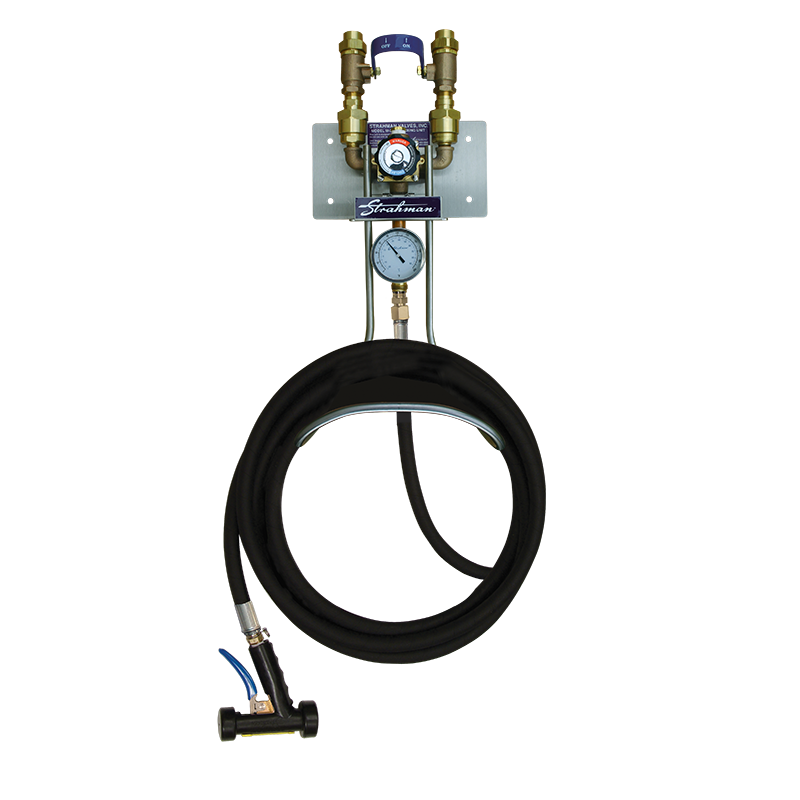

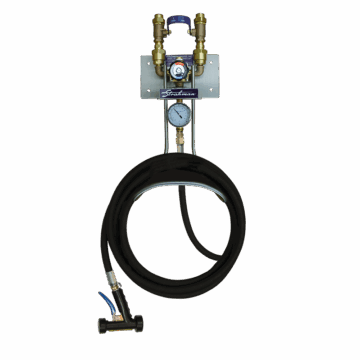

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-200TS with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.



 Mixing Unit Hose Station Features

  • Maintains temperature to +/–3°F
  • Adjustable temperature limit stop for maximum safety
  • Detects and compensates for temperature and pressure fluctuations
  • Color-coded temperature control dial
  • Hydraulically formed thermostat with liquid-filled bellows

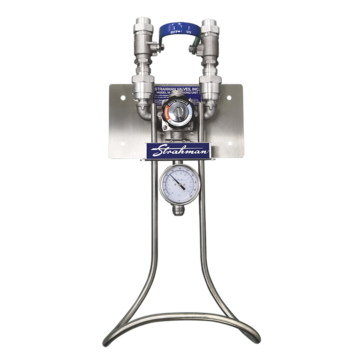

  • Available in a Chrome Plated version
  • Available with Recessed Wall Box
  • Available with Pedestal Mount

Inputs and Outputs

  • Required Water Pressure: 10 – 125 psi
  • Maximum 20 psi difference between hot and cold water supply
  • Output Water Temperature: 80º F (27ºC) to 160º F (71ºC)
  • Minimum 15°F (-9ºC) temperature differential between hot and cold water supply

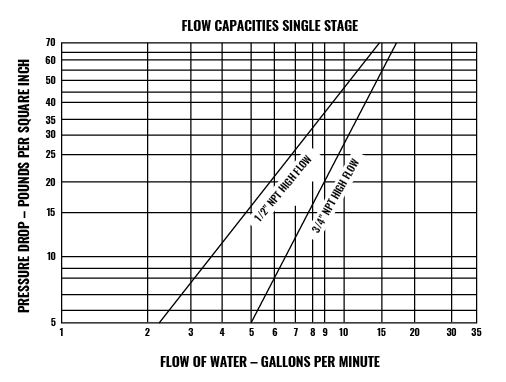

  • Output Low Flow Unit: 5 – 7 GPM
  • Output High Flow Unit: 10 – 12 GPM

Specifications

  • Material: Bronze
  • Connections: 3/4″ NPT
  • Temperature Gauge
  • Temperature Control Dial
  • Stainless Steel Mounting Plate
  • Stainless Steel Hose Rack

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on your selection. Please refer to data sheets and technical drawings for dimensions.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information, visit www.P65Warnings.ca.gov

Product Chart
PRODUCT CODEDESCRIPTIONBODY MATERIALMOUNTING OPTIONVALVE
M200TCWBRM-200TS Thermo Control, Bronze, Wall-Mounted, Ball Valve Top Entry OnlyBronzeWall MountedBall
M200TCWBHFM-200TS Thermo Control, Bronze, Wall-Mounted, Ball Valve Top Entry Only, 3/4" Hi-FloBronzeWall MountedBall
M200TCWBPPM-200TS Thermo Control, Chrome Plated, Wall-Mounted, Ball Valve Top Entry OnlyChrome PlatedWall MountedBall
M200TCRBM-200TS Thermo Control, Bronze, Recessed Wall Box, Ball Valve Top Entry OnlyBronzeRecessed BoxBall
