Valve Specifications
- Full Port 2-Piece Ball Valve
- 1/4” through 4” NPT Size Range
- Pressure Rating: 600 PSI CWP
- Temperature Rating: +279°F Maximum
Product Attributes
- Material: Brass
- TFE® seats and seals
- Viton® body O-rings
- Vacuum to 29 inHg
- Blow-out proof stem
- CE rated
- ISO mounting pad
Electric Actuator Attributes
- 120VAC, 220VAC, 24VAC, 12VDC and 24VDC
- Supplied with NEMA 4, call for pricing for NEMA 4X and 7 housings
- Manual overrides
- Visual indicator
- Open/close or modulating service
- Heavy-duty gear train with permanent lubrication
- Additional accessories available

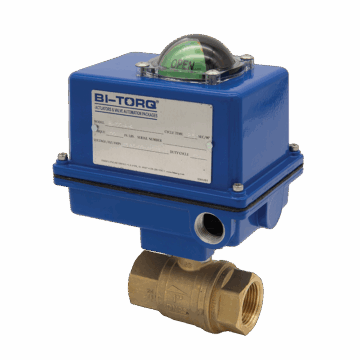

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the product you receive may differ slightly depending on your selection options. Please refer to the data sheets for dimensions and technical drawings.
