IS-2PF (2-Piece Flanged) Electric Actuated Stainless Steel Ball Valves

BI-TORQ Electric Actuated Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product you can drop right into your line. BI-TORQ Ball Valves can handle a wide range of applications, including steam service and high-pressure applications. This series features a standard full-port 2-piece Stainless Steel ball valve with Class 150 flanged ends.

Strahman is one of the first companies in the industry to offer fully assembled automated ball valves, so you can feel confident you are purchasing the best actuated ball valve, backed by the technical expertise to support it. Our experienced technical sales staff can help you choose the right automated ball valve and actuator for your application.

Valve Specifications

• Full Port 2 Piece Flanged Ball Valve
• 1/2” through 6” Size Range
• Pressure Rating: ANSI Class 150 Flanged
• Temperature Rating: +400°F Maximum / -20°F Minimum
• Designed to ANSI B16.34 standards

Product Attributes

• Material: Stainless Steel
• RTFE® seats and seals
• Optional Fire Safe Design (w/graphoil seals)
• ISO 5211 mounting for easy automation
• Vacuum to 29 inHg
• Self-adjusting stem packing

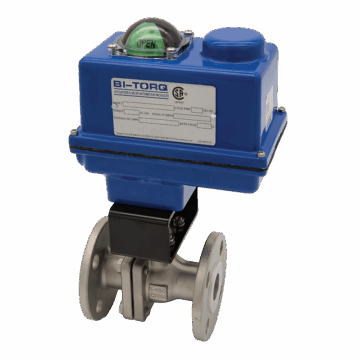

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the product you receive may differ slightly depending on your selection options. Please refer to the data sheets for dimensions and technical drawings.
