Valve Specifications
- Full Port 2 Piece Flanged Ball Valve
- 1/2” through 6” Size Range
- Pressure Rating: ANSI Class 150 Flanged
- Temperature Rating: +400°F Maximum / -20°F Minimum
- Designed to ANSI B16.34 standards
Product Attributes
- Material: Stainless Steel
- RTFE® seats and seals
- Optional Fire Safe Design (w/graphoil seals)
- ISO 5211 mounting for easy automation
- Vacuum to 29 inHg
- Self-adjusting stem packing

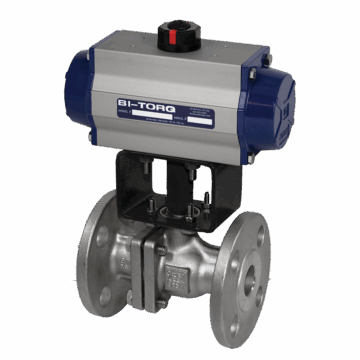

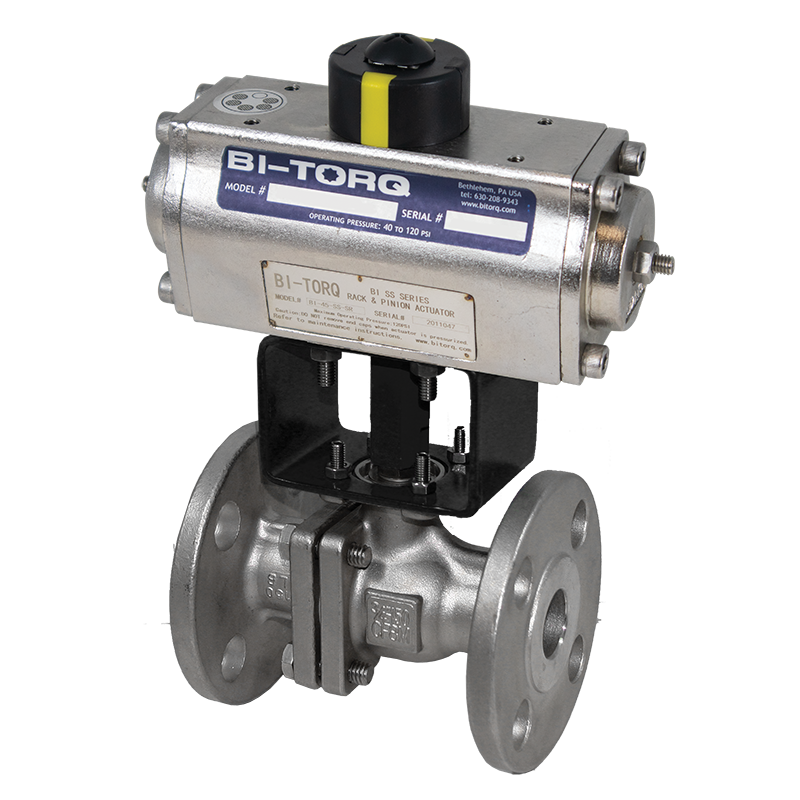

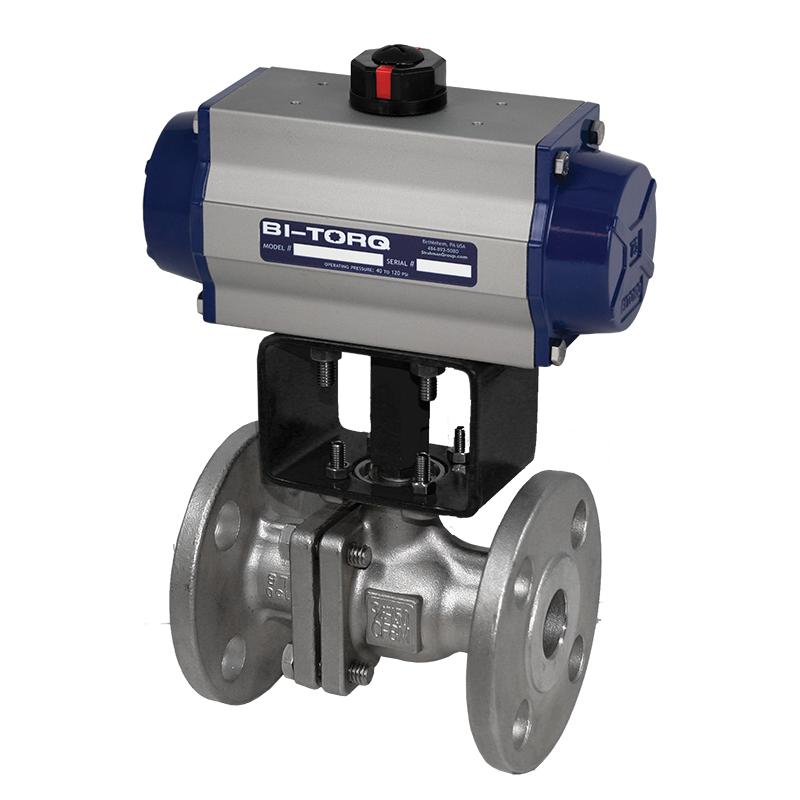

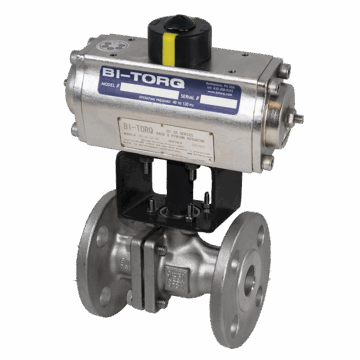

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the product you receive may differ slightly depending on your selection options. Please refer to the data sheets for dimensions and technical drawings.
