Fire Safe 2 Piece Flanged Ball Valve with Pneumatic Actuator

BI-TORQ Pneumatic Actuated Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product that you can drop right into your line. This series features an API 607 certified ANSI Class 150 flanged Fire-Safe ball valve. Our fire-safe valves are offered as part of a complete thermal shut-off package to shut down tanks or piping in the event of a fire. Customize your automation package with modulating positioners, NAMUR solenoids, proximity switches, speed control, and other options tailored for a specific application.

Strahman is one of the first companies in the industry to offer fully assembled automated ball valves under the BI-TORQ brand, so you can feel confident you are purchasing the best actuated ball valve, backed by the technical expertise to support it. Our experienced technical sales staff can help you choose the right automated ball valve and actuator for your application.

Fire Safe Valve features

• Full port 2-piece valve in Carbon Steel or Stainless Steel body with stainless steel ball and stem
• ANSI Class 150 engineered to ANSI B16.34
• API 607 4th edition Fire-Safe approved
• ISO mounting pad for easy automation
• Self-adjusting stem packing
• DIN 50049-3.1B certificate
• Optional gear operators

Pressure Rating

• ANSI Class 150 flanged

Temperature Rating

• +400°F Maximum
• -20°F Minimum

Pneumatic Actuator

• Hard anodized extruded Aluminum housing with epoxy-coated end caps for maximum resistance to corrosion or All-Stainless Steel contruction
• Double-acting (DA) or Spring-Return (SR) options; PN-32 not available with (SR) option
• Standard air supply pressure is 80 psi; Maximum pressure rating 120 PSI / 8 BAR
• Rack and pinion design for consistent torque output
• Anti-blowout system prevents damage from over-pressurization
• Fail open or fail closed configurations (Spring return models)
• ±5 degree adjustment in both open/closed positions
• ISO and NAMUR standards for top mounting for adding limit switches and positioners
• NAMUR airport configuration for easy solenoid mounting
• Limit switches, modulating positioners, NAMUR solenoids, and many other options are available (contact us)

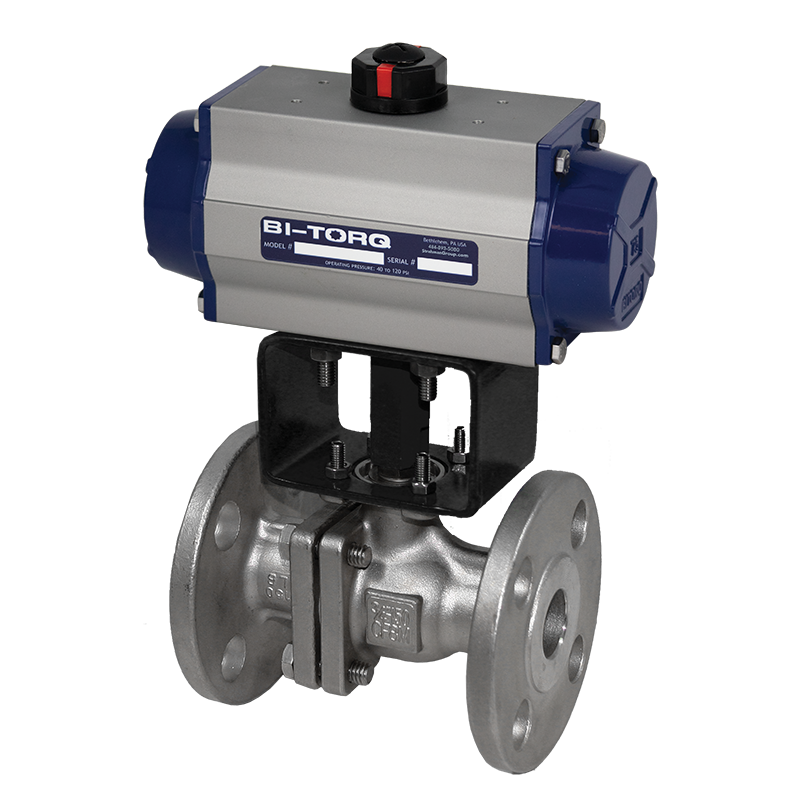

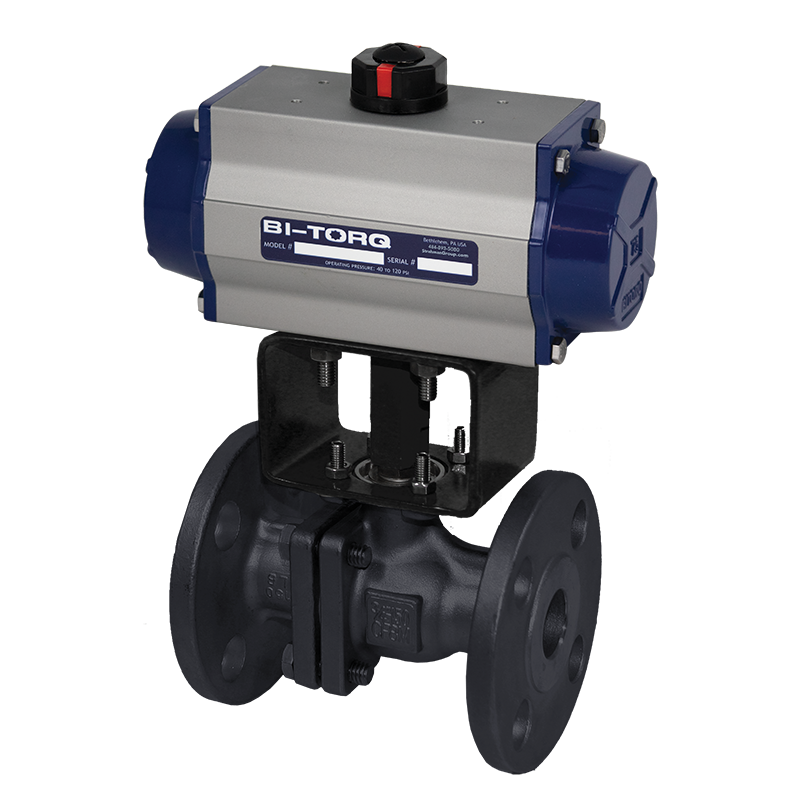

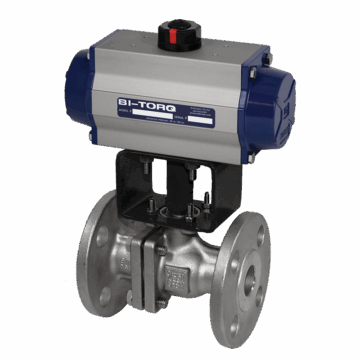

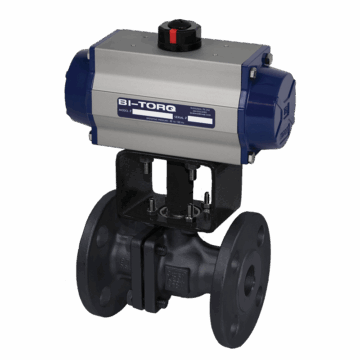

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the unit you receive may differ slightly depending on the actuator you select. Please refer to the data sheets for dimensions and technical drawings.
