Fire Safe 2 Piece Flanged with Electric Actuator

BI-TORQ offers a selection of API 607 certified Fire-Safe ball valves in both automated and manual configurations. Our fire-safe valves are offered as part of a complete thermal shut-off package to shut down tanks or piping in the event of a fire.

These units, featuring a two-way port option, include our BI-Series electric actuators, available in various voltage options. Customization is possible by adding auxiliary limit switches, positioners, speed control, an adjustable timer, and more.

Valve Features

• Full port Carbon Steel or Stainless Steel ball valve
• Valve sizes in 1/2″ through 6″ (Carbon Steel valve only goes up to 4″)
• Class 150# flanged designed to ANSI B16.34
• API 607 fire-safe approved
• ISO mounting pad for easy automation
• Self-adjusting stem packing
• DIN 50049-3.1B certificate

Pressure Rating

• ANSI Class 150

Temperature Rating

• +400° F Maximum
• -20° F Minimum

Actuator Features

• 120 V AC, 220 V AC, 24 V AC, 12 V DC, 24 V DC
• NEMA 4 and NEMA 7 enclosures
• Manual override
• Visual indicator

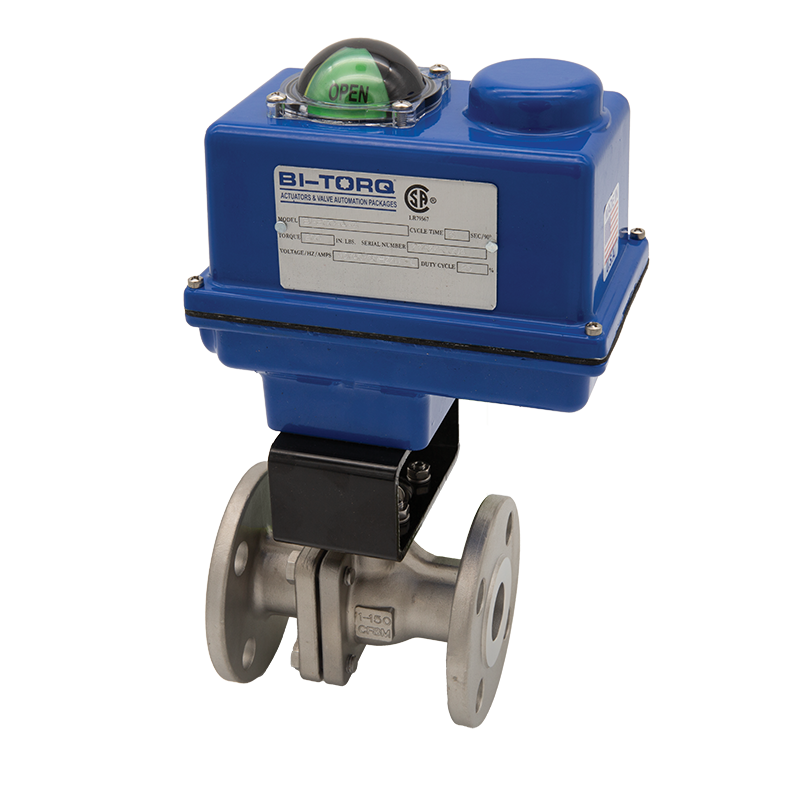

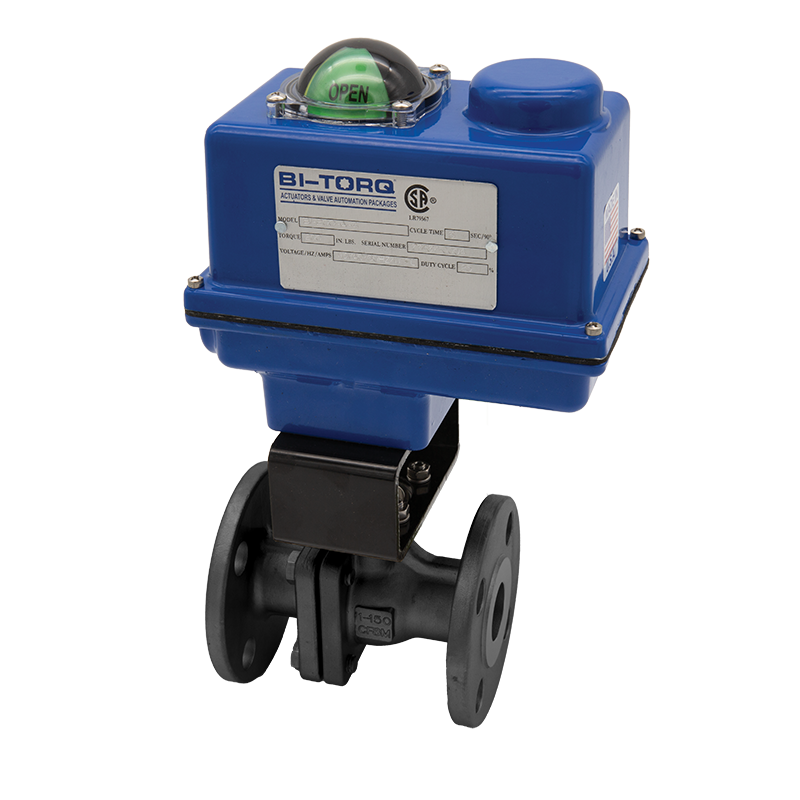

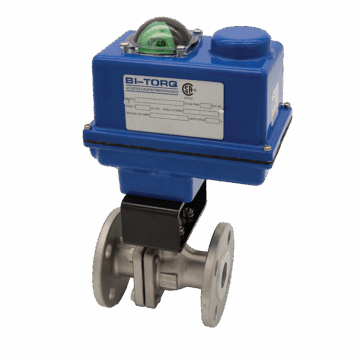

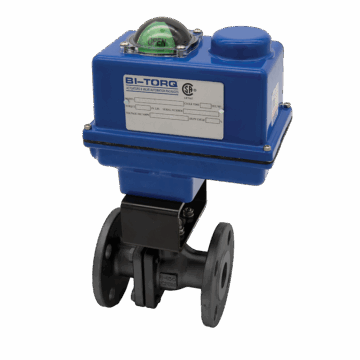

Please note that the product image shown is representative of products in this series. While we strive to be as accurate as possible, the product you receive may slightly differ in appearance depending on the valve size.
