Product Features
- Handwheel Gear Operator
- Lug Style Cast Iron Butterfly Valves (BFVs) 2” through 12” sizes
- Direct mount for low-profile, cost-efficient operation
Specifications
- Materials: Stainless Steel stem and disc is standard on the unit
- EPDM, BUNA-N, VITON®, or PTFE seats available
- Sizes 6″ through 12″ with PTFE seats are by special order; contact Customer Service for quote and delivery
- Working Pressure 225 PSI for valve sizes 2″ through 8″
- Working Pressure 150 PSI for valve sizes 10″ through 12″
| SEAT MATERIAL | WORKING TEMPERATURE (Min) | WORKING TEMPERATURE (Max) |
| EPDM | -30º F (-34º C) | 275º F (135º C) |
| BUNA-N | 10º F (-12º C) | 180º F (82º C) |
| VITON | 0º F (-17º C) | 350º F (177º C) |
| PTFE | 0º F (-17º C) | 250º F (121º C) |

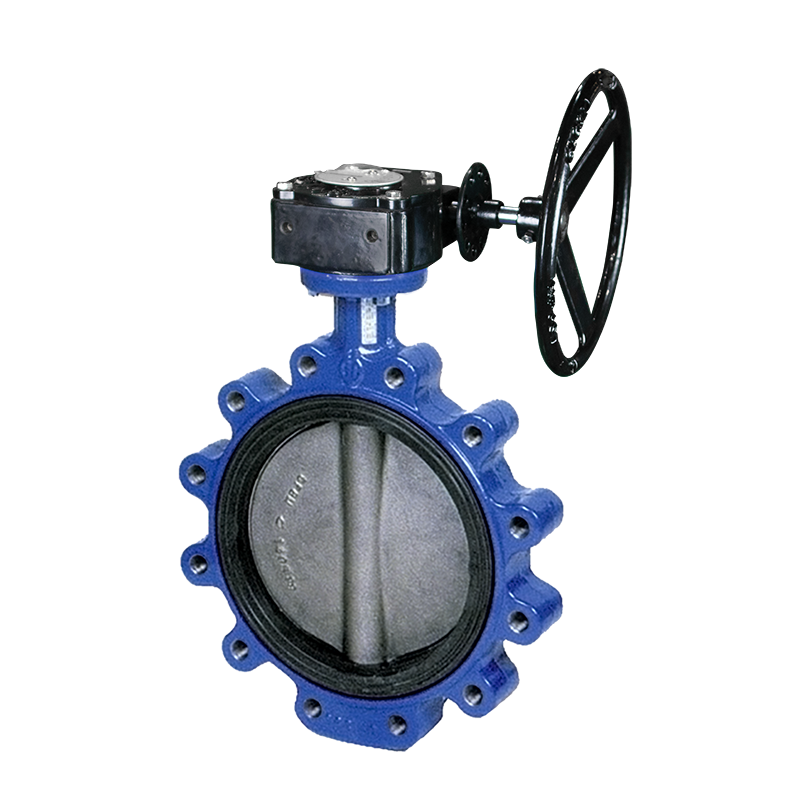

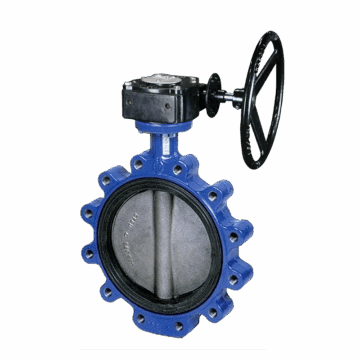

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
