Specifications
- Materials: Stainless Steel stem and disc as standard on the unit
- 10 Position Handle on valve sizes 2″ through 8″
- For valve sizes 10″ and 12″, see Lug Style with Gearbox
- EPDM, BUNA-N, VITON® or PTFE seats
- Sizes 6″ through 12″ with PTFE seats are by special order; contact Customer Service for a quote and delivery
- Working Pressure 225 PSI for valve sizes 2″ through 8″
- Working Pressure 150 PSI for valve sizes 10″ through 12″
Product Features
- Lug Style Cast Iron Butterfly Valves (BFVs) 2” through 10″; 12” size is available; contact Customer Service for a quote and delivery
- Direct mount for low profile, cost-efficient operation
| SEAT MATERIAL | WORKING TEMPERATURE (Min) | WORKING TEMPERATURE (Max) |
| EPDM | -30º F (-34º C) | 275º F (135º C) |
| BUNA-N | 10º F (-12º C) | 180º F (82º C) |
| VITON | 0º F (-17º C) | 350º F (177º C) |
| PTFE | -20º F (-28º C) | 250º F (121º C) |

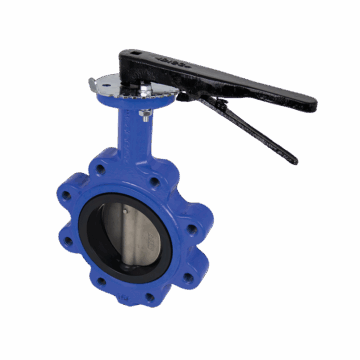

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on your selection. Please refer to data sheets and technical drawings for dimensions.
