M-144TG

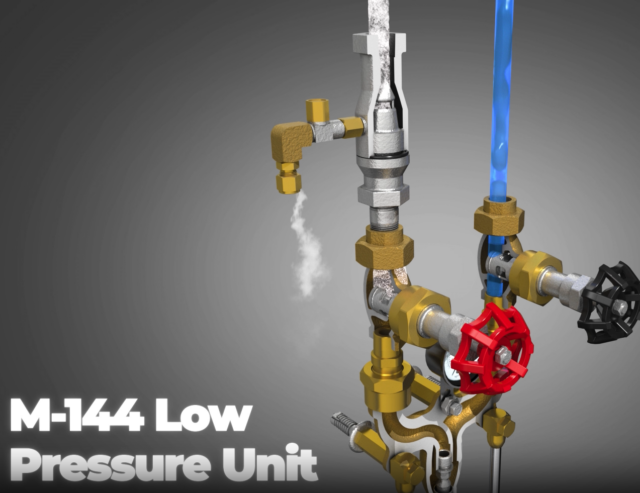

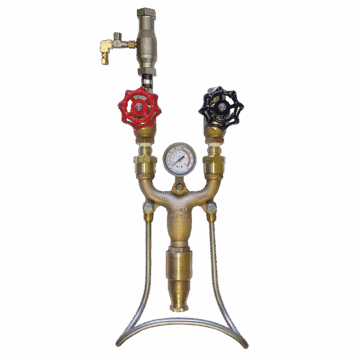

Strahman’s M-144TG Bronze Safety Washdown Station blends steam and cold water in any desired proportion. It is user-adjustable with a factory-set maximum temperature and features a safety shut-off that prevents the passing of live steam. The unit also features a specially designed blending chamber that thoroughly and evenly mixes steam and cold water. The M-144TG Series is equipped with a dial-type gauge that accurately indicates the wash water’s exact temperature.

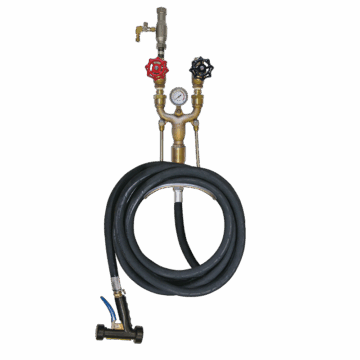

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-144TG with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.

Mixing Unit Hose Station Features

• Auto-shut-off if the cold water supply is interrupted
• Available with optional Recessed Wall Box
• Available with optional Pedestal Mount
• Available with optional Wall Mounting Plate

Inputs and Outputs

• Required Steam Pressure: 20 psi to 80 psi
• Required Cold Water Pressure: 20-80 psi (Maximum of 150 psi)
• Maximum Output Water Temperature: 200º F (93ºC)
• Output Flow: 2-1/2 to 8 GPM

Product Specifications

• Material: Bronze
• Connections: 3/4″ NPT
• Temperature Gauge
• Direct Diffuse® Steam Trap
• Blending Chamber
• Stainless Steel Hose Rack

NOTE:  The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on your selection. Please refer to data sheets and technical drawings for dimensions.

WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information, visit www.P65Warnings.ca.gov
