S-70 Series
Sign into view priceDescription

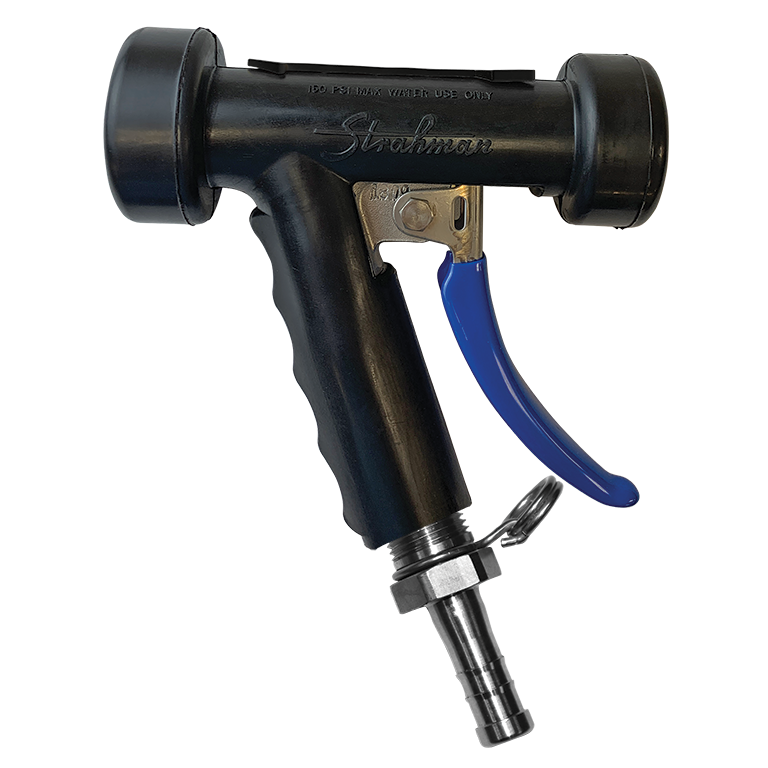

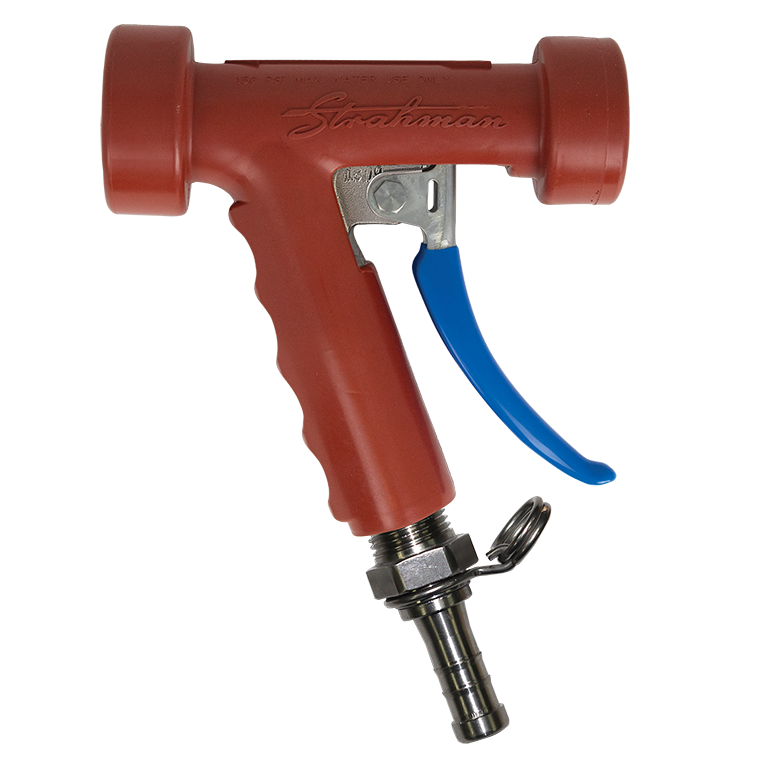

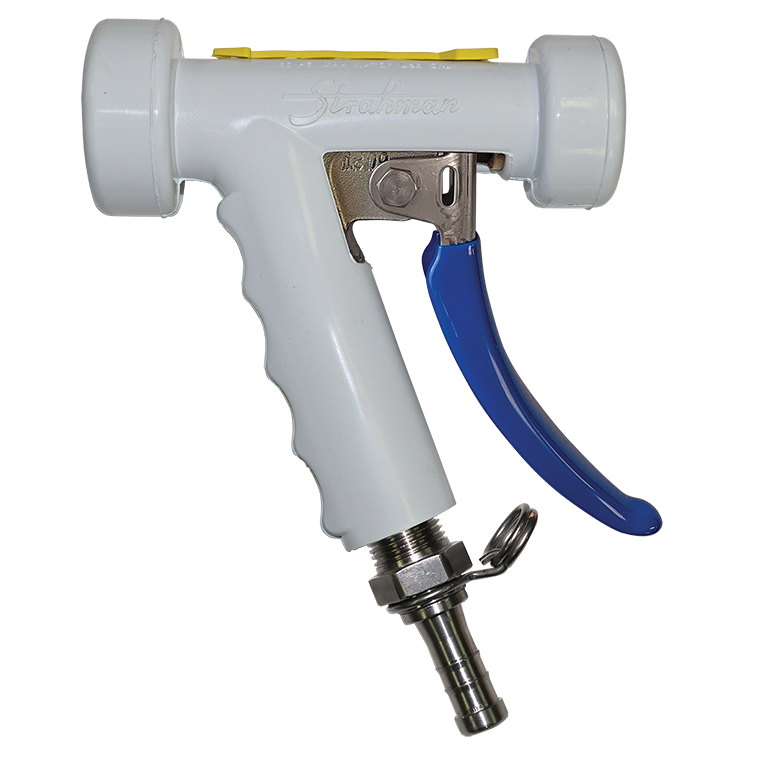

The S-70 combines modern and innovative engineering with premium quality parts to build an industrial nozzle strong enough to withstand even the most rugged applications. This rubber coated, precision made nozzle enables the operator to achieve any type of water stream – from a soft spray to a strong, straight stream – simple by pressing the lever. This convenient control of the wash assures better cleaning with a lot less effort.
The S-70 features all stainless steel construction, a replaceable heavy-duty rubber cover, stainless steel seat design to prevent leakage, and instant water shut-off when the trigger is released. To see this spray nozzle in bronze, please see our M-70 Series. Other available options include Swivel Adapters for easy connection to your hose.
SPRAY NOZZLE FLOW TEST |
||
| WATER PRESSURE PSI | FLOW (GPM) | |
| Standard Nozzle | Low Flow Nozzle | |
| 20 | 3-1/4 | 2-1/4 |
| 30 | 4-1/4 | 2-3/4 |
| 40 | 5-1/8 | 3-1/4 |
| 50 | 5-7/8 | 3-3/4 |
| 60 | 6-3/4 | 4-1/8 |
| 70 | 7-1/2 | 4-1/2 |
| 80 | 7-3/4 | 4-7/8 |
| 90 | 8-1/4 | 5 |
| 100 | 9 | 5-1/8 |
Please see the attached spec sheet under Documents for additional details.
