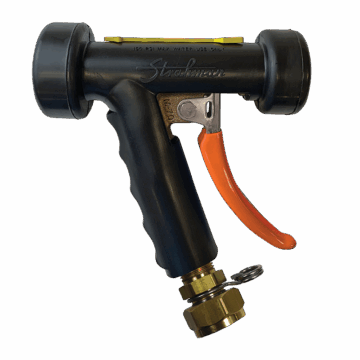

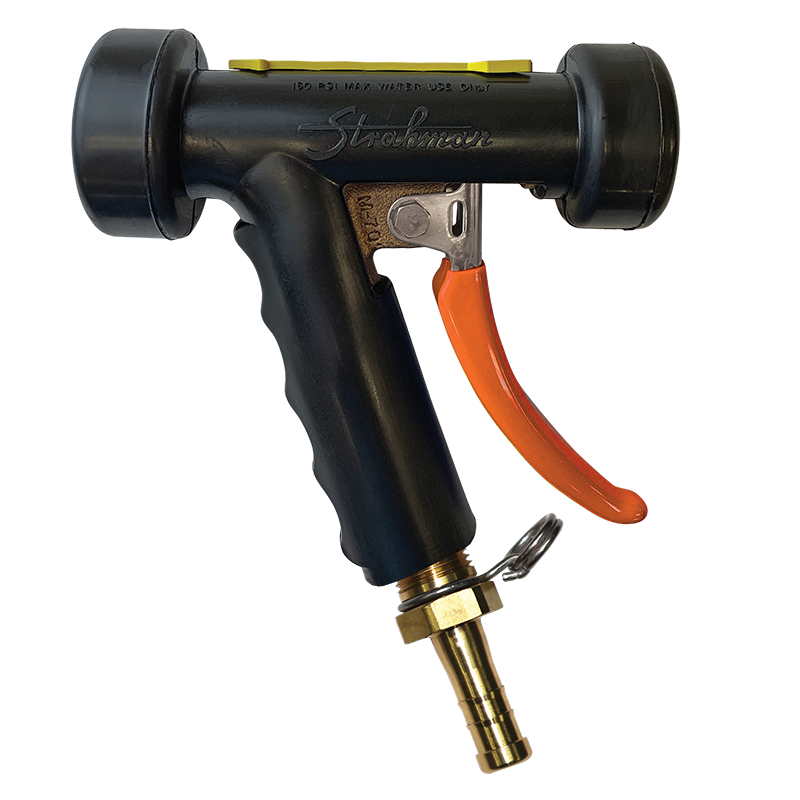

F-90 Series

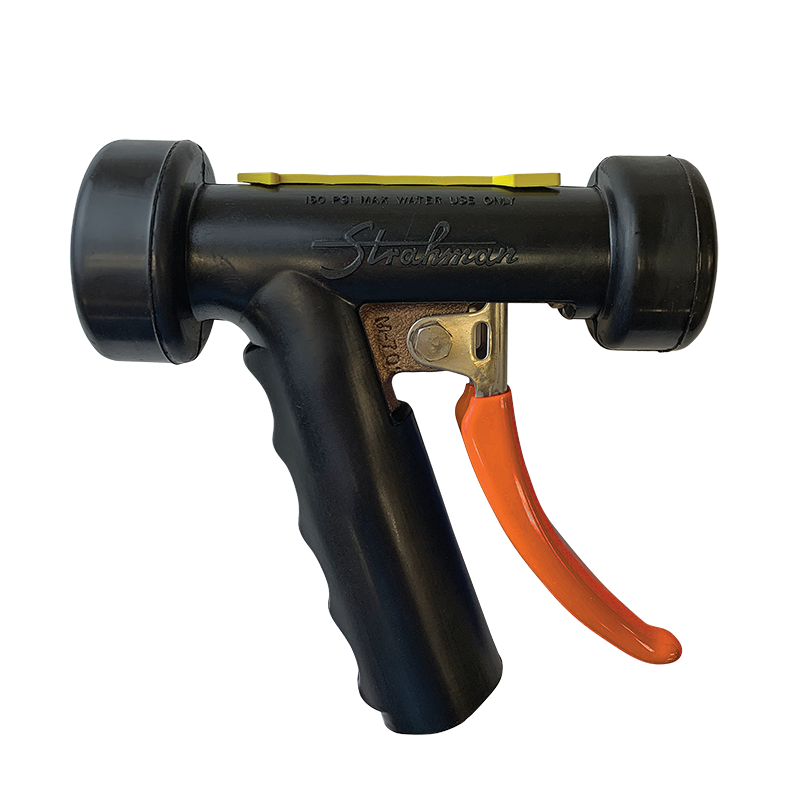

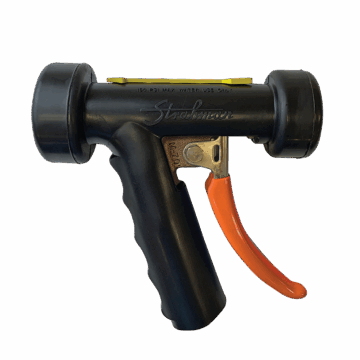

Strahman’s F-90 Washdown Spray Nozzle produces a fan spray that covers a wide area, making it ideal for general cleaning applications where a solid spray is not required.  This convenient control of the water spray ensures quick and efficient cleaning for the application, with less effort.

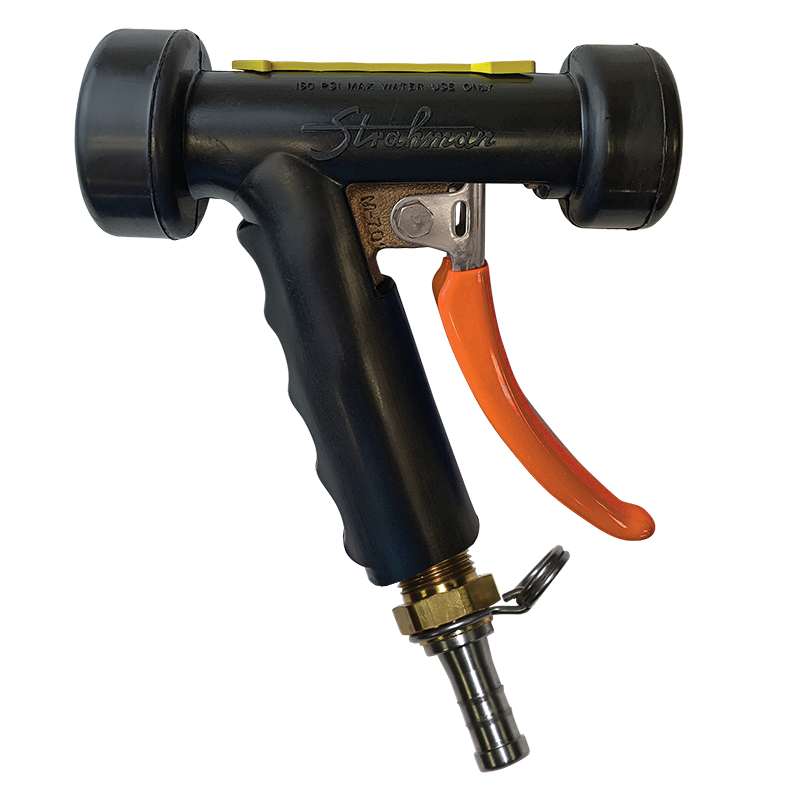

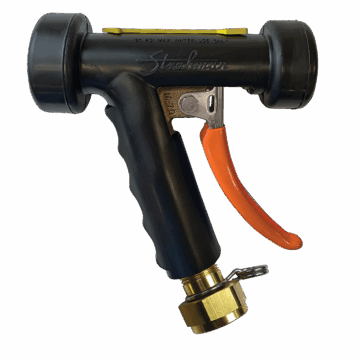

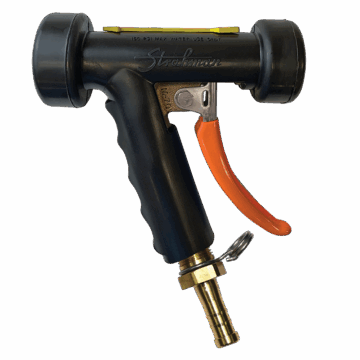

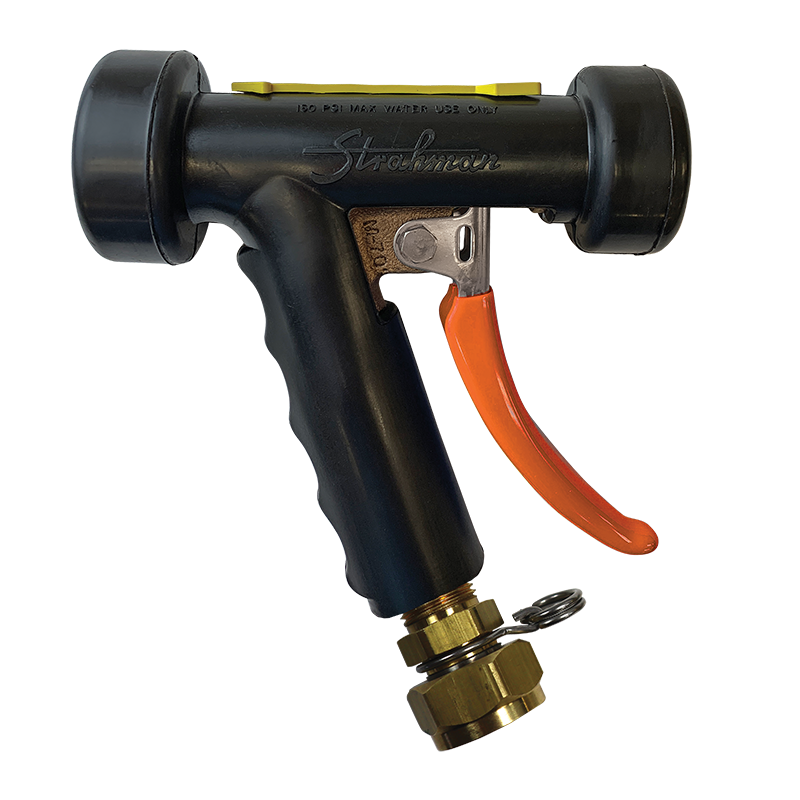

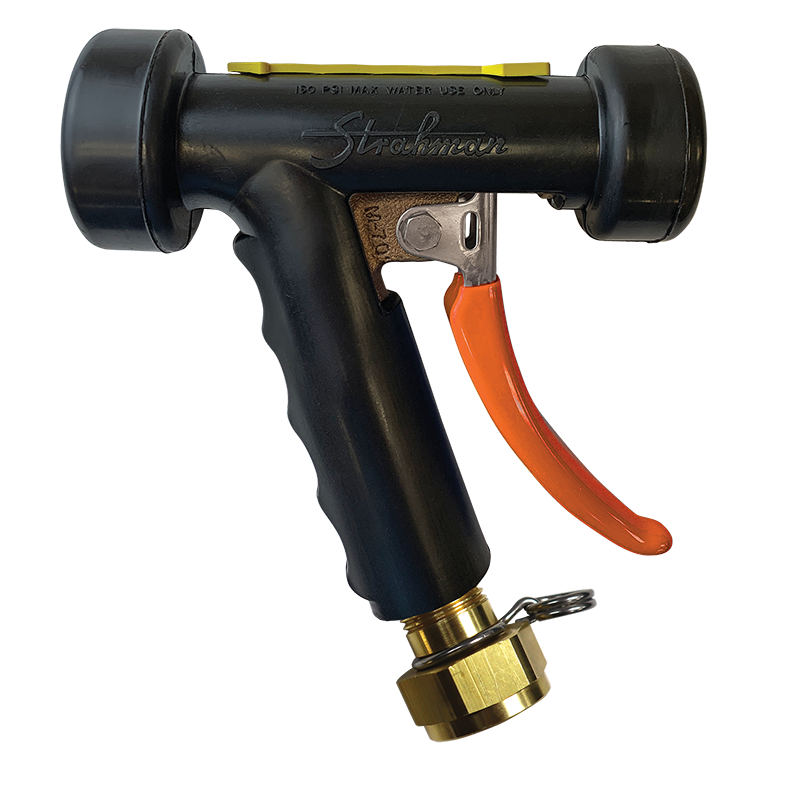

The F-90 spray nozzle features a choice of stainless steel or bronze construction, a replaceable heavy-duty rubber cover, a stainless steel seat design to prevent leakage, and instant water shut-off when the trigger is released. Multiple adaptor  options available, including  Swivel Adapters  for easy connection to your hose.

Product Features

• Stainless steel seat design prevents leakage
• Available with Black, Red, or White Rubber Cover
• Multiple adaptor options available
• Ergonomically designed with a comfortable grip to help reduce operator fatigue

Inputs and Outputs

• Maximum Water Pressure: 150 psi
• Maximum Operating Temperature: 200º F (93ºC)
• Output: 3-1/4 to 9 GPM, see chart below

Product Attributes

• Material: Choice of Stainless Steel or Bronze
• Connections: 1/2″ NPT
• Fan Spray Pattern

NOTE:  The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on your selection. Please refer to data sheets and technical drawings for dimensions.
