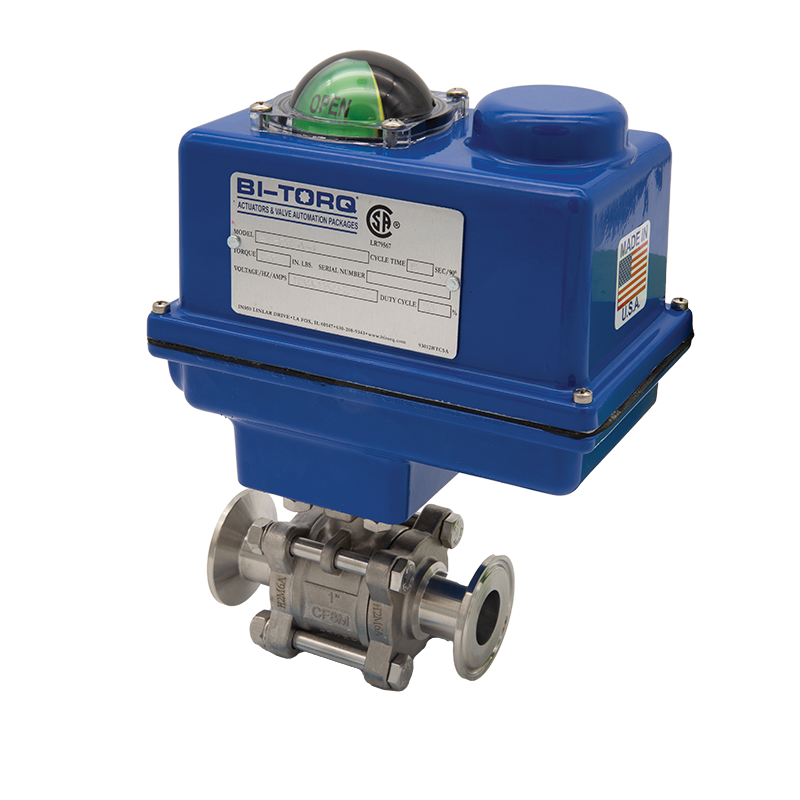

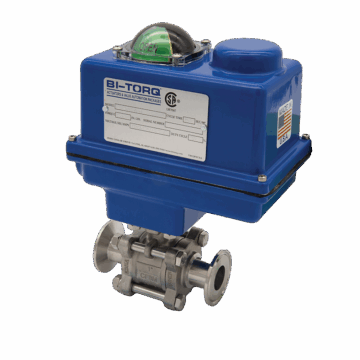

IS-3TC (Sanitary) Electric Actuated Stainless Steel Ball Valves

BI-TORQ Electric Actuated Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product you can drop right into your line. BI-TORQ Ball Valves can handle a wide range of applications, including steam service and high-pressure applications. This series features a full-port sanitary ball valve.

Strahman is one of the first companies in the industry to offer fully assembled automated ball valves, so you can feel confident you are purchasing the best actuated ball valve, backed by the technical expertise to support it. Our experienced technical sales staff can help you choose the right automated ball valve and actuator for your application.

Valve Specifications

• Full Port Sanitary Ball Valve
• 1/2” through 4” Size Range
• Pressure Rating 1/2″ – 2″: 1000 PSI CWP
• Pressure Rating 2-1/2″ – 3″: 800 PSI CWP
• Pressure Rating 4″: 600 PSI CWP
• Temperature Rating: +450°F Maximum / -4°F Minimum

Product Attributes

• Material: Stainless Steel
• Cavity filled TFE® seats to reduce the threat of media entrapment
• 240 grit bore polish
• Polished clamp end to meet BS 4825.3

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the product you receive may differ slightly depending on your selection options. Please refer to the data sheets for dimensions and technical drawings.
