Fire Safe Ball Valves

BI-TORQ offers a selection of API 607 certified Fire-Safe ball valves in both automated and manual configurations. Our FSVs are offered as part of a complete thermal shut-off package to shut down tanks or piping in the event of a fire.

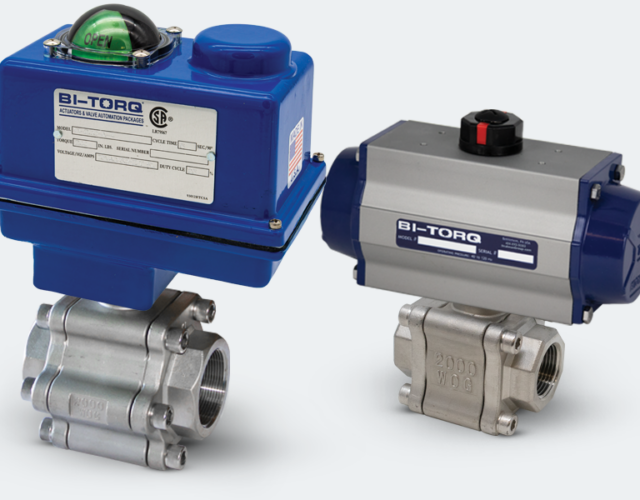

Automated

The product line includes pneumatic double-acting, spring-return, and electric actuators in both AC and DC voltages and in two-way port configurations. Customization is possible by adding modulating positioners, NAMUR solenoids, and other options tailored for a specific application.

  • API 607 certified fire-safe
  • Automated packages available from ¼” up to 6” depending on series
  • Body materials in stainless or carbon steel
  • NPT, socket weld, and 150# flanged end connections
  • Temperature ratings from -20ºF minimum to a maximum of +400ºF depending on series
  • Factory assembled and tested

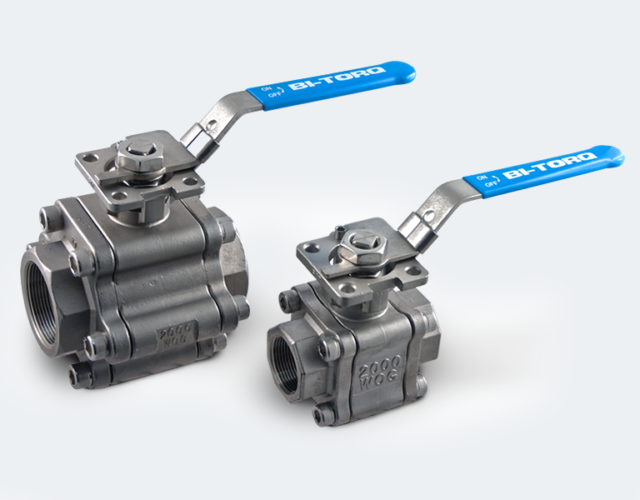

Manual

We offer spring-return dead-man handles, and limit switches can be mounted to the valve. Most come with ISO mounting pads for easy retrofit automation in the field.

  • API 607 certified fire-safe
  • Automated full port packages available from ¼” up to 6” depending on series
  • Body materials in stainless or carbon steel
  • NPT, socket weld, and 150# flanged end connections
  • Temperature ratings from -20ºF minimum to a maximum of +400ºF depending on series
  • Factory assembled and tested
