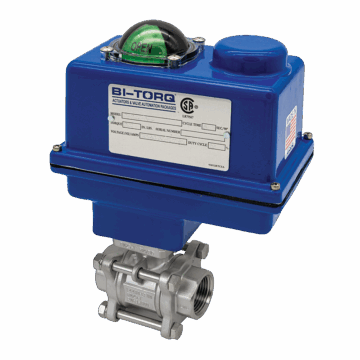

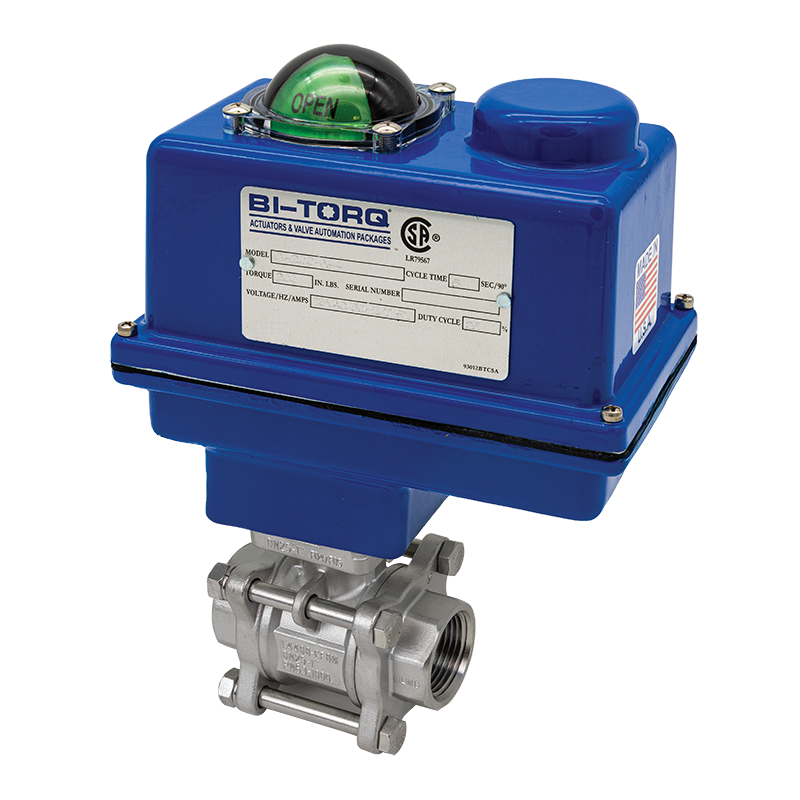

Fire Safe Ball Valve 3 Piece with Electric Actuator

BI-TORQ offers a selection of API 607 certified Fire-Safe ball valves in both actuated and manual configurations. Our fire-safe valves are offered as part of a complete thermal shut-off package to shut down tanks or piping in the event of a fire.

Strahman is one of the first companies in the industry to offer fully assembled automated ball valves under the BI-TORQ brand, so you can feel confident you are purchasing the best actuated ball valve, backed by the technical expertise to support it. Our experienced technical sales staff can help you choose the right automated ball valve and actuator for your application.

Fire-Safe Ball Valve features

• Full port 3-pc SS(FS) valve
• 1/4” through 2” size range
• NPT, socket weld ends
• RTFE® seats with graphoil seals
• Enclosed body bolts for extreme service
• ISO mounting pad
• API 607 4th edition fire safe

Pressure Rating

• 2000 PSI CWP

Temperature Rating

• +350°F Maximum
• -4°F Minimum

BI-Series Electric Actuator features

• 120V AC, 220V AC, 24V AC, 12V DC and 24V DC
• Supplied with NEMA 4. NEMA 4X and NEMA 7 housings are available upon request
• Manual overrides
• Visual indicator
• Open/close or modulating service

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the unit you receive may differ slightly depending on the actuator you select. Please refer to the data sheets for dimensions and technical drawings.
