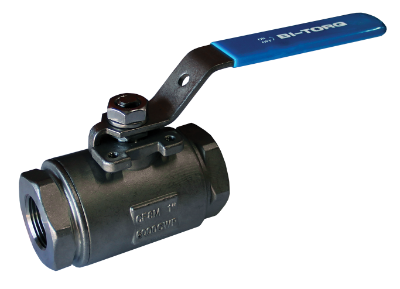

FS-3PT Ball Valves

Sign into view price
CODE: FS-3PT-RG-005 AVAILABILITY: In stock
Valve Size
Cv Coefficient
ISO 5211
BI TORQ mn fs3pt2
BI TORQ mn fs3pt2

Description

Valve Features

  • Full port 316 SS 3-piece ball valve; also available in WCB/SS in the FW Series
  • ISO 5211 mounting pad for direct mount actuation
  • API 607 Fire-Safe approved
  • 1/4” through 2” sizes
  • High-performance seat design
  • Self-adjusting stem packing
  • CRN, API and DIN certificates
  • Swing-out 3-piece design for easy maintenance/repair
  • NPT, butt weld or socket weld
  • Female pipe threaded to NPT, DIN 259/2999, BS21 standards
  • Inspection and testing to current API 598 standards
  • Enclosed body bolt design for extreme service conditions


Pressure Rating

  • 2000 PSI CWP

Temperature Rating

  • +350° F Maximum
  • -4° F Minimum
