Butterfly Valve Features
- Wafer Style Cast Iron BFVs 2” through 12” sizes
- SS stem and disc as standard
- EPDM, BUNA-N, VITON®, or PTFE seats–10″ and 12″ valves with PTFE seats are available by special order
- Direct mount for low-profile, cost-efficient operation
- BI Series Electric Actuators – Voltage standard is 115 VAC–other voltage options include 24 VDC, 24 VAC, 12 VDC, and 230 VAC
| SPECIFICATIONS | |
| Valve Size | Working Pressure |
| 2″ -8″ | 225 PSI |
| 10″ – 12″ | 150 PSI |
BI Series Electric Actuator Features
- 120VAC, 220VAC, 24VAC, 12V DC and 24V DC
- Supplied with NEMA 4. NEMA 4X and NEMA 7 housings are available upon request
- Manual overrides
- Visual indicator
- Open/close or modulating service

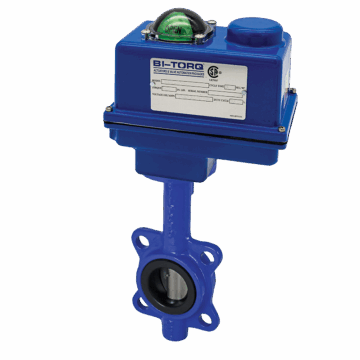

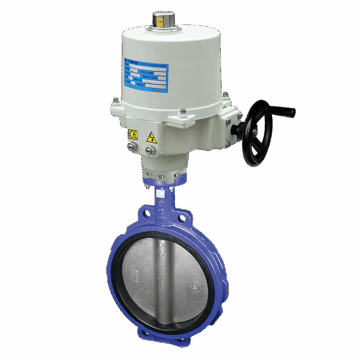

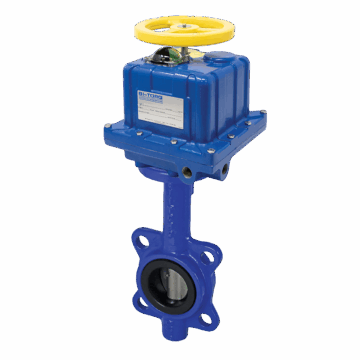

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
