Butterfly Valve Features
- Wafer Style Cast Iron Butterfly Valves (BFVs) 2” through 12” sizes
- Handwheel Gear Operator
- Stainless Steel stem and disc are standard on the unit
- EPDM, BUNA-N, VITON®, or PTFE seats available
- Direct mount for low-profile, cost-efficient operation
| SPECIFICATIONS | |
| Valve Size | Working Pressure |
| 2″ -8″ | 225 PSI |
| 10″ – 12″ | 150 PSI |

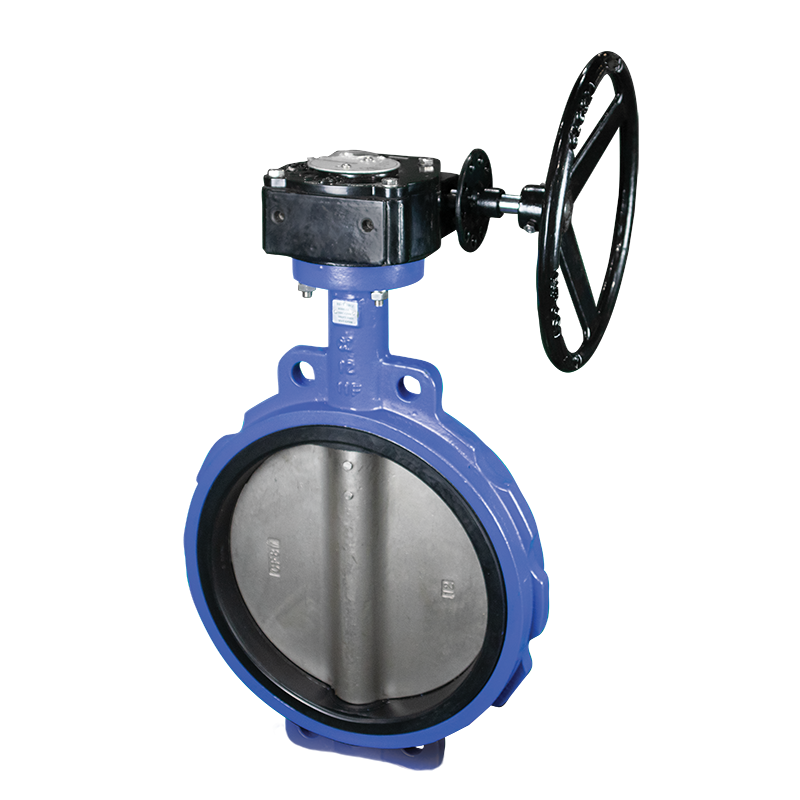

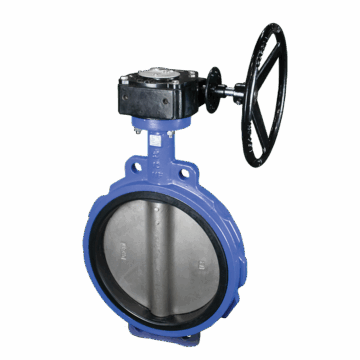

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
