IV-3PS (3-Piece) Pneumatic Actuated CPVC Ball Valves

BI-TORQ Electric Actuated Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product you can drop right into your line. BI-TORQ Ball Valves can handle a wide range of applications, including steam service and high-pressure applications. This series features a standard 2-way cpvc valve.

Strahman is one of the first companies in the industry to offer fully assembled automated ball valves, so you can feel confident you are purchasing the best actuated ball valve, backed by the technical expertise to support it. Our experienced technical sales staff can help you choose the right automated ball valve and actuator for your application.

Valve Specifications

• 2-Way CPVC valves
• 1/2” through 4” size range
• EPDM or Viton® body o-ring
• TFE® seats
• True union style
• Socket weld end connections
• Patented stem design to help prevent leakage in the event of stem damage

Pressure Rating

• 235 PSI at 73°F

Temperature Rating

• +140° F Maximum PVC
• +212° F Maximum CPVC

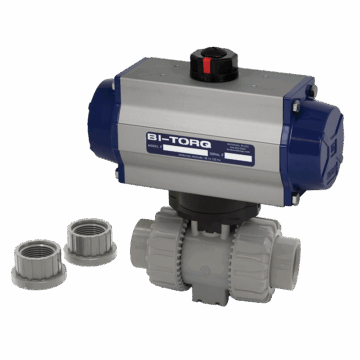

Please note that the above product image is representative of products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to the data sheets for dimensions and technical drawings.
