Ball Valve specifications
- 3-Way PVC valves (CPVC is optional)
- 1/2” through 2” size range
- TFE® seats
- EPDM, or Viton® body o-rings
- True union style
- Threaded or Socket Weld ends
- 3-seat design ideal for automation
Pressure Rating
Temperature Rating
- +140° F Maximum PVC
- +212° F Maximum CPVC
Pneumatic Actuator features

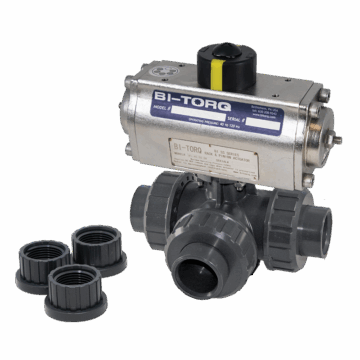

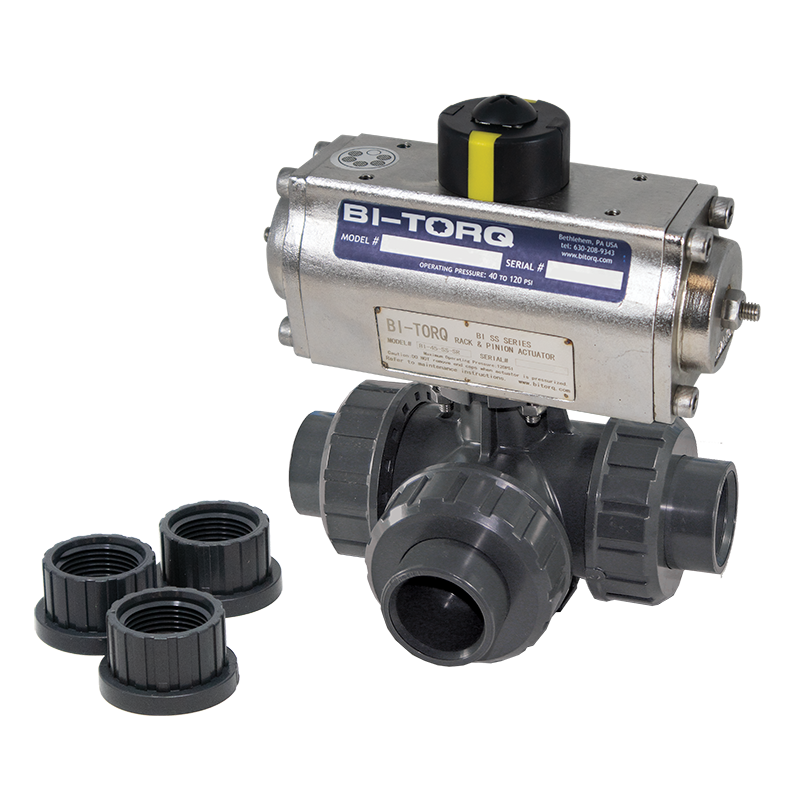

- Hard anodized extruded Aluminum housing with epoxy-coated end caps for maximum resistance to corrosion or All-Stainless Steel contruction (upon request)
- Double-acting (DA) or Spring-Return (SR) options; PN-32 not available with (SR) option
- Standard air supply pressure is 80 psi; Maximum pressure rating 120 PSI / 8 BAR
- Rack and pinion design for consistent torque output
- Anti-blowout system prevents damage from over-pressurization
- Fail open or fail closed configurations (Spring return models)
- ±5 degree adjustment in both open/closed positions
- ISO and NAMUR standards for top mounting for adding limit switches and positioners
- NAMUR airport configuration for easy solenoid mounting
- Limit switches, modulating positioners, NAMUR solenoids, and many other options are available (contact us)

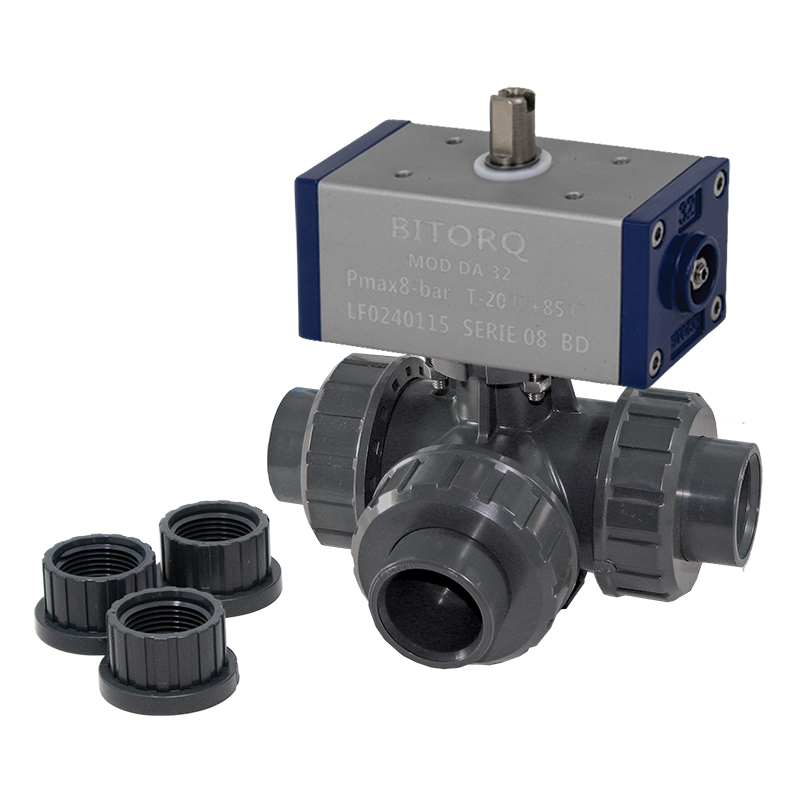

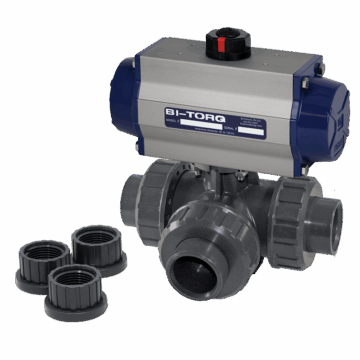

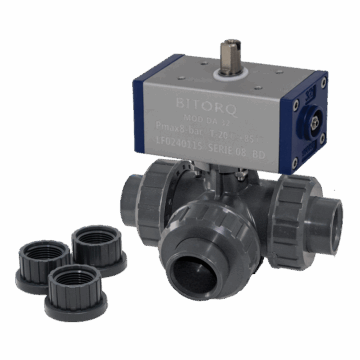

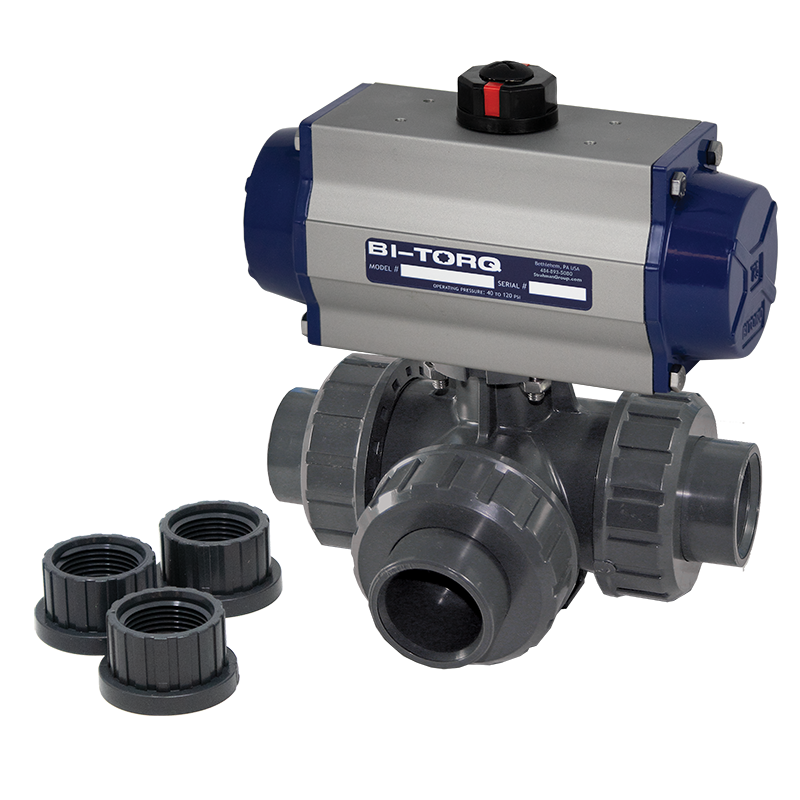

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
