Fire Safe 3 piece Ball Valve with Pneumatic Actuator

BI-TORQ Actuated Ball Valves are fully assembled and tested by our factory-trained personnel, giving you confidence that you will receive a product you can drop right into your line. BI-TORQ Ball Valves can handle a wide range of applications, including steam service and high-pressure applications. These units feature an API 607-certified Fire-Safe 3-piece full-port ball valve in Carbon Steel or Stainless Steel, with a stainless steel ball and stem, and include our Pneumatic Actuators, available in double-acting or spring-return configurations. Customization is possible by adding modulating positioners, NAMUR solenoids, proximity switches, speed control, and other options tailored for a specific application.

Strahman is one of the first companies in the industry to offer fully assembled automated ball valves under the BI-TORQ brand, so you can feel confident you are purchasing the best actuated ball valve, backed by the technical expertise to support it. Our experienced technical sales staff can help you choose the right automated ball valve and actuator for your application.

Fire Safe Ball Valve specifications

• Automated full port 3-pc valve with swing-out design for easy maintenance
• API 607 4th editon fire-safe
• Valve sizes 1/4” through 2”
• NPT ends are standard; Socket weld ends are available by request
• High-performance RTFE® seats with graphoil seals
• Enclosed body bolts for extreme service
• ISO 5211 mounting pad for direct mount actuation

Pressure Rating

• 2000 PSI CWP

Temperature Rating

• +350°F Maximum
• -4°F Minimum

Pneumatic Actuator

• Hard anodized extruded Aluminum housing with epoxy-coated end caps for maximum resistance to corrosion or All-Stainless Steel contruction (upon request)
• Double-acting (DA) or Spring-Return (SR) options; PN-32 not available with (SR) option
• Standard air supply pressure is 80 psi; Maximum pressure rating 120 PSI / 8 BAR
• Rack and pinion design for consistent torque output
• Anti-blowout system prevents damage from over-pressurization
• Fail open or fail closed configurations (Spring return models)
• ±5 degree adjustment in both open/closed positions
• ISO and NAMUR standards for top mounting for adding limit switches and positioners
• NAMUR airport configuration for easy solenoid mounting
• Limit switches, modulating positioners, NAMUR solenoids, and many other options are available (contact us)

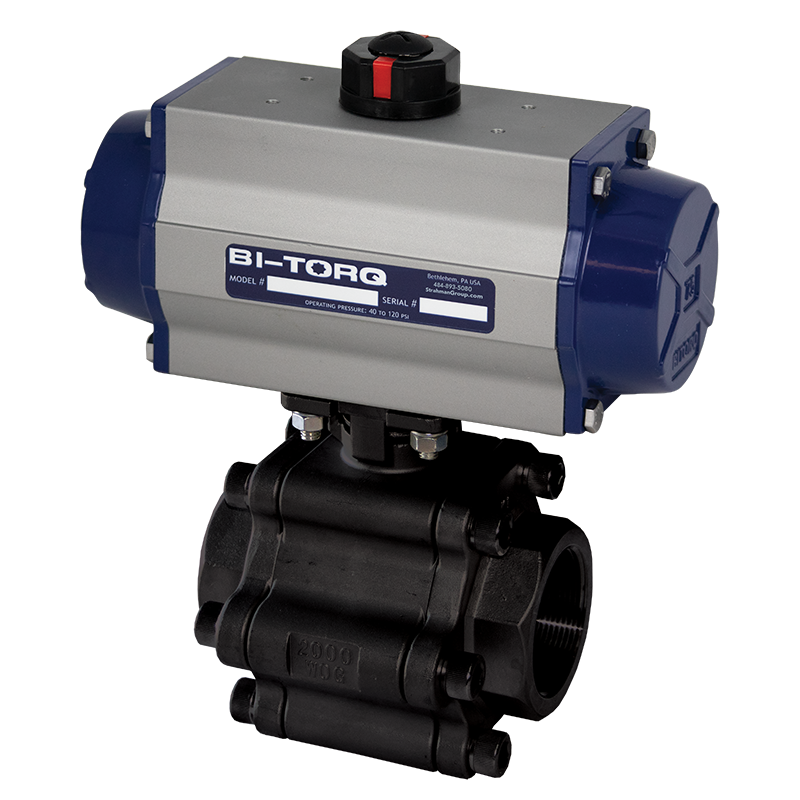

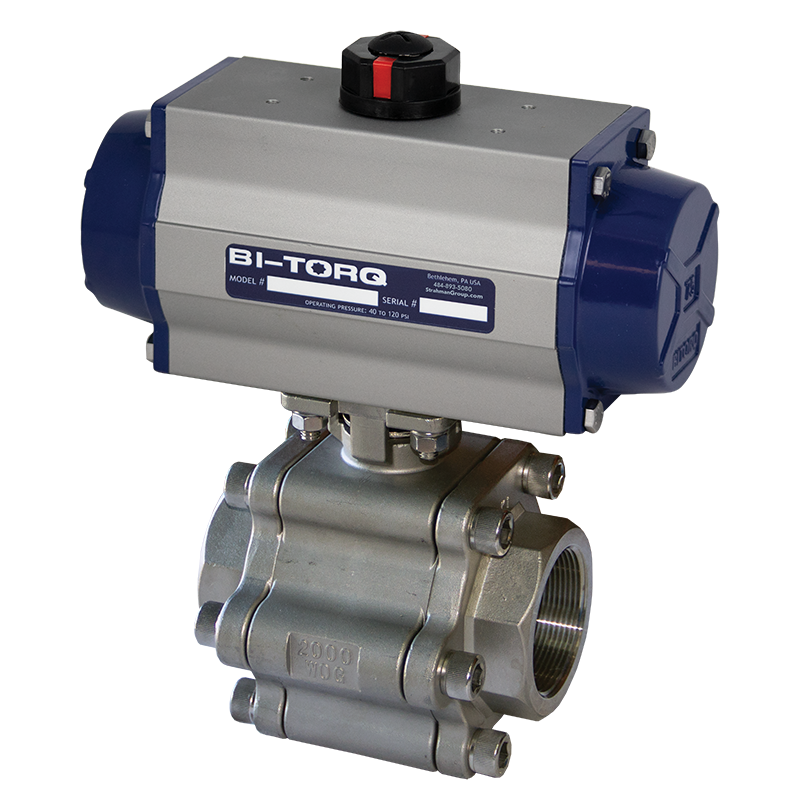

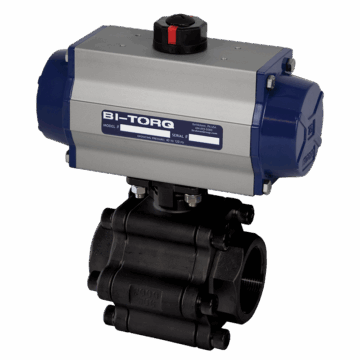

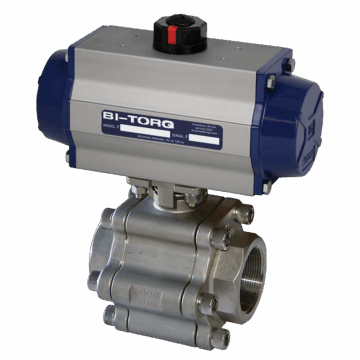

Please note that the product image shown is representative of products in this series. While we strive to be as accurate as possible, the product you receive may slightly differ in appearance depending on the valve size.
