Fire Safe 3 Piece Ball Valves

BI-TORQ offers a selection of API 607 certified Fire-Safe ball valves in both actuated and manual configurations. Our fire-safe valves are offered as part of a complete thermal shut-off package to shut down tanks or piping in the event of a fire.

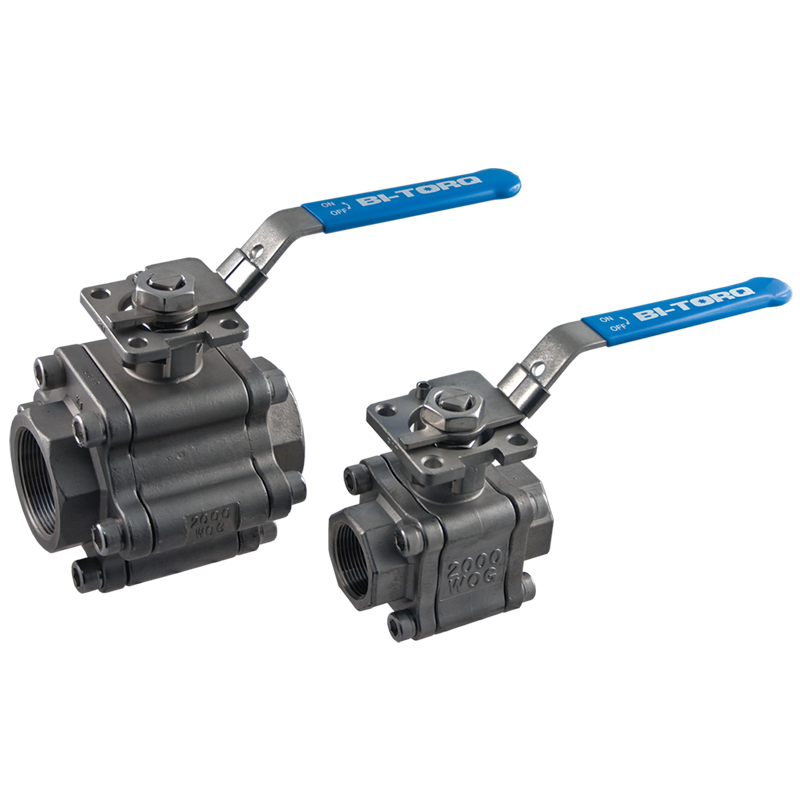

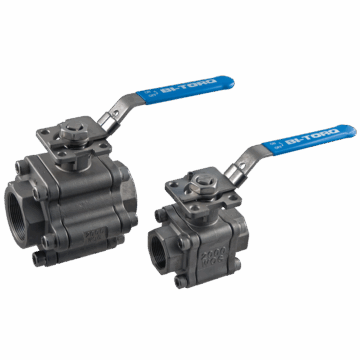

These units, featuring a 3-piece full-port option in Carbon Steel or Stainless Steel with a stainless steel ball and stem, are manually operated.

Valve Features

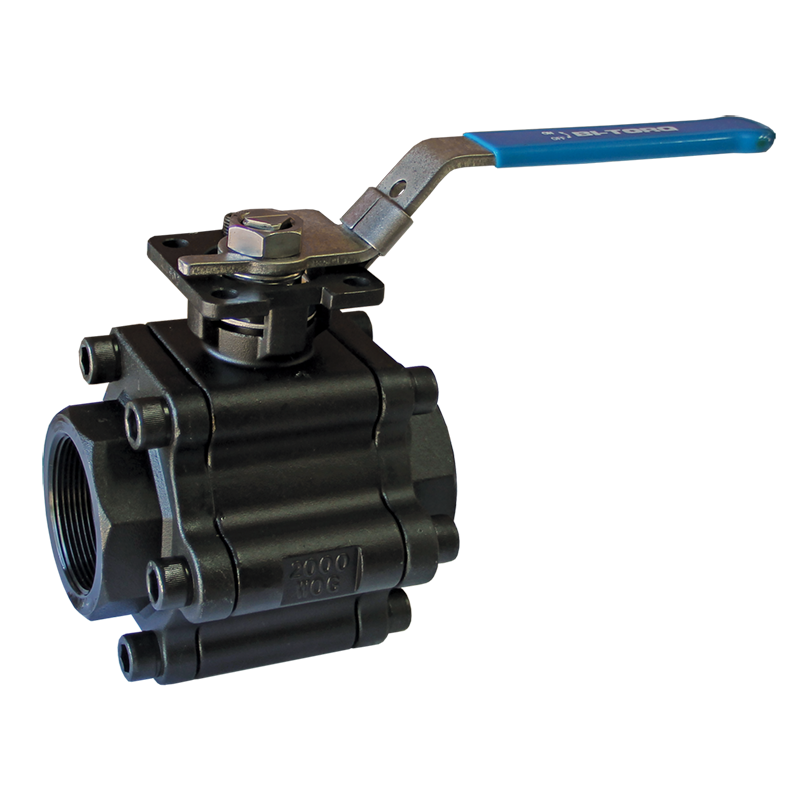

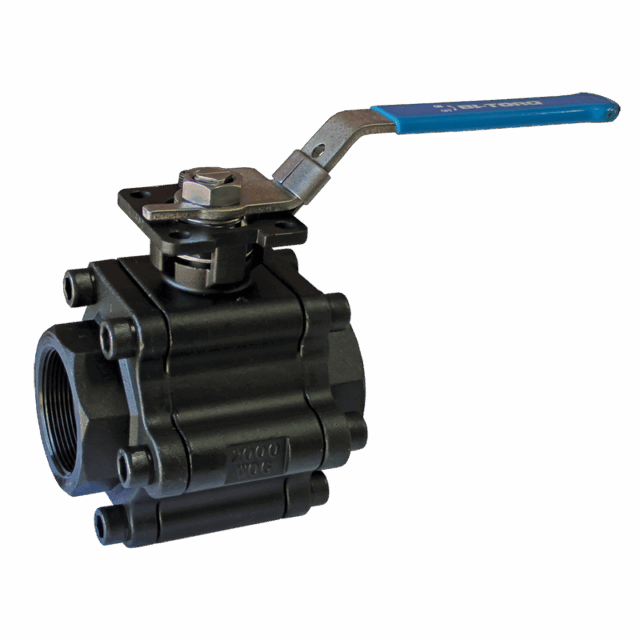

• Full port 316 SS 3-piece ball valve; also available in WCB/SS in the FW Series
• ISO 5211 mounting pad for direct mount actuation
• API 607 Fire-Safe approved
• 1/4” through 2” sizes
• High-performance seat design
• Self-adjusting stem packing
• CRN, API, and DIN certificates
• Swing-out 3-piece design for easy maintenance/repair
• NPT or socket weld
• Female pipe threaded to NPT, DIN 259/2999, BS21 standards
• Inspection and testing to the current API 598 standards
• Enclosed body bolt design for extreme service conditions

Pressure Rating

• 2000 PSI CWP

Temperature Rating

• +350° F Maximum
• -4° F Minimum

Please note that the above product image is representative of products in this series. While we strive to be as accurate as possible, the unit you receive may differ slightly depending on the actuator you select. Please refer to the data sheets for dimensions and technical drawings.
