Half Coupling Connectors

Sign into view price
CODE: SV500COUP0012 AVAILABILITY: In stock
Model
Connector

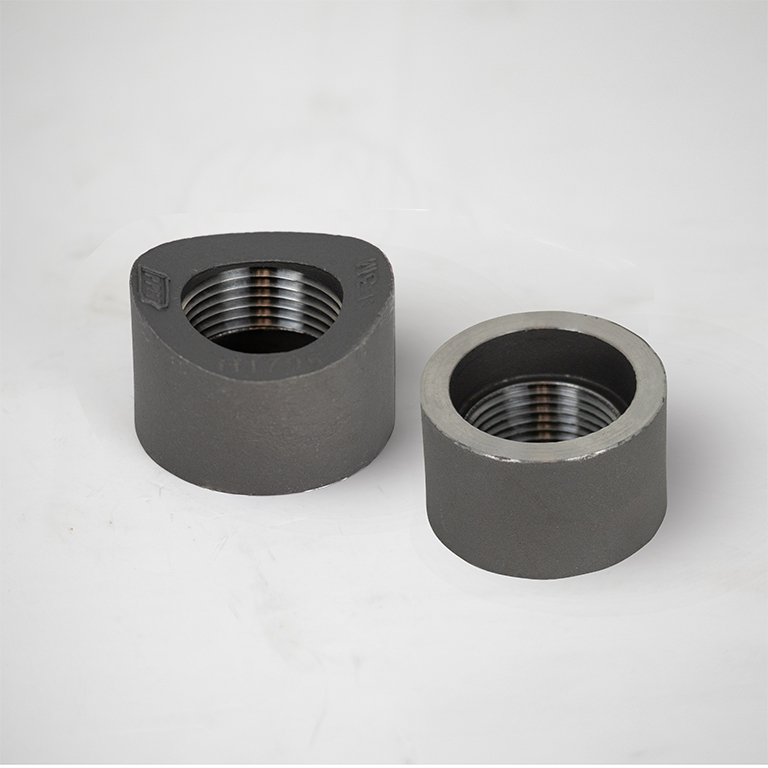

Strahman SV Couplings
Strahman SV Couplings couplings 2

Description

Our Contoured and Non-Contoured Half Coupling Connectors make for a quick sample valve installation by sliding into a hole drilled into a pipeline. A socket weld is used to attach it to the pipe while the other end is threaded to receive the sample valve. A Contoured Half Coupling will match the inside of the pipe for an unobstructed flow and is normally used for smaller pipe sizes up to 6". Non-Contoured Half Couplings are more commonly used for pipes over 6". Made from 316 SS.

  • Standard Couplings are made from 316 SS
  • Other materials to match the customer's piping are available such as Alloy 20, Nickel, Hastelloy B or C, Monel, Titanium, or Inconel at customer's request

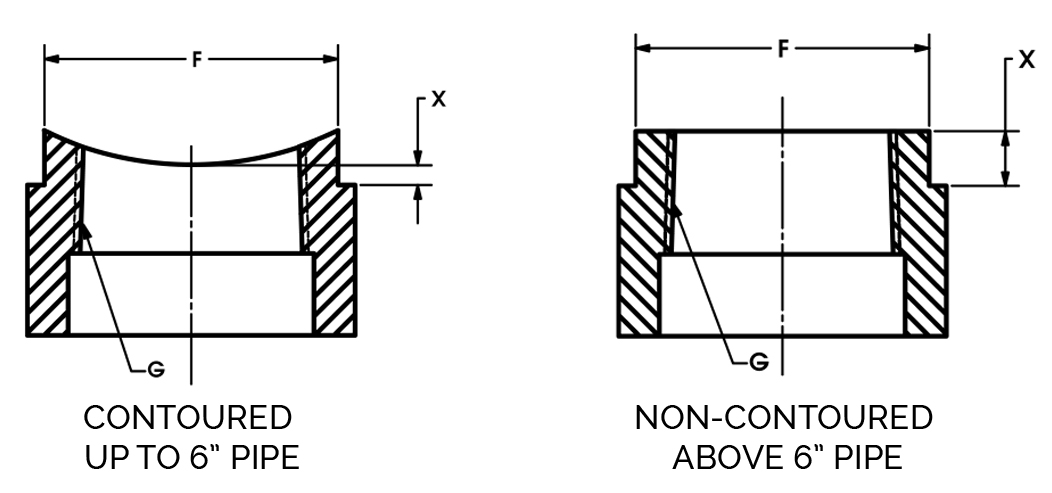

X = Specify pipe size and schedule number of tank wall thickness when inquiring.


VALVE PIPE SIZE
CONTOURED
PIPE SIZE
NON-CONTOURED
F G NPT MAXIMUM WALL THICKNESS

SV500

2" up to 6" Over 6"

1-11/32"

3/8"

1/2" CONTOURED / 11/16" NON-CONTOURED

SV600

2" up to 6" Over 6"

1-11/32"

1/2"

1/2" CONTOURED / 11/16" NON-CONTOURED

SV700

2" up to 6" Over 6"

1-11/32"

3/4"

1/2" CONTOURED / 11/16" NON-CONTOURED

SV800

3" up to 6" Over 6"

1-3/4"

1"

11/16"

SV900 3" up to 6" Over 6" 2-3/32" 1-1/4" 13/16"
SV1000 3" up to 6" Over 6" 2-5/16" 1-1/2" 7/8"


Strahman original parts and tools help make installation easier and ensure a tight fit to the process line.

Strahman serves a wide variety of industries and process applications, and we understand there are needs for custom designs to fit custom applications. If you don’t see your process or application, chat with us, or click Contact Us, and we would be happy to work with you on a custom design to meet your specific requirements.


NOTE:  The image above is representative of the products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.
