Live Sample Extraction Containers

CODE: SVBA

Description

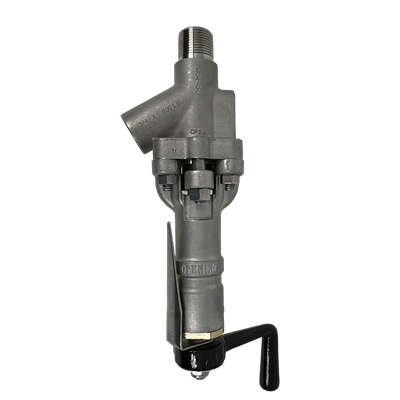

Sample extraction during live production process is often discharged in open containers. But, there are risks to the operator including accidental spills, overages, and exposure to toxic fluids or hot temperatures. Strahman recommends extraction devices that reduce the risks and puts safety first. Our Sampling Valve Extraction Containers enable the operator to safely and efficiently extract live samples from their process line and take prompt corrective action as needed. These are designed to fit our standard SV series or can be customizable to customer inlet/outlet thread specifications.

Sample Valve Live Extraction Containers Features:

Safe and reliable extraction
Reduces the risk of dangerous spills, splashes and overages
Provides maximum protection for the operator
Customizable to your specifications of thread-type required

PRODUCT	CODE	DESCRIPTION

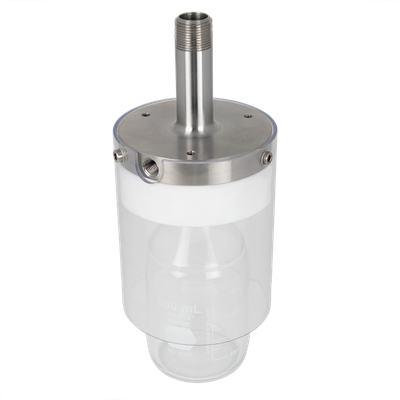

Bottle Adapter	SVBA	Polycarbonate protective shield GL45 Threaded Glass, 250ML or 500ML (customer may also supply their own) Glass Bottle maximum temperature to 400ºF / 100 Kelvin Thermal Shock rating Flanged or threaded adapter per customer specs ⅛” x ¼” NPT vent
Locking Bottle Adapter	SVLBA	Outer shield of solid SS316 construction, inner liner of glass for added level of protection GL45 Threaded Glass, 250ML or 500ML (customer may also supply their own) Glass Bottle maximum temperature to 400ºF / 100 Kelvin Thermal Shock rating ⅛” x ¼” NPT vent

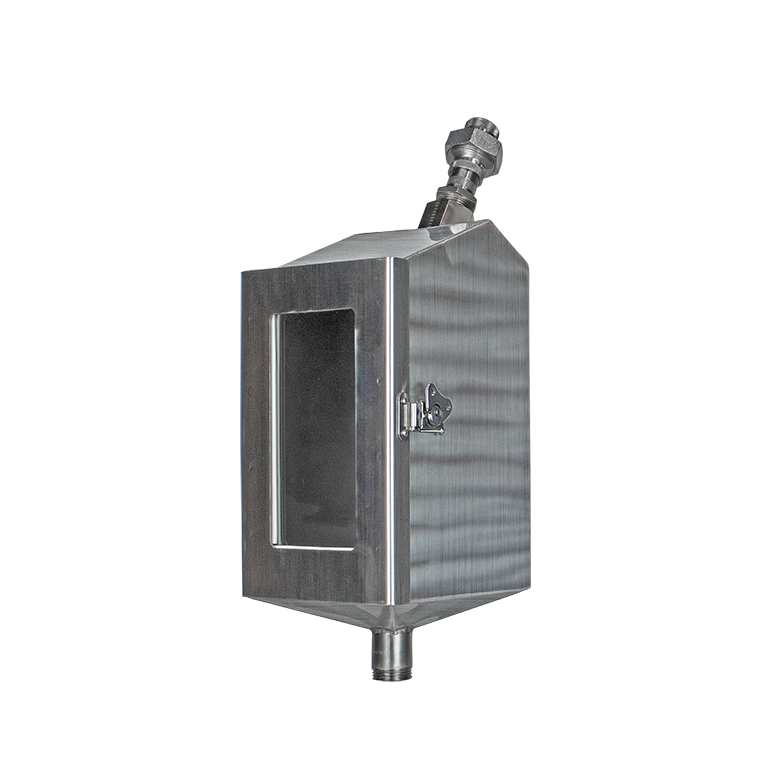

Box Container	SVBC	Heavy-duty brushed aluminum 316L or 6061 (other materials available upon request) 6-½”w x 7-¼”d x 15-¼”h (custom sizes upon request) Locking hinge for added security Glass window for viewing; add your own container to receive the sample

Please note that the above product image is representative of products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets for dimensions and technical drawings, if applicable.

Strahman serves a wide variety of industries and process applications, and we understand there are needs for custom designs to fit custom applications. If you don’t see your process or application, chat with us, or Contact Us , and we would be happy to work with you on a custom design to meet your specific requirements.
