Central Water Line Washdown Stations

Complete Point-of-Use Drop-Down Kits for Hot or Cold Water Lines

Strahman Central Water Line Washdown Stations provide a complete point-of-use cleaning solution for facilities with hot or cold water distributed from a central supply line. Each kit combines a Strahman single-water hose station, industrial washdown hose, and an ergonomic Hydro-Pro 150® spray nozzle with a Swivel-Pro, making it easier to establish dependable and accessible washdown points throughout a processing or manufacturing facility.

Installed at designated locations along the facility’s water distribution line, these drop-down line kits give operators convenient access to washdown equipment wherever routine cleaning is required. They are sometimes referred to as drop-down line kits, washdown drop stations, centralized washdown stations, or point-of-use washdown stations.

A Complete Washdown Connection in One Kit

A drop-down line kit creates a dedicated washdown point from an available hot or cold water supply. Instead of selecting the station, hose, nozzle, and swivel separately, each Strahman kit packages the essential components into one defined configuration.

Use the options below to match the assembly to your facility requirements for water supply, washdown-area color practices, and required reach.

What is Included in Every Drop-Down Line Kit?

  • One M-120, M-756, or M-156N single-water hose station

  • One extruded hose assembly with 5/8-inch inside diameter and 3/4-inch male NPT connection

  • One Hydro-Pro 150® industrial spray nozzle

  • One Swivel Pro® adapter

  • Available configurations include hot-water and cold-water models; black, white, or yellow hose options; and 25-, 50-, 75-, or 100-foot hose lengths.

Choose the Right Station for Your Application

Start with the station body material and valve style required for the washdown point. All three station platforms are available as complete hot- or cold-water kits with the same range of hose lengths and color choices.

STATIONMATERIALSVALVE STYLEBEST SELECTION STARTING POINT

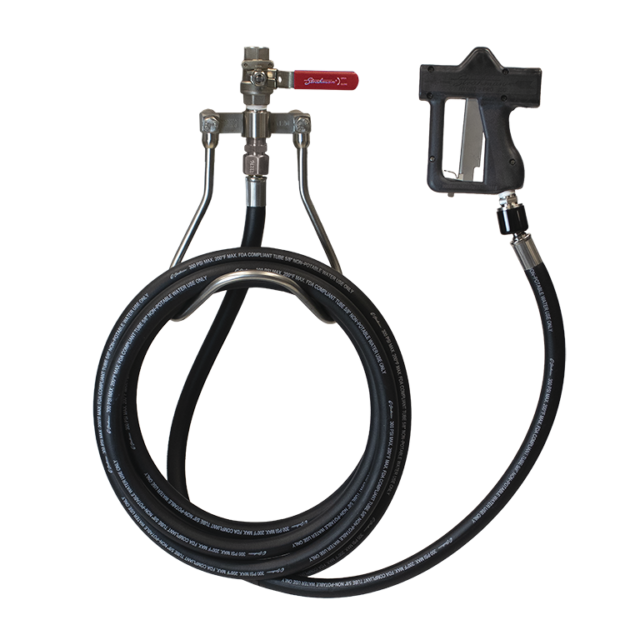

M-120Stainless SteelBall ValveSelect when stainless steel construction and ball valve operation are preferred.

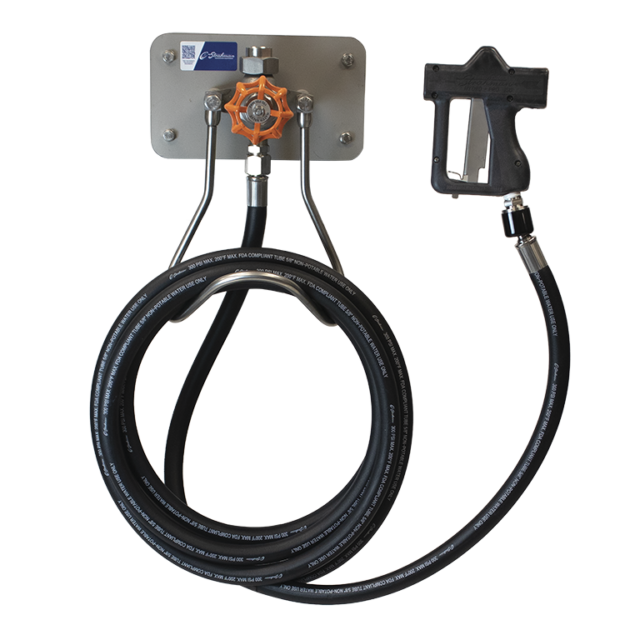

M-756Stainless SteelGlobe ValveSelect when stainless steel construction and globe valve operation are required.

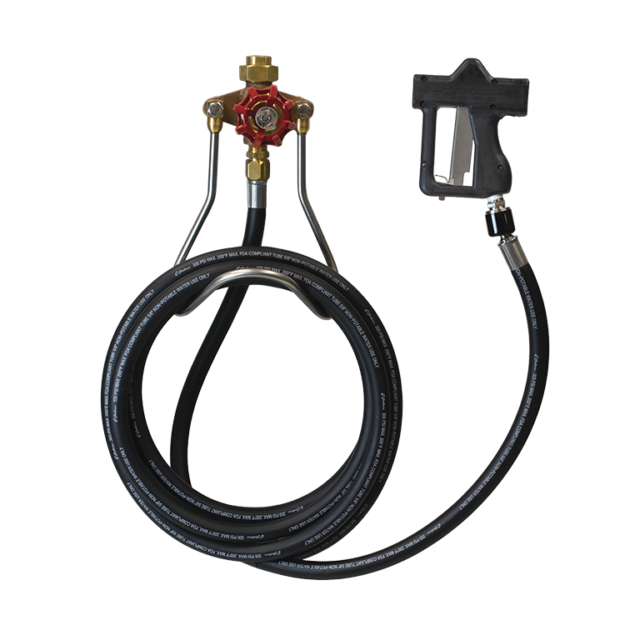

M-156NBronzeGlobe ValveSelect when the application calls for a bronze single-water station with globe-valve operation.

Built Around the Washdown Point

Strahman Drop-Down Line Kits are designed for facilities that need a complete hose-and-nozzle assembly connected to a single hot or cold water line. They can support washdown access in food and beverage plants, commercial kitchens, processing areas, production facilities, and other environments where dependable and accessible point-of-use cleaning equipment is required.

Because these are single-water assemblies, they differ from steam-and-cold-water mixing stations. Confirm the available water source and operating requirements before selecting a kit.

Configure Your Drop-Down Line Kit

Each product configuration is defined by four choices:

  • Station type: M-120 stainless steel ball valve, M-756 stainless steel globe valve, or M-156N bronze globe valve
  • Water service: hot water or cold water
  • Hose and nozzle color: black hose with black nozzle; white hose with white nozzle; or yellow hose with black nozzle
  • Hose length: 25, 50, 75, or 100 feet

Hot-Water and Cold-Water Configurations

Choose a kit designed for the temperature of the connected water supply. Hot- or cold-water configurations use visually differentiated station handles to help identify the service at the washdown point. Handle colors vary by station model.

STATIONHOT-WATER HANDLECOLD-WATER HANDLE
M-120 Stainless steel ball valveRedBlue
M-756 Stainless steel globe valveOrangeBlue
M-156N Bronze Globe ValveRedBlack

Select Hose Length and Color

Choose a hose length that reaches the intended cleaning area without creating unnecessary excess hose. Drop-Down Line Kits are available with 25-, 50-, 75-, and 100-foot hose assemblies.

Black, white, and yellow hose options support facility preferences and visual organization. White hose configurations include a white Hydro-Pro 150® nozzle. Black and yellow hose configurations include a black Hydro-Pro 150® nozzle.

Need help choosing? Contact Us to confirm the correct configuration for your application.

Frequently Asked Questions

What is a drop-down line kit?

A Strahman Drop-Down Line Kit is a complete single-water washdown assembly. It combines a hot- or cold-water hose station, hose assembly, Hydro-Pro 150® spray nozzle, and Swivel Pro® adapter in one selectable kit.

What component are included in a drop-down line kit?

Every kit includes one M-156N, M-756, or M-120 hose station; one extruded 5/8-inch-ID hose assembly with a 3/4-inch male NPT connection; one Hydro-Pro 150® spray nozzle; and one Swivel Pro® adapter.

Are the kits available for both hot and cold water?

Yes. Each station platform is available in hot-water or cold-water configurations.

Which station types are available for the drop-down line kits?

Choose an M-156N bronze globe-valve station, an M-756 stainless steel globe-valve station, or an M-120 stainless steel ball-valve station.

What hose lengths are available?

Drop-Down Line Kits are available with 25-, 50-, 75-, or 100-foot hose assemblies.

What hose colors are available?

Choose black, white, or yellow hose. Pair black hose with a black nozzle, white hose with a white nozzle, and yellow hose with a black nozzle.

Do these kits mix steam and cold water?

No. These kits connect to a single hot or cold water supply. For applications that require steam-and-cold-water mixing, select an appropriate Strahman mixing station instead.

How do I choose the correct kit?

Start with the required station material and valve style, then select hot or cold service, hose color, and hose length. Confirm temperature, pressure, connection, installation, and facility requirements before ordering.
