Stainless Steel Globe Valve Drop-Down Line Kit

The Strahman M-756 Drop-Down Line Kit combines three essential components into one coordinated solution for routine cleaning and sanitation: an M-756 wall-mounted hose station, an ergonomic Hydro-Pro 150® spray nozzle with swivel, and a durable extruded hose assembly. Designed for use with a single hot or cold water supply, the washdown kit eliminates the need to select and source each component separately, making maintenance straightforward and dependable for facility managers.

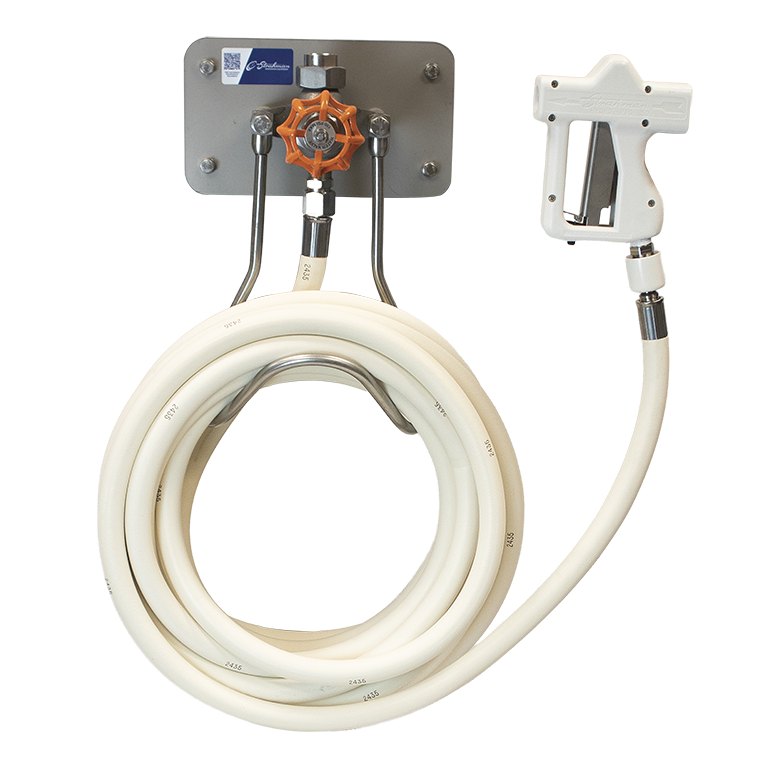

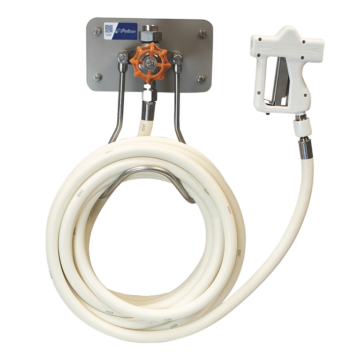

The stainless steel M-756 washdown station is at the center of the system and features a top-entry globe valve, hose rack, mounting plate, and installation hardware. Paired with the lightweight, ergonomic Hydro-Pro 150® spray nozzle and a flexible extruded hose, the kit offers versatile water control, comfortable handling, and convenient hose storage. It is a practical and accessible washdown solution for food and beverage plants, commercial kitchens, manufacturing facilities, and other environments requiring frequent equipment or surface cleaning at the point of use.

Product Features

• M-756 single hose station is designed for hot (orange handle) or cold water (blue handle)
• Compact and easy-to-use point-of-use cleaning solution for industrial environments
• Cast-iron handwheel provides a comfortable grip

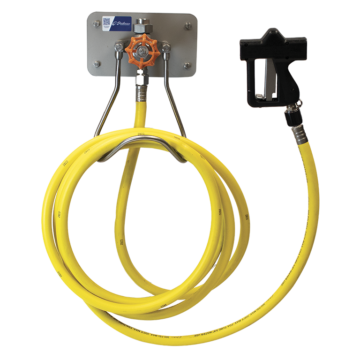

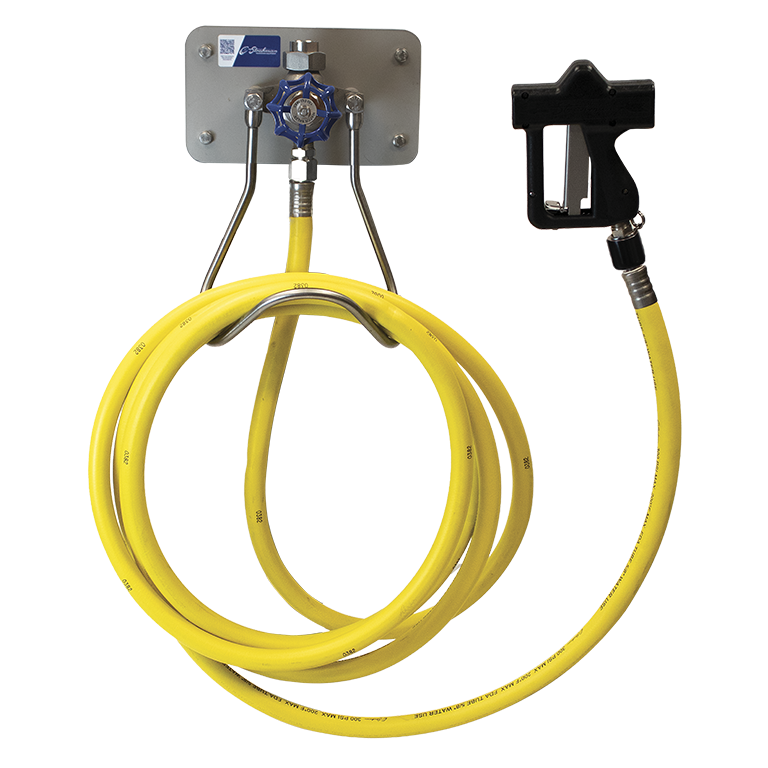

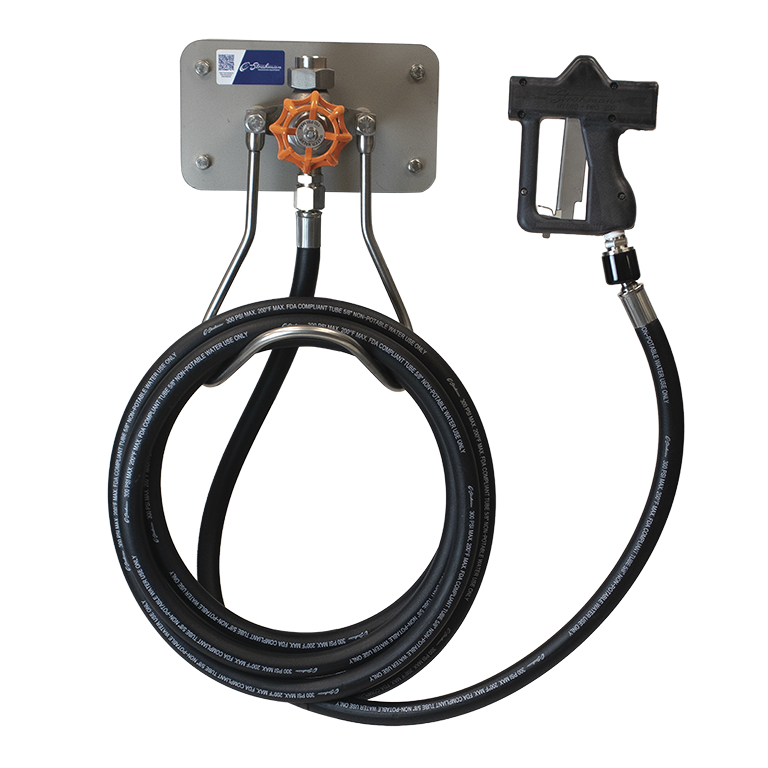

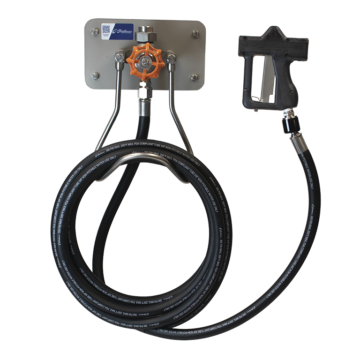

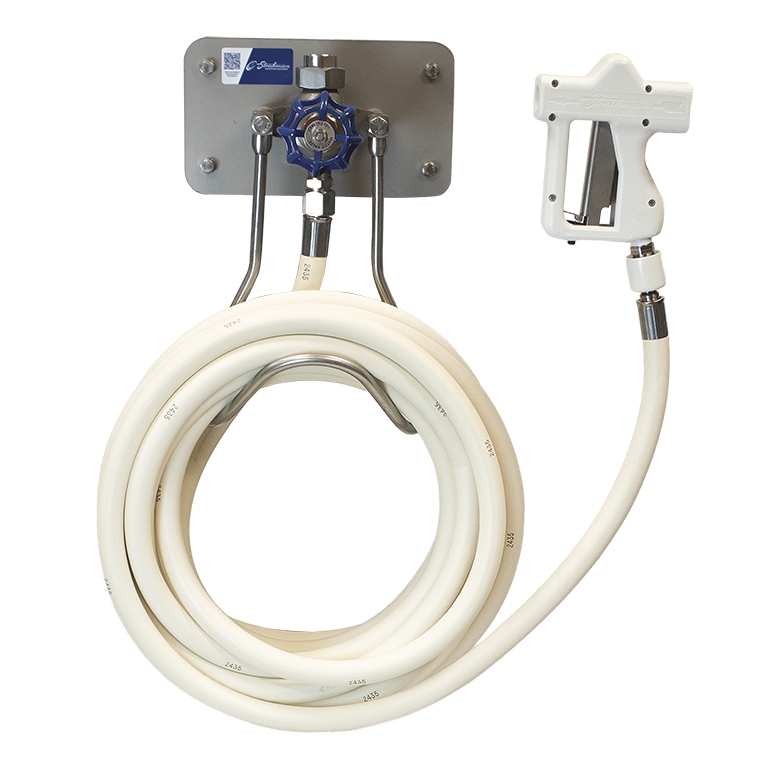

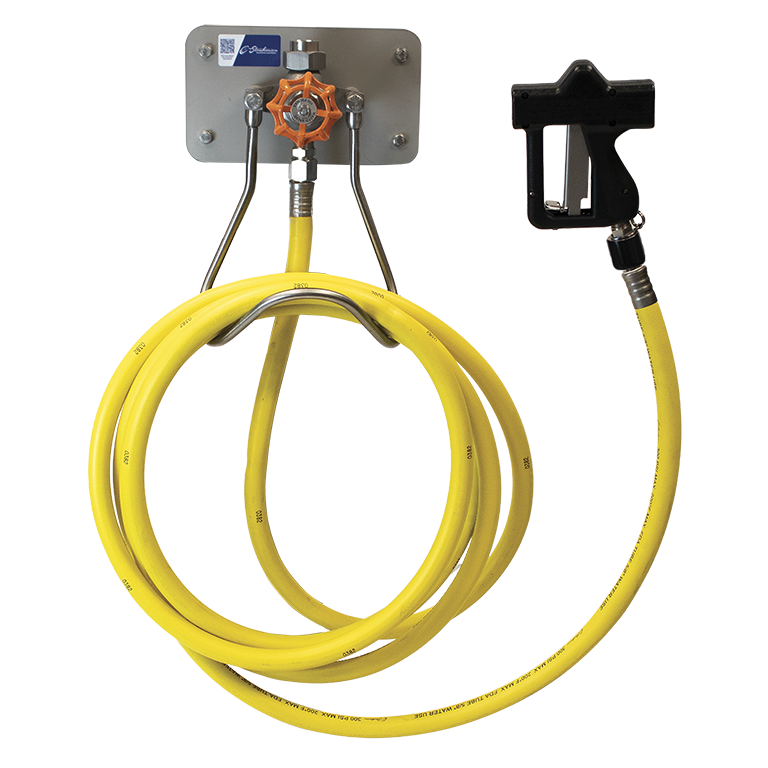

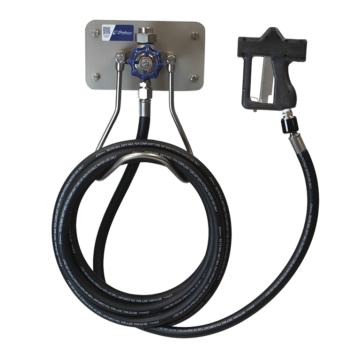

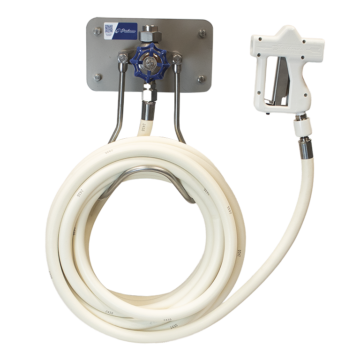

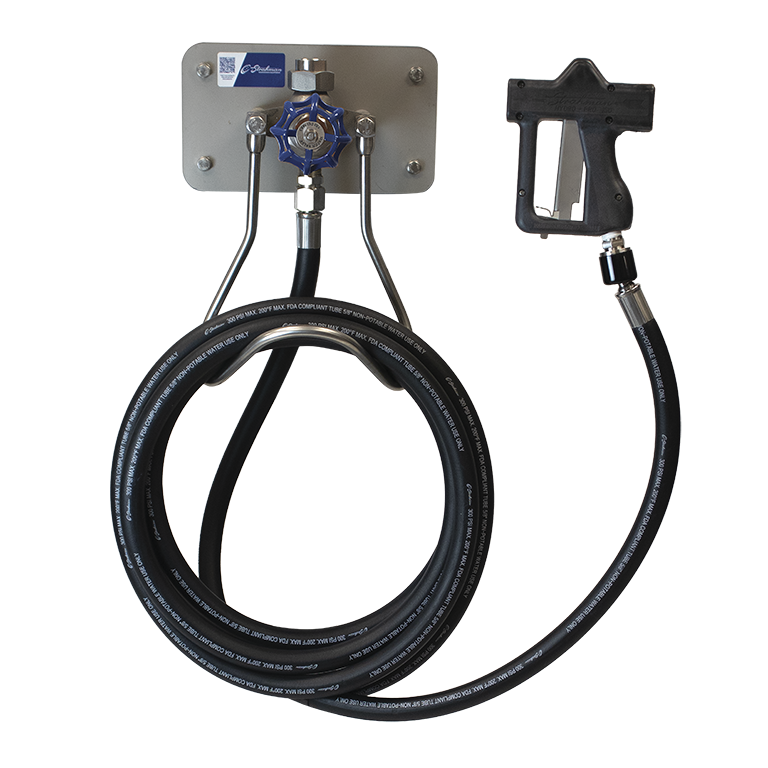

• Available with Black Hose and Black Nozzle, Yellow Hose and Black Nozzle, or White Hose and White Nozzle
• Hose is lightweight and flexible
• Hose outer cover provides superior resistance to degradation and abrasion, as well as resistance to lactic acid and oil
• Non-potable water only
• Standard hose lengths of 25′, 50′, 75′, and 100′–custom lengths available up to 100′
• Hydro-Pro 150®
  • Patented locking trigger mechanism with a safety lock to prevent accidental sprays
  • Stainless steel seat design prevents leakage
  • Stay-cool technology even when hot water (up to 200ºF) is in use
  • Ergonomic design: Swivel-Pro adapter combined with the spray nozzle’s lightweight design (under 2 lbs) minimizes operator fatigue

Inputs and Outputs

• Maximum Water Pressure: 150 psi
• Hose Maximum Water Pressure: 300 psi
• Temperature range: -22°F (-30°C) to 200°F (93°C)
• Output: 3-1/4 to 9 GPM for pressure ranges from 20 psi to 100 psi

Specifications

• Valve
  • Material: Stainless Steel
  • Stainless Steel Hose Rack
  • Mounting Hardware Included
• Hose
  • Material: NBR
  • Reinforced with polyester fabric, 1 braid
  • Fittings: Stainless steel 3/4″ NPT on unit end
  • FDA-Compliant: Safe for food contact
  • FDA CFR Title 211, item 177.2600 standards for fatty foods
  • IANESCO certificate nr. 10/11358 for milk and yogurt
• Hydro-Pro 150® Nozzle
• Swivel-Pro Adapter

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on your selection. Please refer to data sheets and technical drawings for dimensions.
