Bronze Globe Valve Drop-Down Line Kit

The Strahman M-156 Drop-down Line Kit brings together the essential components needed for dependable hot- or cold-water washdown in one convenient package. Designed for facilities that need a single water source, the kit combines the wall-mounted M-156N bronze washdown station, a lightweight and ergonomic Hydro-Pro 150® spray nozzle with swivel, and a flexible extruded washdown hose.

Together, these components provide a durable, easy-to-operate solution for routine cleaning in food and beverage plants, commercial kitchens, manufacturing facilities, and other industrial environments. The compact station controls water flow at the source, while the ergonomic spray nozzle delivers an adjustable spray pattern for targeted cleaning. The flexible hose provides the reach and maneuverability operators need to clean equipment, floors, walls, and work areas efficiently.

By packaging the washdown station, spray nozzle, and hose as one coordinated washdown kit, the M-156 simplifies product selection and provides the core equipment needed to establish a complete and easily accessible washdown point.

Product Features

• M-156 single hose station is designed for hot (orange handle) or cold water (Black handle)
• Compact and easy-to-use point-of-use cleaning solution for industrial environments
• Cast-iron handwheel provides a comfortable grip

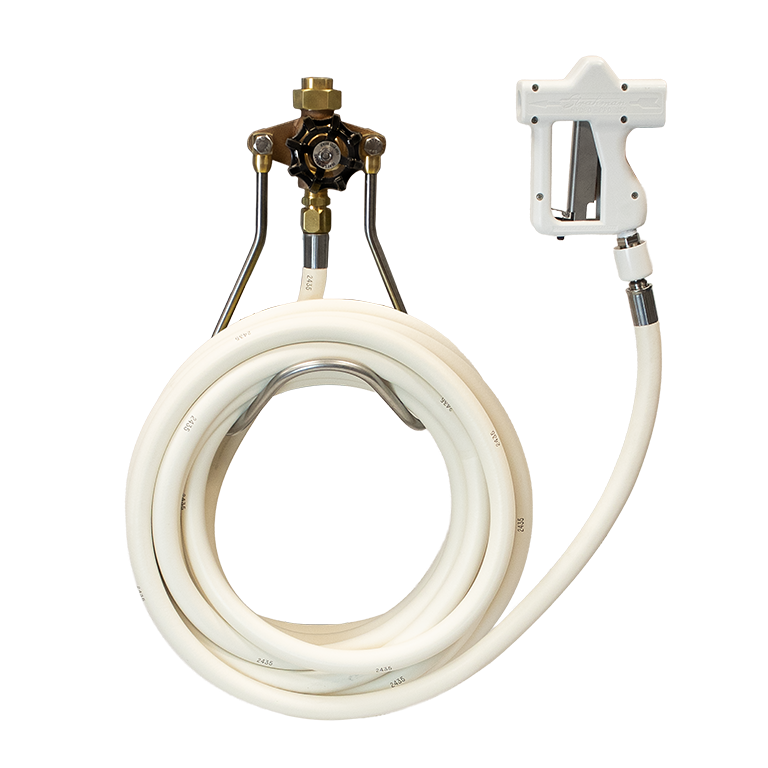

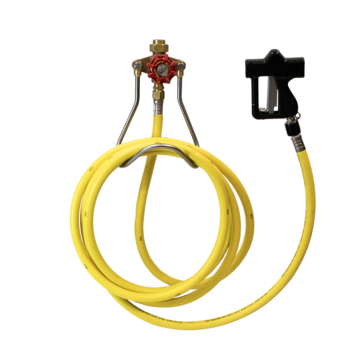

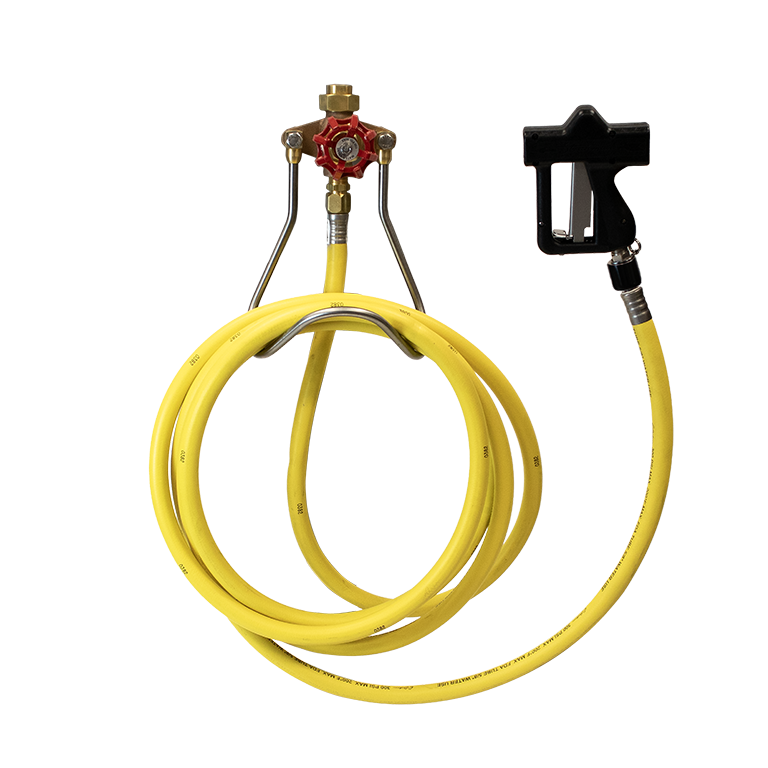

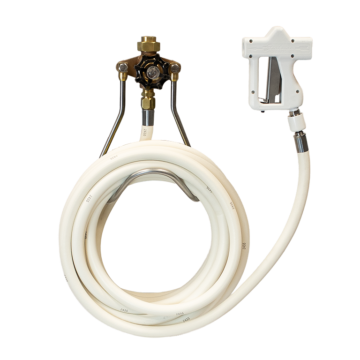

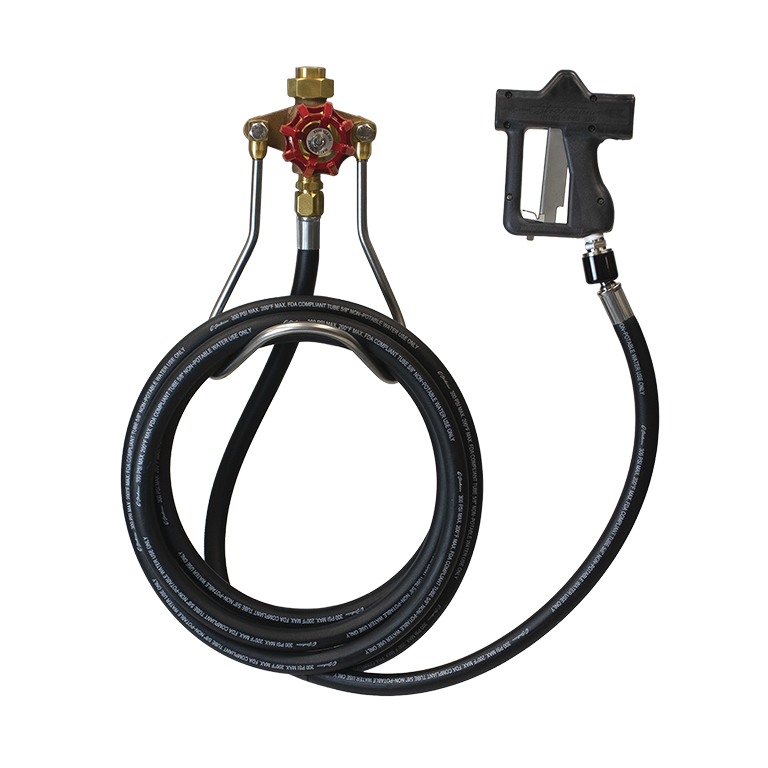

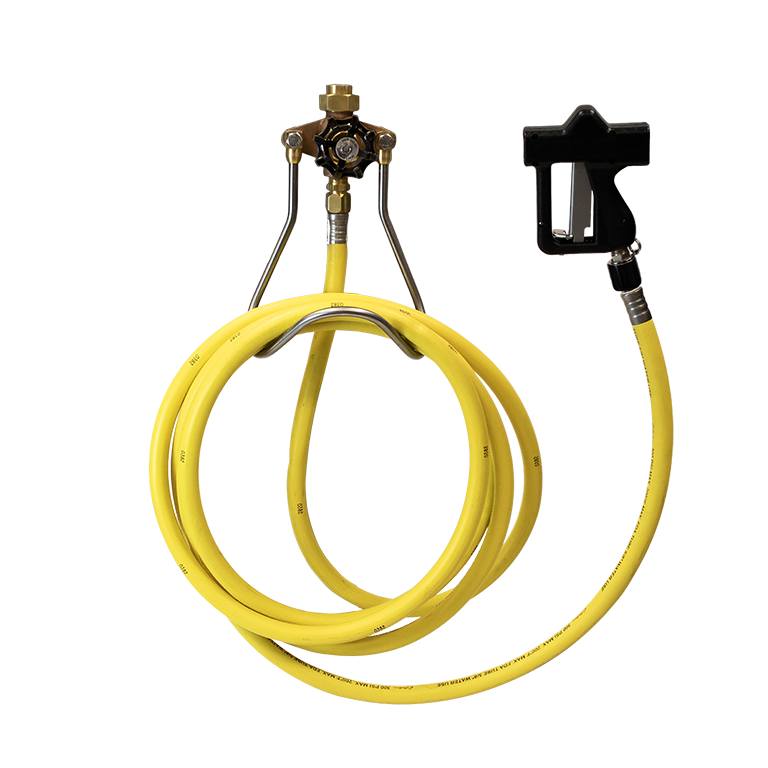

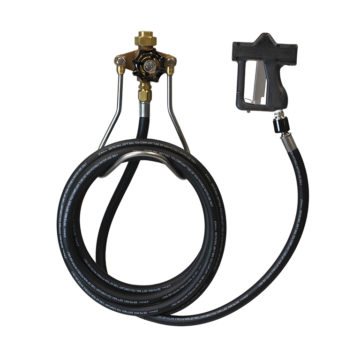

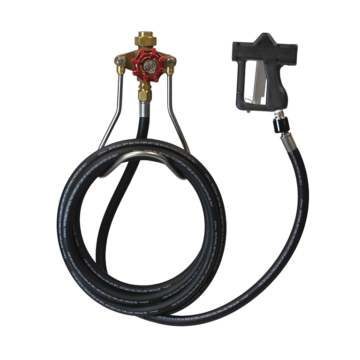

• Available with Black Hose and Black Nozzle, Yellow Hose and Black Nozzle, or White Hose and White Nozzle
• Hose is lightweight and flexible
• Hose outer cover provides superior resistance to degradation and abrasion, as well as resistance to lactic acid and oil
• Non-potable water only
• Standard hose lengths of 25′, 50′, 75′, and 100′–custom lengths available up to 100′
• Hydro-Pro 150®
  • Patented locking trigger mechanism with a safety lock to prevent accidental sprays
  • Stainless steel seat design prevents leakage
  • Stay-cool technology even when hot water (up to 200ºF) is in use
  • Ergonomic design: Swivel-Pro adapter combined with the spray nozzle’s lightweight design (under 2 lbs) minimizes operator fatigue

Inputs and Outputs

• Maximum Water Pressure: 150 psi
• Hose Maximum Water Pressure: 300 psi
• Temperature range: -22°F (-30°C) to 200°F (93°C)
• Output: 3-1/4 to 9 GPM for pressure ranges from 20 psi to 100 psi

Specifications

• Valve
  • Material: Bronze
  • Stainless Steel Hose Rack
  • Mounting Hardware Included
• Hose
  • Material: NBR
  • Reinforced with polyester fabric, 1 braid
  • Fittings: Bronze 3/4″ NPT on unit end
  • FDA-Compliant: Safe for food contact
  • FDA CFR Title 211, item 177.2600 standards for fatty foods
  • IANESCO certificate nr. 10/11358 for milk and yogurt
• Hydro-Pro 150® Nozzle
• Swivel-Pro Adapter

NOTE: The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may differ slightly depending on your selection. Please refer to data sheets and technical drawings for dimensions.
