How Flush-Mounted Spherical Disc Valves Reduce Blender Discharge “Dead Space”

Flush-mounted spherical disc valves help reduce blender discharge dead space by matching the closed disc to the vessel’s inner contour. This reduces the pocket where material can collect above a recessed discharge valve.

For processors handling bulk materials, solids, powders, or slurries, the discharge connection deserves careful attention. Valve selection should consider both material flow and how the valve fits the blender. Optimizing equipment design is essential to improving product quality and operational efficiency.

What Is Blender Discharge Dead Space?

Dead space is an area where material collects instead of moving with the rest of the batch. In ribbon and paddle blenders, this can occur between the mixing chamber and a recessed discharge valve, often because geometries don't match between U-shaped or cylindrical vessels and the attached discharge nozzles or flanges. These shape and alignment inconsistencies interrupt the flow path and create zones that hinder efficient product movement.

Material trapped in that pocket may remain outside the main mixing zone, leading to flow blockages, uneven mixing, and increased downtime for cleaning and maintenance.

Why Does Discharge Valve Placement Matter?

A valve mounted close to the blender may still leave a cavity below the vessel wall. Flush mounting addresses the shape of that connection, rather than distance alone.

Reducing this pocket can help limit retained product. However, discharge performance also depends on the material, vessel geometry, and operating conditions.

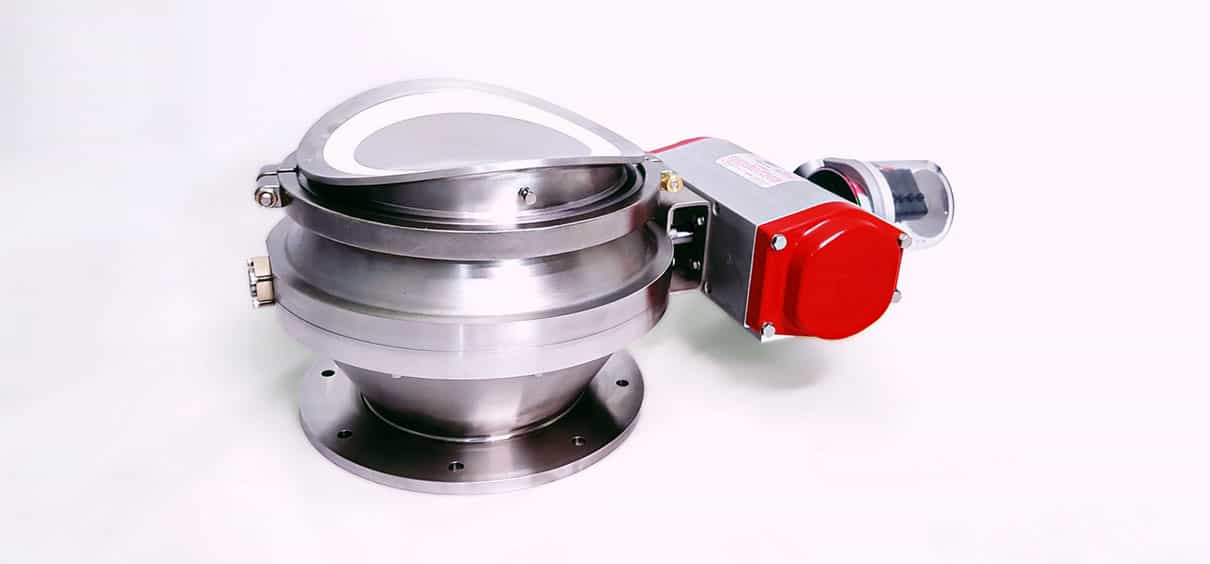

How Does a Flush-Mounted Spherical Disc Valve Work?

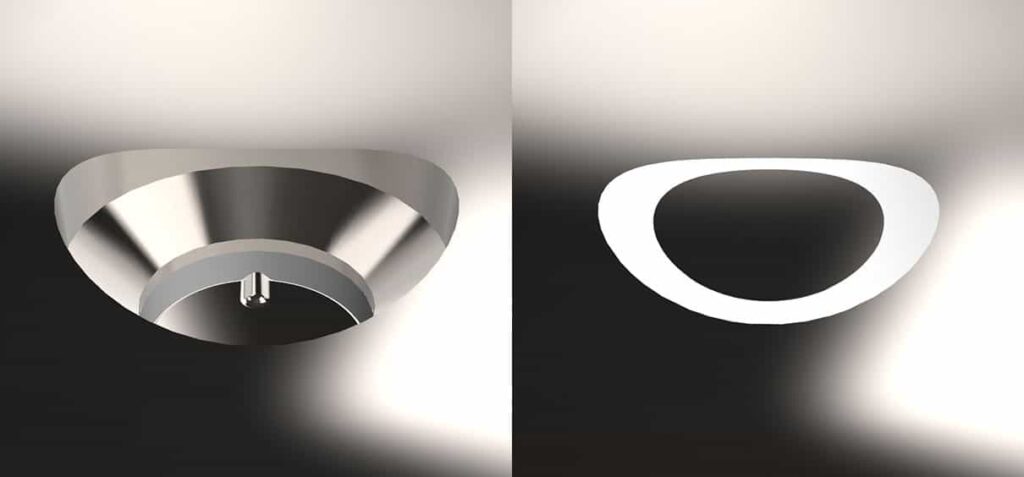

The disc is shaped to follow the blender’s inner surface when closed. During operation, it rotates between the closed and open positions.

The disc’s travel must be checked against the ribbon or paddles. Where interference is possible, position sensing and interlocks must coordinate valve and mixer movement.

What Should Engineers Review Before Selecting a Valve?

Material and Operating Conditions

While low-viscosity liquids may flow freely due to their ability to move with minimal resistance, high-viscosity slurries or powder mixtures are more prone to bridging and buildup in these areas. Over time, this can result in hardened residues, contamination between batches, and even equipment malfunction.

Start with the product being processed. Fine powder, abrasive granules, and thick slurry can require different valve configurations.

Provide:

  • Material name and flow characteristics
  • Operating pressure and temperature
  • Required discharge rate
  • Abrasion and corrosion concerns
  • Cleaning and sanitary requirements

Valve Materials and Seals

GEMCO spherical disc valves offer body, seat, and connection options for different applications. Selection should account for the process chemistry, wear, temperature, and required shutoff performance.

The spherical disc design also uses a wiping action at the sealing surface to help clear material from the sealing area.

Blender Geometry and Installation

For an existing blender, provide vessel drawings and discharge connection dimensions. Engineering review should establish whether the current connection can be used or needs modification.

Include mixer clearances and available installation space. A retrofit should be assessed before choosing a valve size or mounting arrangement.

What Information Should You Send With an Inquiry?

A useful application review starts with a clear description of the problem.

Share:

  • Where material collects
  • When buildup occurs
  • How operators currently remove it
  • How much product remains after discharge, if measured
  • The time required for cleaning and changeovers
  • Photos or drawings of the discharge area

This information helps the engineering team evaluate the connection and recommend an appropriate configuration.

Discuss Your Blender Discharge Application With GEMCO Valve.

GEMCO Valve, part of Strahman Group, offers custom-engineered spherical disc valves for powders, bulk solids, and slurries.

Explore our pre-engineered or custom-engineered spherical disc valves or contact Strahman Group to discuss your material, blender geometry, and discharge requirements. Or, go this link here if you are ready to request a quote.

This article is an updated version of what was first published in Powder & Bulk Solids May 2025 issue.
