Heat Jacket

Sign into view price
CODE: SV600JACKNNHT AVAILABILITY: In stock
Model
Sign in to Buy

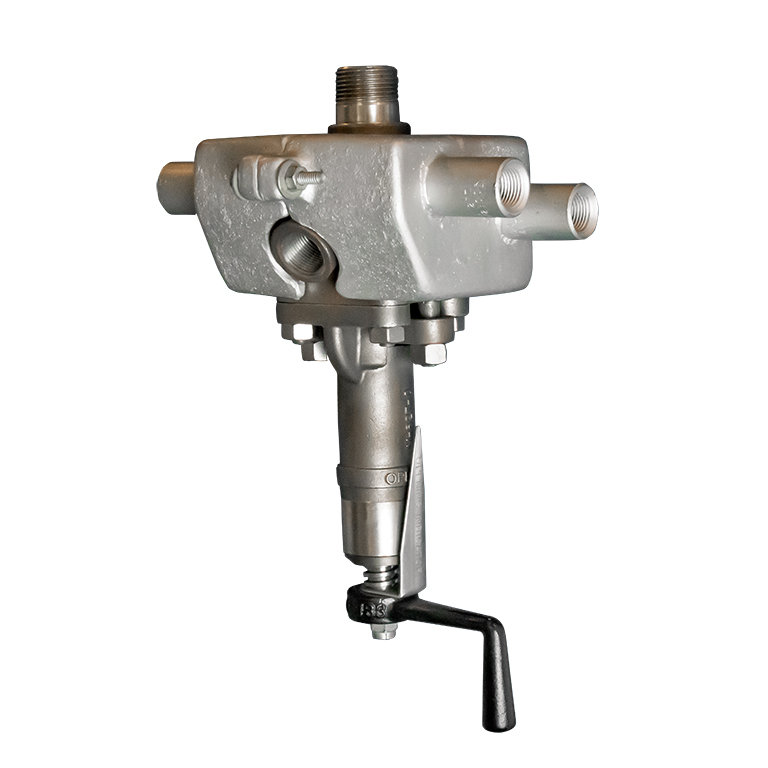

Strahman SV Heat Jacket 2PC Alt1
Strahman SV Heat Jacket 2PC Alt1

Description

Our Sample Valve Heat Jackets have a high heat transfer rate from the heating medium to the process. Strahman Heat Jackets are bolt-on, custom-molded to fit the specific valve body perfectly to eliminate the risk of heat loss, maintain the fluidity of the media during the process, and minimize air gaps. It is also more compact and efficient than weld-on jackets. And, when the sample valve requires removal or servicing, the heat jacket can stay in place which results in less downtime and labor.

Heat jackets for flanged sample valve models envelope the flange to minimize any exposed surface area where cooling might occur. Jackets for flanged valves along with weld-on styles are available by special request. Contact Us today or more information.

Heat Jacket Features:

  • Two-piece, bolt-on model is cast to conform to our standard Sample Valve body

  • Aluminum alloy body, double-wall design eliminates the possibility of cross contamination; the heating fluid is isolated from the process and vice versa

  • 1/2" FNPT x NPT with NPT Port

  • Maximum 300 psi and 600° F

  • Available for models SV500 through SV800; For Heat Jackets for the SV900 and SV1000 models, Contact Us for more information

  • Custom models for flanged valves and weld-on jackets are available at customer's request

  • Accessories for our Heat Jackets include insulation blankets, jumper connections, and heat transfer cement


Strahman serves a wide variety of industries and process applications, and we understand there are needs for custom designs to fit custom applications. If you don’t see your process or application, chat with us, or Contact Us, and we would be happy to work with you on a custom design to meet your specific requirements.


NOTE:  The image above is representative of the products in this series and while we try to be as accurate as possible, the product you receive may slightly differ depending on valve size. Please refer to data sheets and technical drawings for dimensions.


WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov
