M-5144TGHE

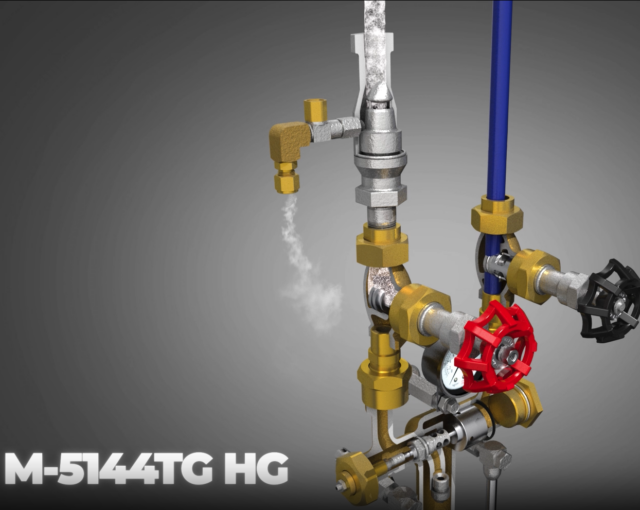

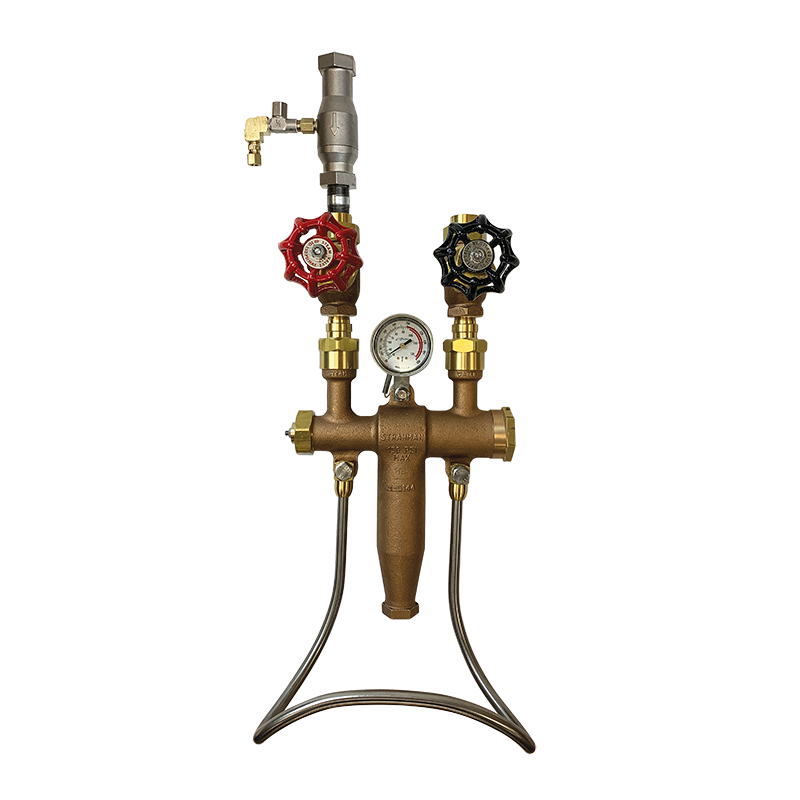

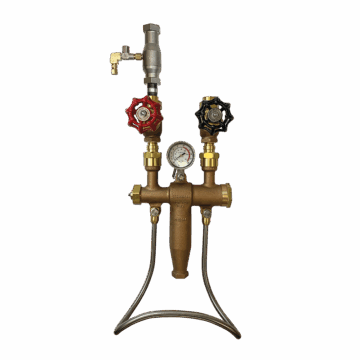

The Strahman M-5144TGHE Bronze Washdown Station is a high-efficiency steam-and-cold-water mixing station modeled on the standard M-5000TG. This unit, however, is a low-pressure system ideal for industrial washdown where varying water pressures throughout a plant exist and a wider range of adjustable pressure is desired, or where a low-flow nozzle is preferred. With this unit, you can expect to reduce costs for water, sewage, and energy utilities by improving efficiency and reducing water usage — saving up to 20%.

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-5144TGHE with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.

Mixing Unit Hose Station Features

• Auto-shut-off if the cold water supply falls below 20 PSI
• Available with optional Recessed Wall Box
• Available with optional Pedestal Mount
• Available with optional Wall Mounting Plate

Inputs and Outputs

• Required Steam Pressure: 40 psi to 150 psi
• Required Cold Water Pressure: 40-80 psi (Maximum of 150 psi)
• Maximum Output Water Temperature: 200º F (93ºC)
• Output Flow: 3-1/4 to 6 GPM

Product Specifications

• Material: Bronze
• Connections: 3/4″ NPT
• Temperature Gauge
• Direct Diffuse® Steam Trap
• Blending Chamber
• Stainless Steel Hose Rack

NOTE:  The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on your selection. Please refer to data sheets and technical drawings for dimensions.
