M-5000TS

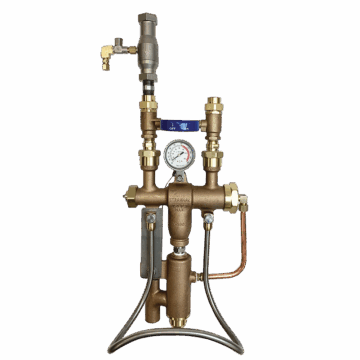

The Strahman M-5000TS Bronze Thermostatically Controlled Washdown Station lets you combine steam and cold water to efficiently produce hot water without the safety concerns typically associated with steam use. The unit is equipped with several important safety features that limit the water temperature to 200°F. It automatically compensates for water pressure fluctuations to maintain the desired water temperature, and the thermostatically controlled safety-shut-off prevents overheating.

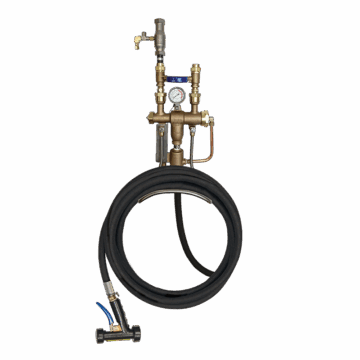

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-5000TS with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.

Mixing Unit Hose Station Features

• Thermostatically designed safety-shut-off if the cold water supply is interrupted
• Available with optional Recessed Wall Box

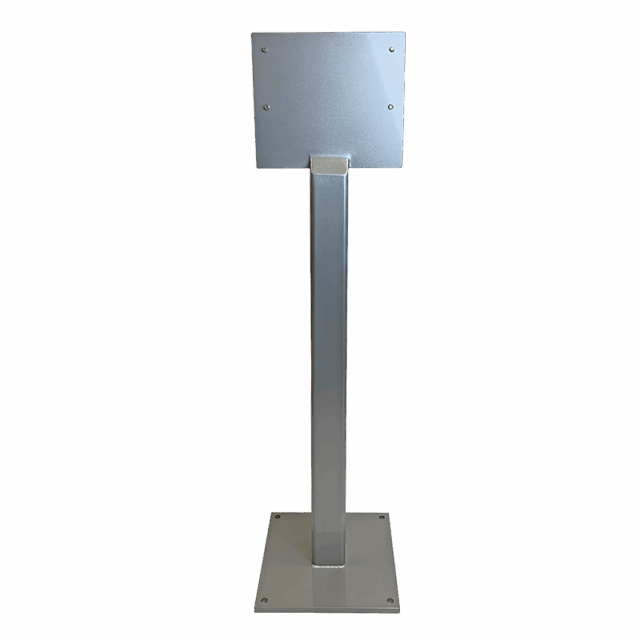

• Available with optional Pedestal Mount
• Available with optional Wall Mounting Plate

Inputs and Outputs

• Required Steam Pressure: 80 psi to 150 psi
• Required Cold Water Pressure: 50-80 psi (Maximum of 150 psi)
• Maximum Output Water Temperature: 200º F (93ºC)
• Output Flow: 5 to 7 GPM

Product Specifications

• Material: Bronze
• Connections: 3/4″ NPT
• Temperature Gauge
• Direct Diffuse® Steam Trap
• Blending Chamber
• Stainless Steel Hose Rack

NOTE:  The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on your selection. Please refer to data sheets and technical drawings for dimensions.
