M-5700TG

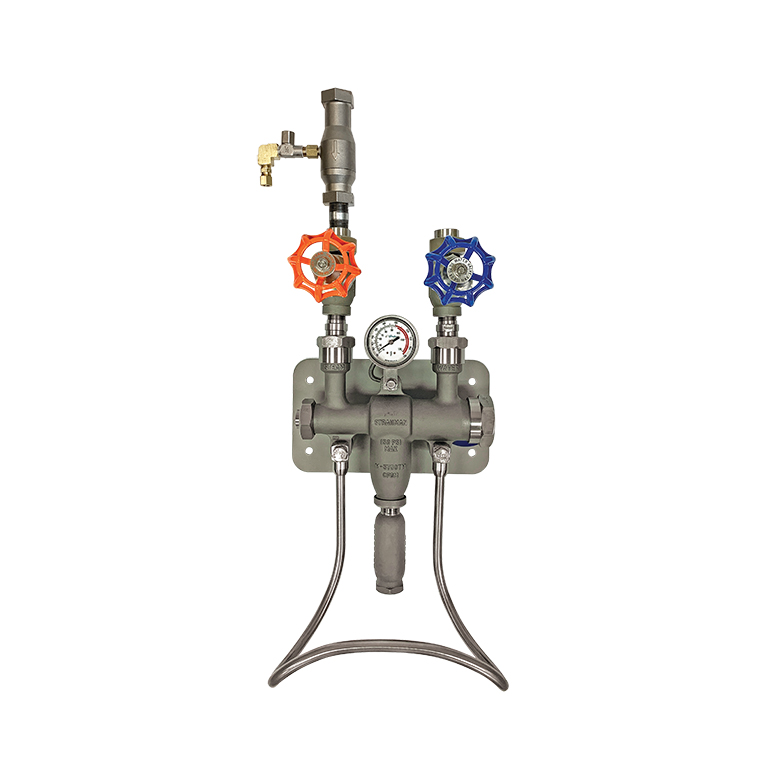

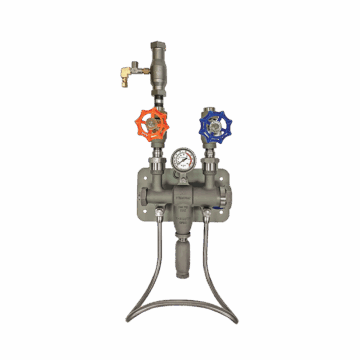

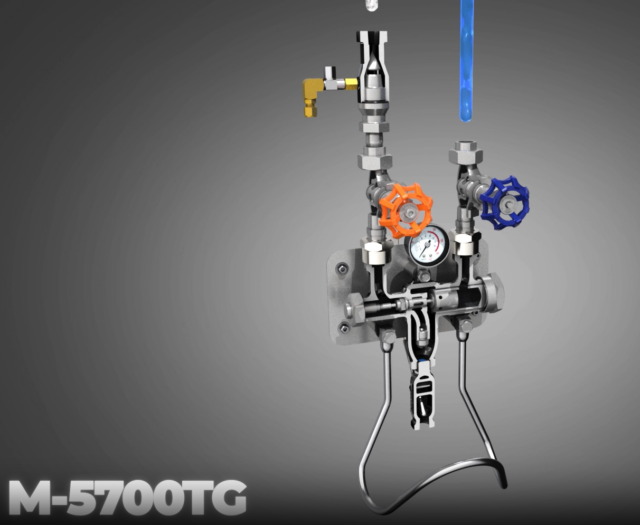

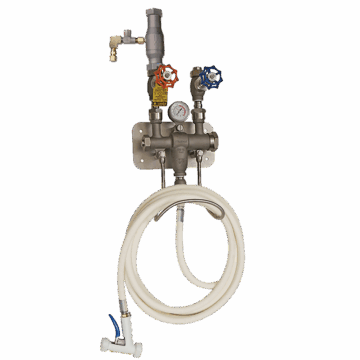

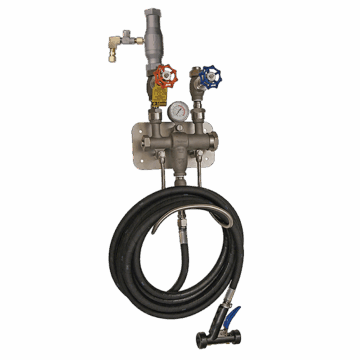

The Strahman M-5700TG Stainless Steel Washdown Station produces instant hot water from a steady supply of steam and cold water. The unit is equipped with our patented Direct Diffuse® Steam Trap and features a specially designed blending chamber that thoroughly mixes steam and cold water, producing consistent temperature wash water.  As an added safety measure, if the cold-water supply falls below 50 PSI, these units automatically shut off their steam supply.

For optimal cleaning and sanitation performance, Strahman recommends a complete washdown station that includes the M-5700TG with a Strahman hose assembly and our heavy-duty spray nozzles to ensure maximum efficiency and safety. When used together, your facility may realize cost savings from lower water usage enabled by our water saver nozzles.

Product Features

• Auto-shut-off if the cold water supply falls below 50 PSI

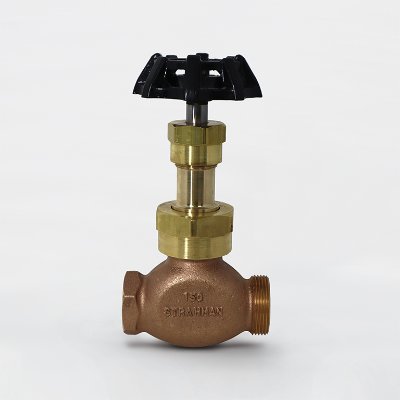

• Available with top entry (shown) or angle “back entry” Globe Valve
• Available with optional Recessed Wall Box

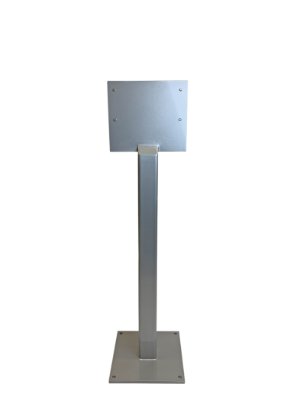

• Available with optional Pedestal Mount

Inputs and Outputs

• Required Steam Pressure: 80 psi to 150 psi
• Required Cold Water Pressure: 50-80 psi (Maximum of 150 psi)
• Maximum Output Water Temperature: 200º F (93ºC)
• Output Flow: 4-1/2 to 7 GPM

Specifications

• Material: Stainless steel (lead-free)
• Connections: 3/4″ NPT
• Temperature Gauge

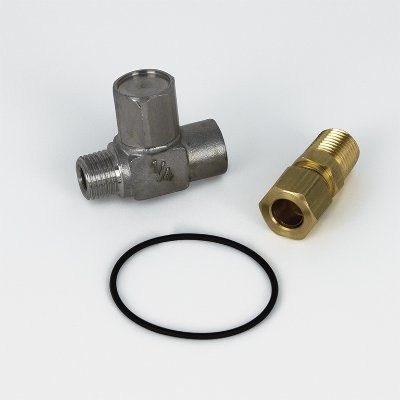

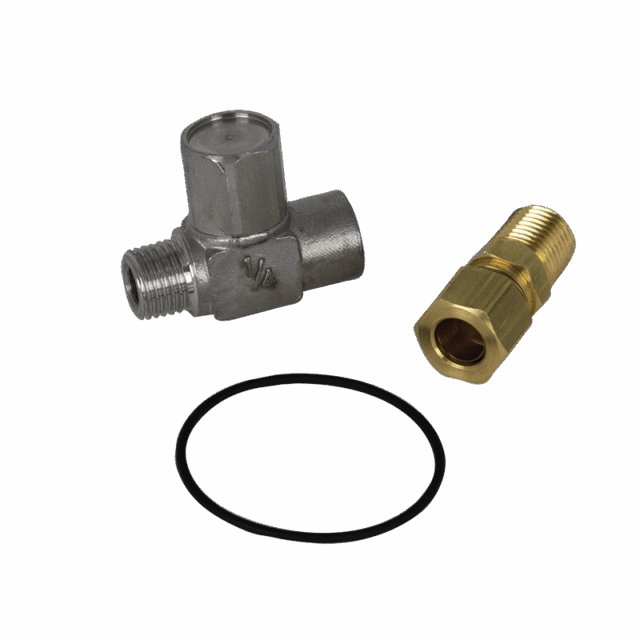

• Direct Diffuse® Steam Trap
• Blending Chamber
• Stainless steel wall mount plate
• Stainless steel hose rack

NOTE:  The image above is representative of the products in this series, and while we try to be as accurate as possible, the product you receive may slightly differ depending on your selection. Please refer to data sheets and technical drawings for dimensions.
